A221N4
A221N4

A221N4

SKU DOR5969089
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.79 CAD - $9.79 CAD
$9.79 CAD
$9.79 CAD - $9.79 CAD
$9.79 CAD

Sold in packs of: 1

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size 4 with 1/8" drill diameter, a body diameter of 5/16" and an overall length of 2.1/8", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A221N4
GradeBright
Product Number5969089
Product FamilyA221

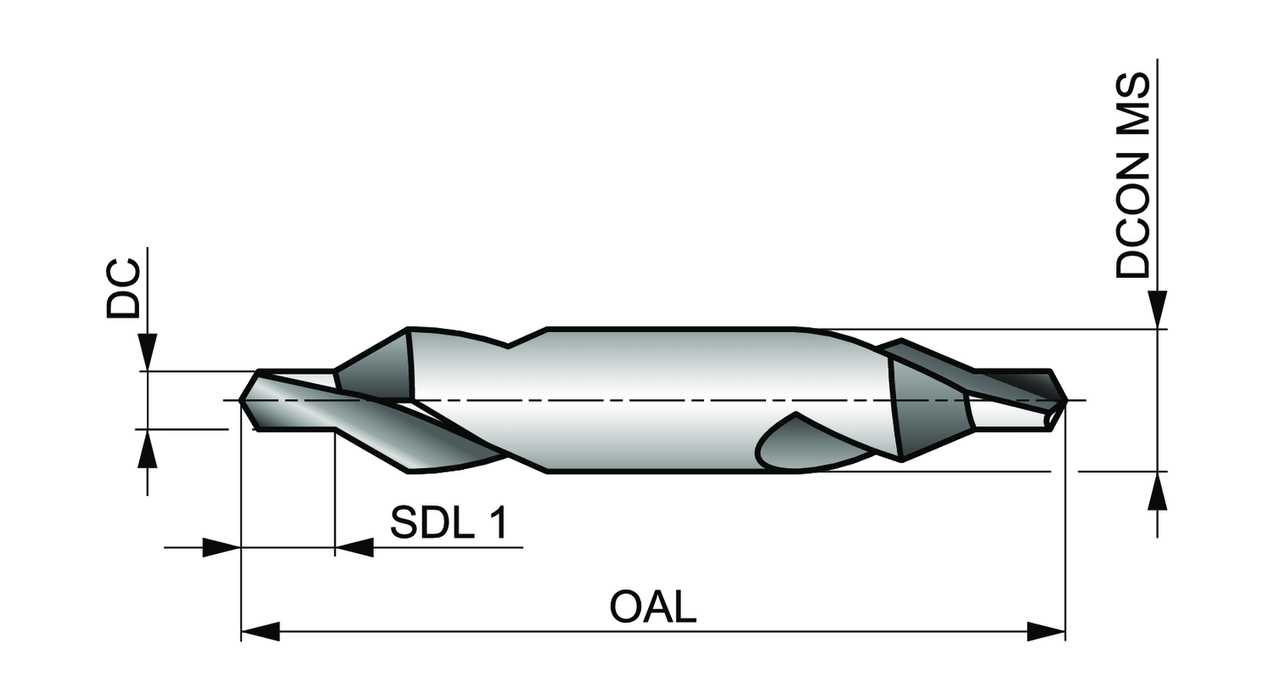

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number241899
EAN7320760241899
File Type Download
A221N4 — Line Drawing PDF Download
