A221N8
A221N8

A221N8

SKU DOR5969115
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.61 CAD - $45.61 CAD
$45.61 CAD
$45.61 CAD - $45.61 CAD
$45.61 CAD

Sold in packs of: 1

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size 8 with 5/16" drill diameter, a body diameter of 3/4" and an overall length of 3.1/2", according to ANSI standard to produce form A centre holes, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A221N8
GradeBright
Product Number5969115
Product FamilyA221

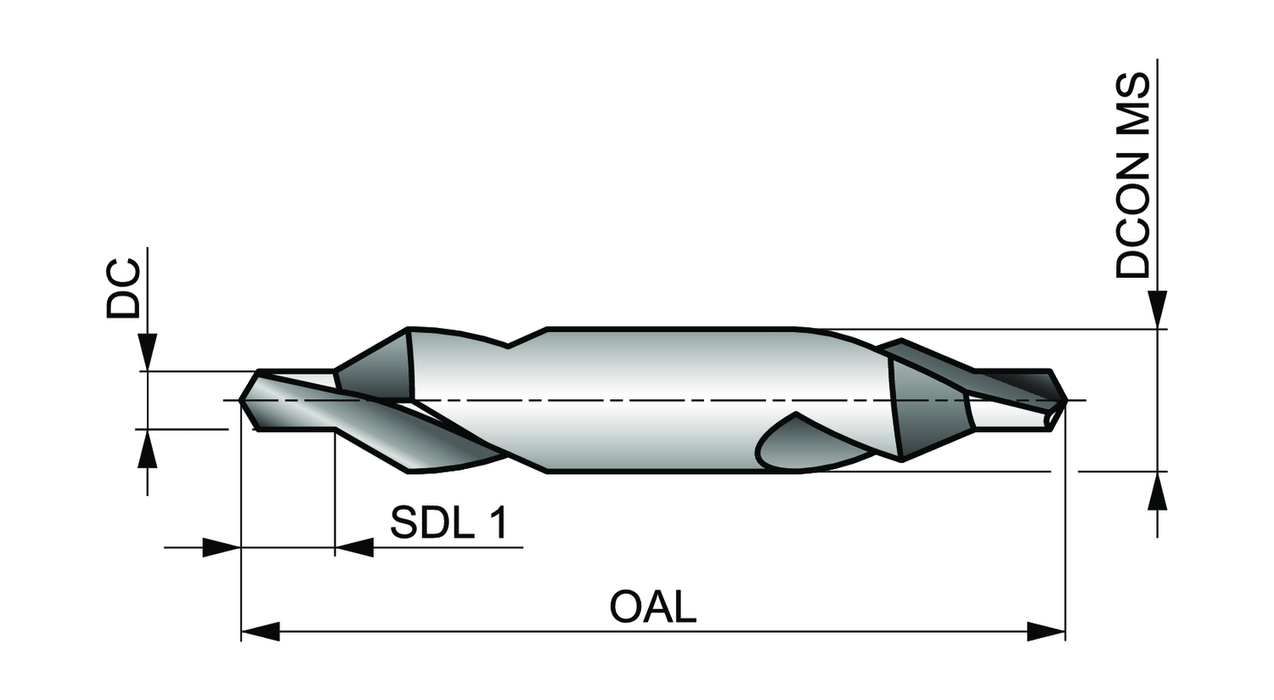

Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional5/16
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number241936
EAN7320760241936
File Type Download
A221N8 — Line Drawing PDF Download
