A218N4
A218N4

A218N4

SKU DOR5969147
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.19 CAD - $11.19 CAD
$11.19 CAD
$11.19 CAD - $11.19 CAD
$11.19 CAD

Sold in packs of: 1

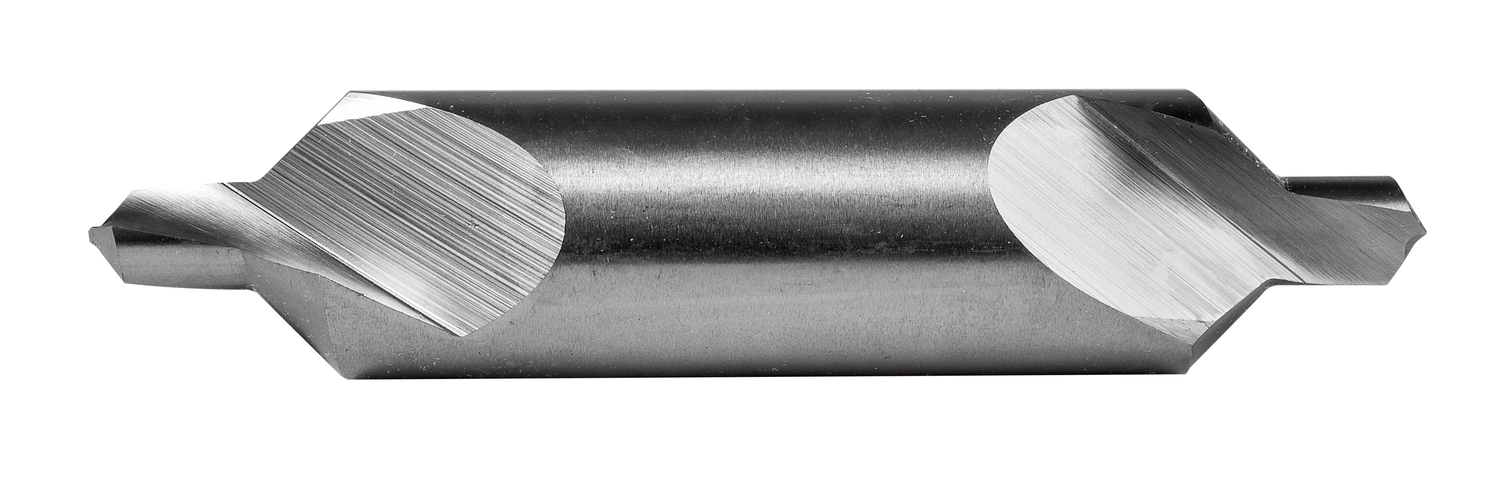

Centre drill (combined drill and countersink) with 90° straight conical form, double ended and cylindrical body, size 4 with 1/8" drill diameter, a body diameter of 5/16" and an overall length of 2.1/8", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A218N4
GradeBright
Product Number5969147
Product FamilyA218

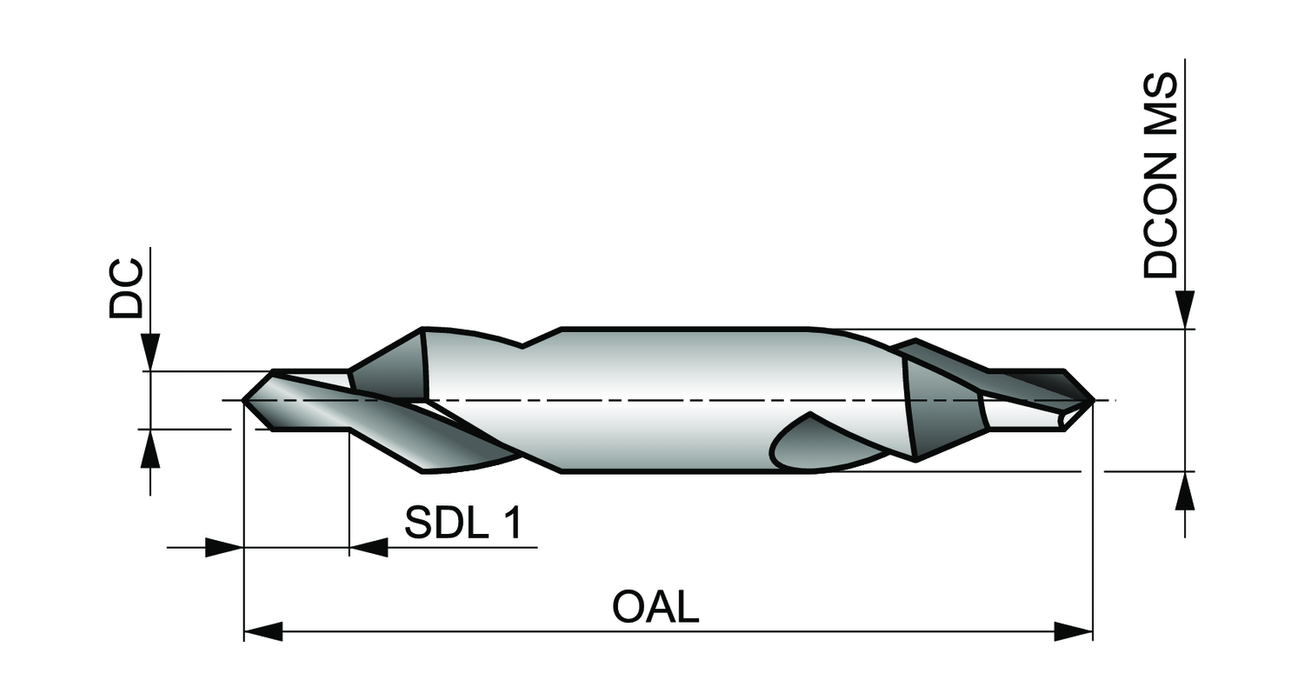

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)0.7031"
Flute Length — mm (LCF)17.86 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239322
EAN7320760239322
File Type Download
A218N4 — Line Drawing PDF Download
