SKU DOR5969157
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.54 CAD - $7.54 CAD
$7.54 CAD
$7.54 CAD - $7.54 CAD
$7.54 CAD

Sold in packs of: 1

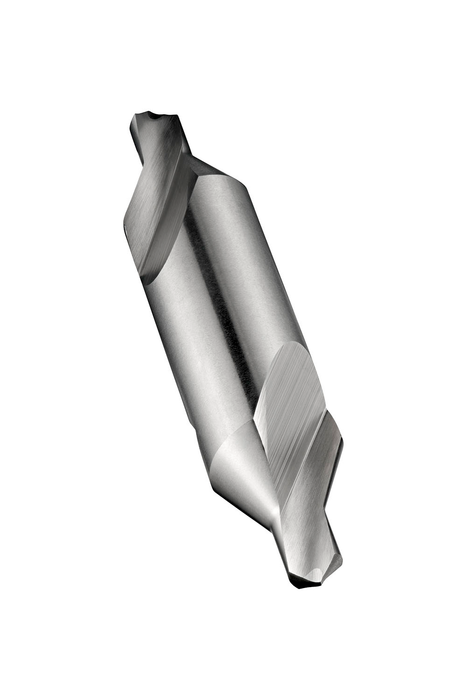

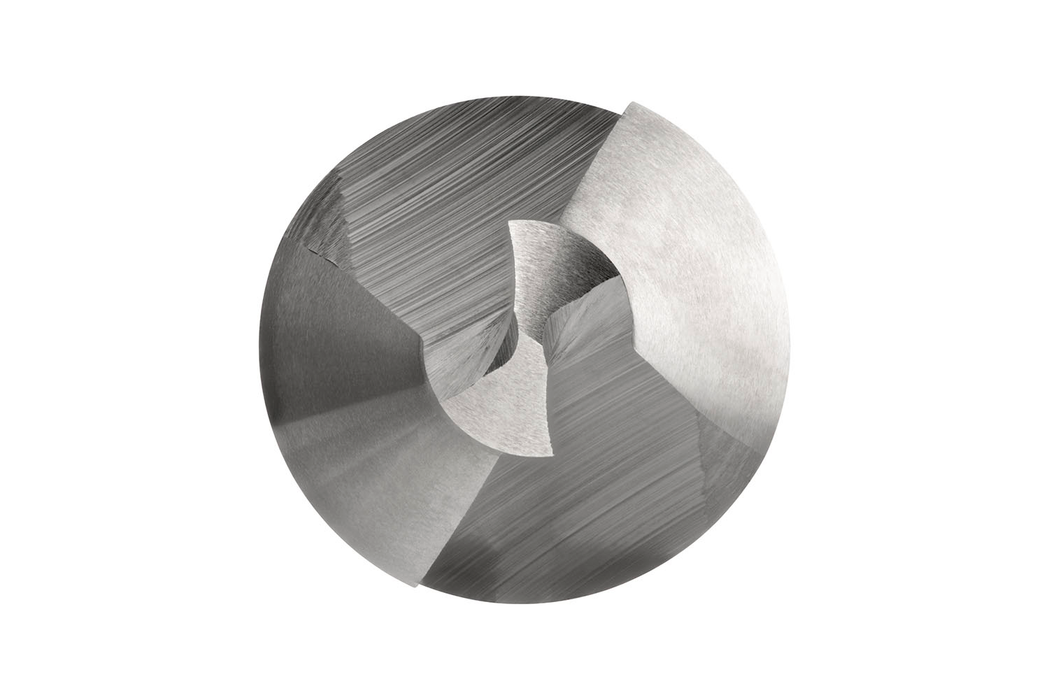

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS1 with 3/64" drill diameter, a body diameter of 1/8" and an overall length of 1.1/2", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS1
GradeBright
Product Number5969157
Product FamilyA225

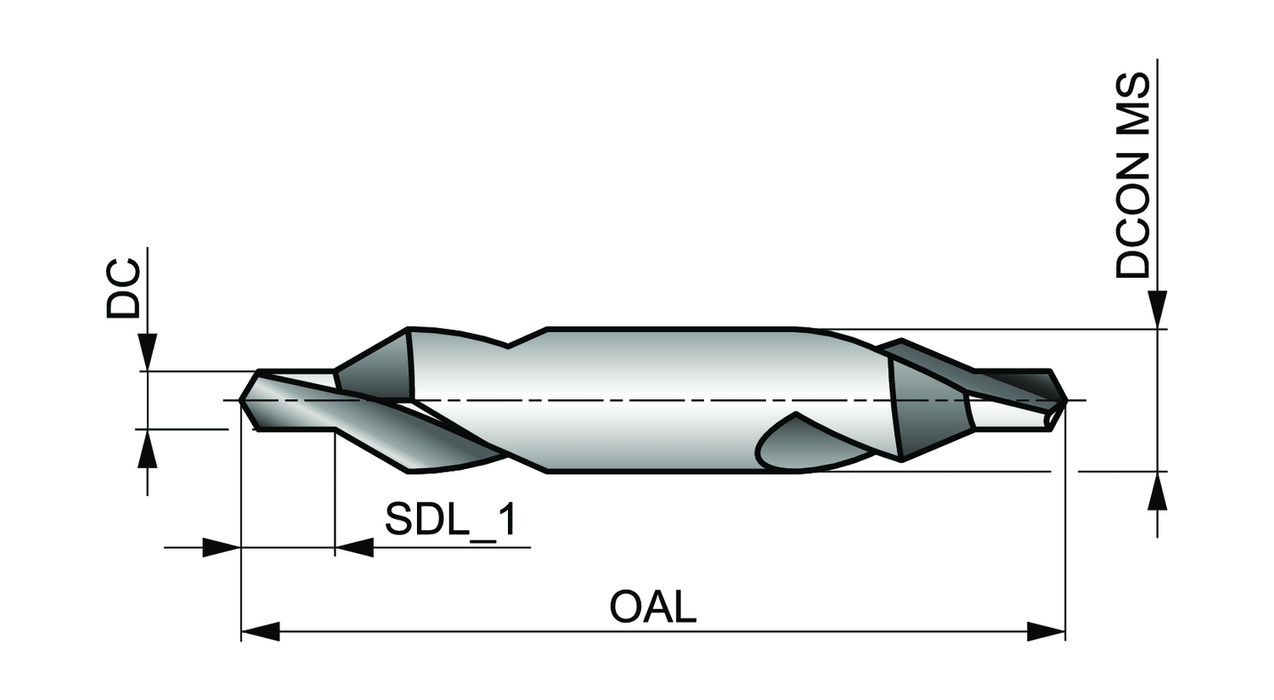

Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Cutting Diameter — Fractional3/64
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardBS 328
Reference Numbers
EDP Number172988
EAN7320760172988
File Type Download
A225BS1 — Line Drawing PDF Download
