A225BS2
A225BS2
A225BS2
A225BS2

A225BS2

SKU DOR5969160
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.30 CAD - $8.30 CAD
$8.30 CAD
$8.30 CAD - $8.30 CAD
$8.30 CAD

Sold in packs of: 1

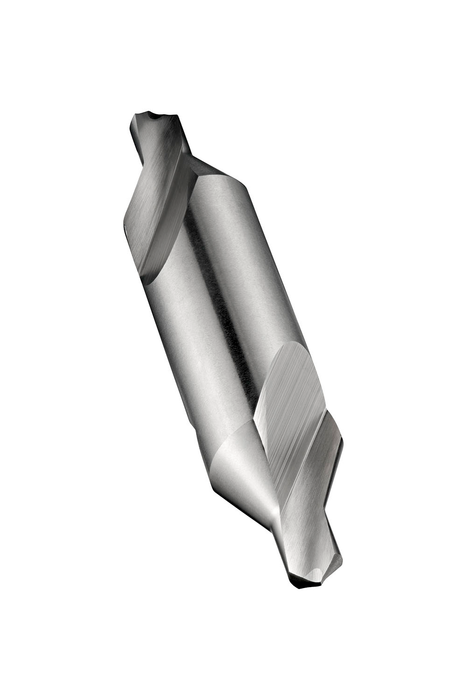

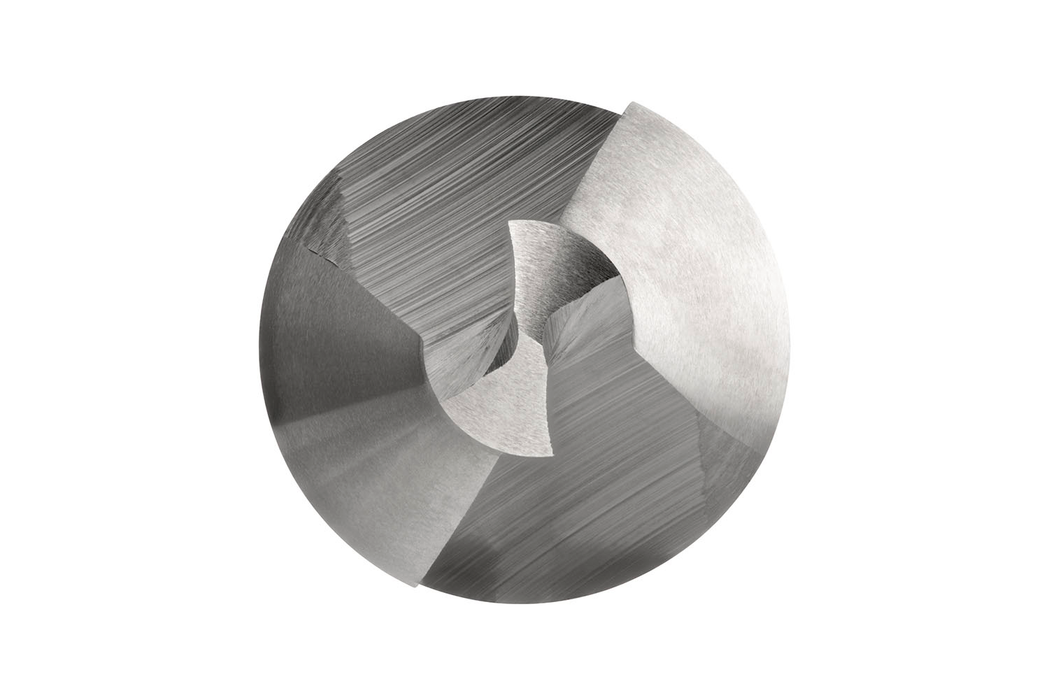

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS2 with 1/16" drill diameter, a body diameter of 3/16" and an overall length of 1.3/4", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS2
GradeBright
Product Number5969160
Product FamilyA225

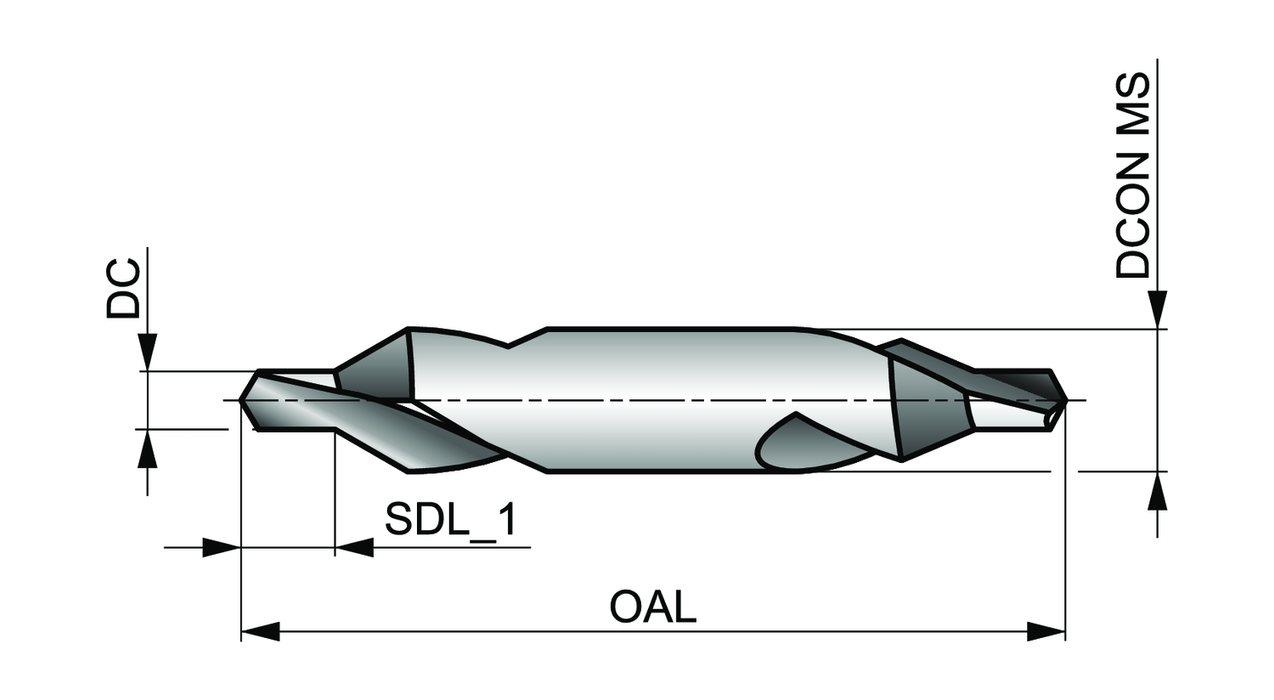

Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardBS 328
Reference Numbers
EDP Number172995
EAN7320760172995
File Type Download
A225BS2 — Line Drawing PDF Download
