SKU DOR5969163
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.26 CAD - $10.26 CAD
$10.26 CAD
$10.26 CAD - $10.26 CAD
$10.26 CAD

Sold in packs of: 1

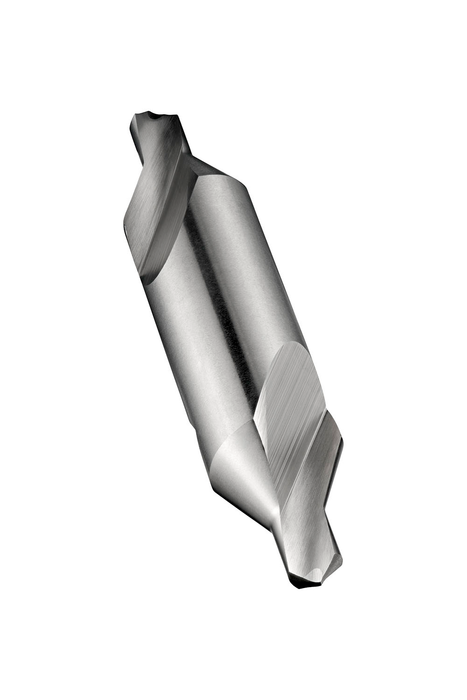

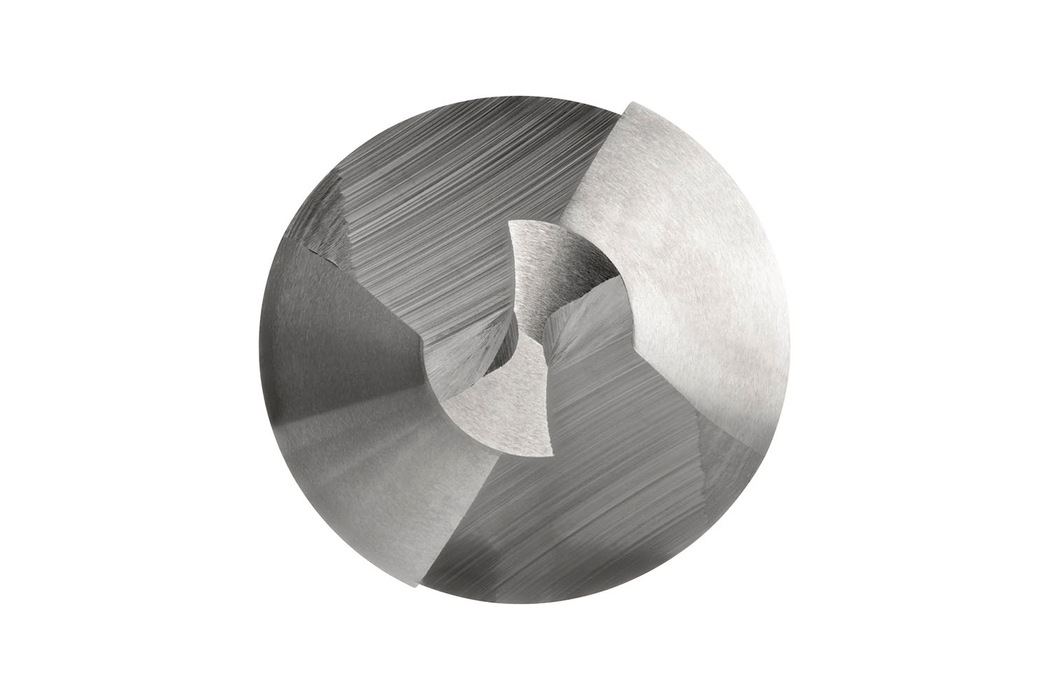

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS3 with 3/32" drill diameter, a body diameter of 1/4" and an overall length of 2", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS3
GradeBright
Product Number5969163
Product FamilyA225

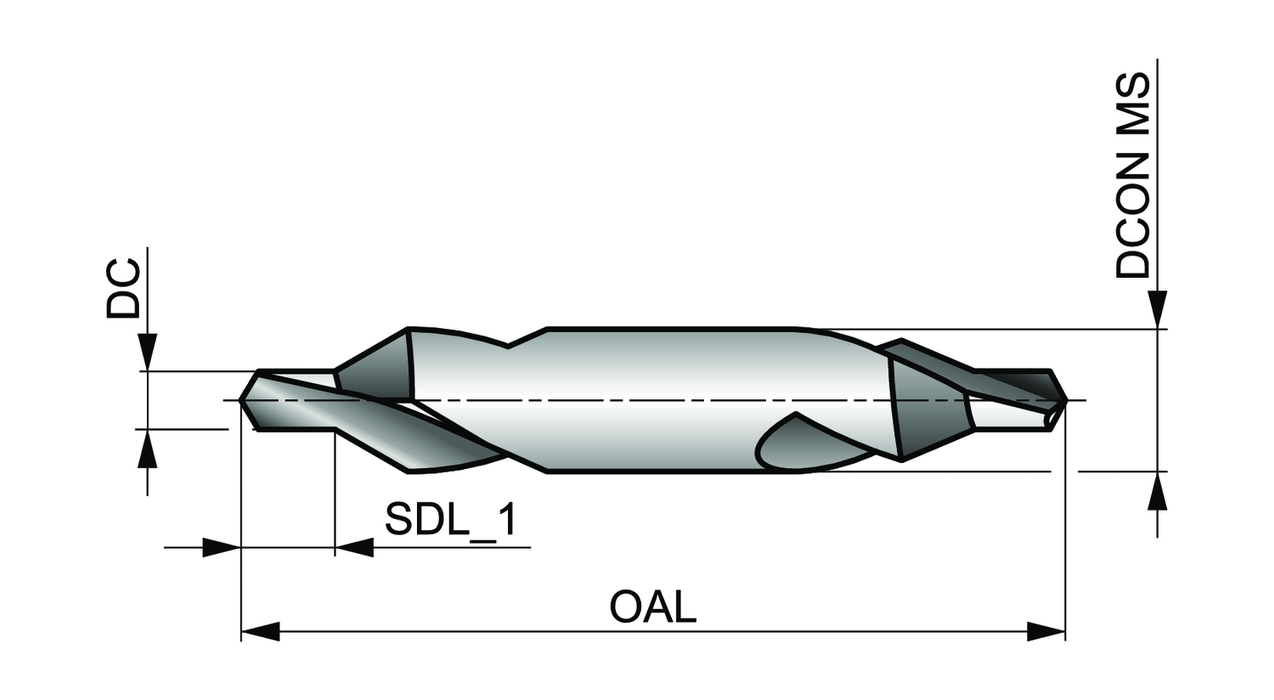

Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardBS 328
Reference Numbers
EDP Number173008
EAN7320760173008
File Type Download
A225BS3 — Line Drawing PDF Download
