A225BS4
A225BS4
A225BS4
A225BS4

A225BS4

SKU DOR5969166
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.31 CAD - $13.31 CAD
$13.31 CAD
$13.31 CAD - $13.31 CAD
$13.31 CAD

Sold in packs of: 1

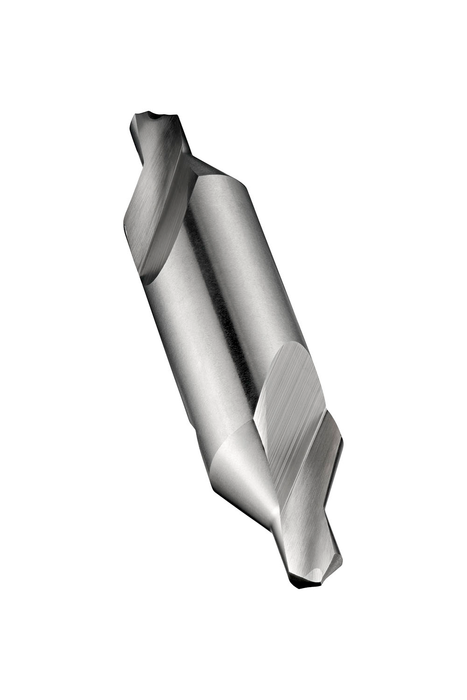

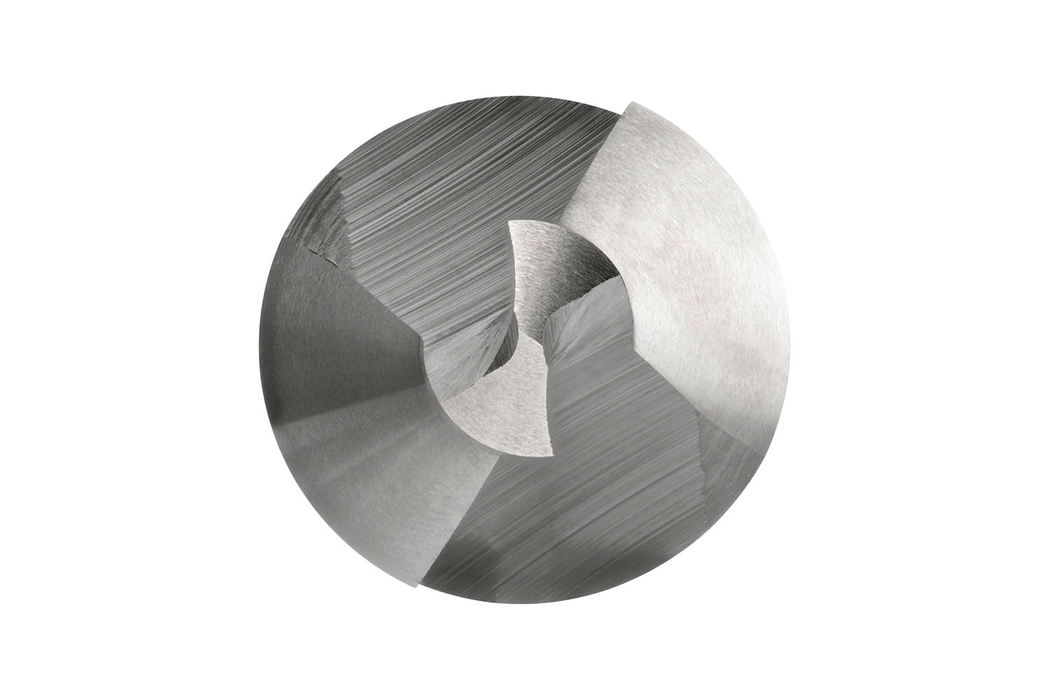

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS4 with 1/8" drill diameter, a body diameter of 5/16" and an overall length of 2.1/4", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS4
GradeBright
Product Number5969166
Product FamilyA225

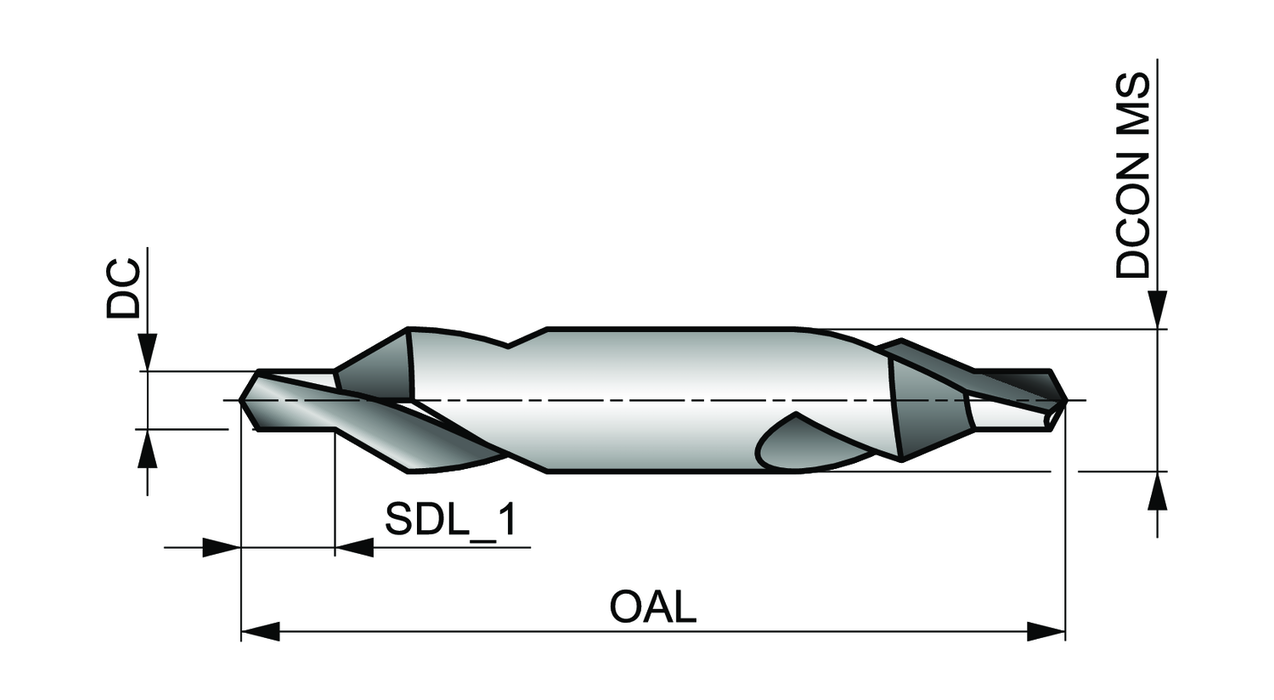

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardBS 328
Reference Numbers
EDP Number173015
EAN7320760173015
File Type Download
A225BS4 — Line Drawing PDF Download
