SKU DOR5969173
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.21 CAD - $58.21 CAD
$58.21 CAD
$58.21 CAD - $58.21 CAD
$58.21 CAD

Sold in packs of: 1

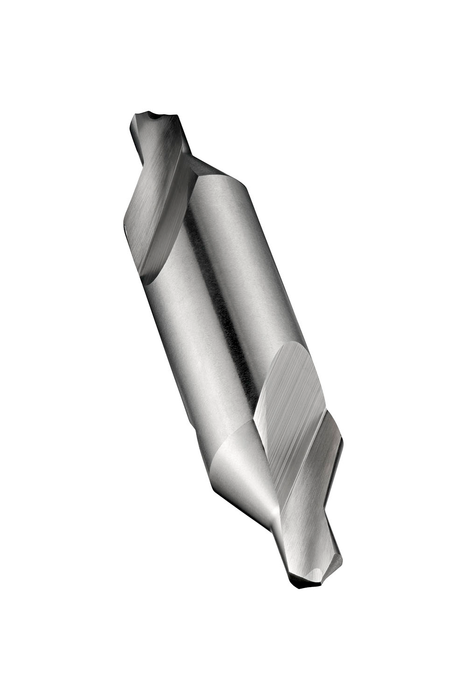

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS6 with 1/4" drill diameter, a body diameter of 5/8" and an overall length of 3", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A225BS6
GradeBright
Product Number5969173
Product FamilyA225
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardBS 328
Reference Numbers
EDP Number173046
EAN7320760173046
File Type Download

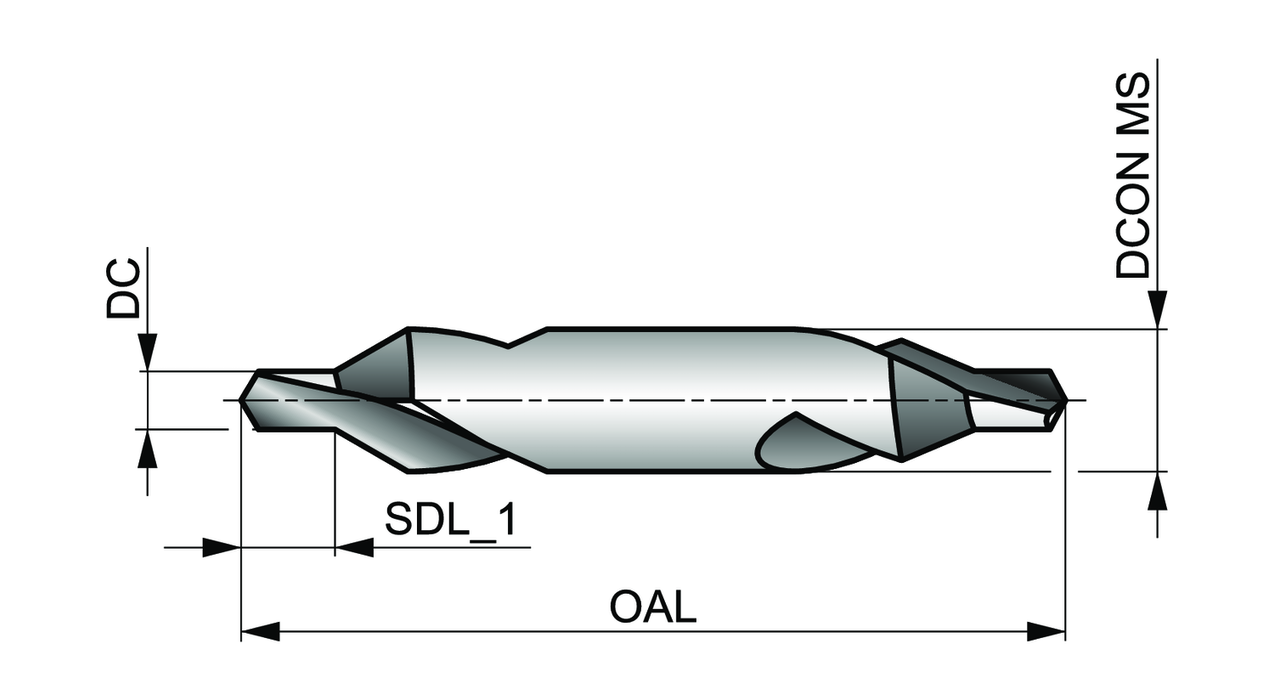

A225BS6 — Line Drawing PDF Download
