A218N7

A218N7

SKU DOR5969178
by Dormer Pramet
Primary Use: Possible Use:

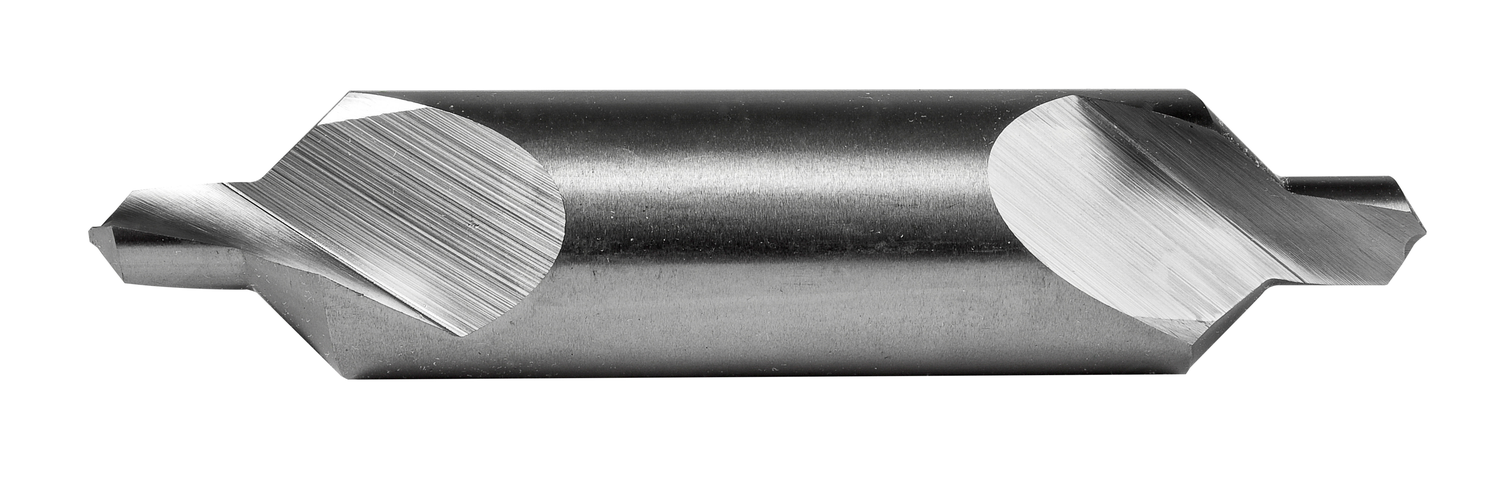

Centre drill (combined drill and countersink) with 90° straight conical form, double ended and cylindrical body, size 7 with 1/4" drill diameter, a body diameter of 5/8" and an overall length of 3.1/4", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$39.66 - $39.66
$39.66
$39.66 - $39.66
$39.66
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

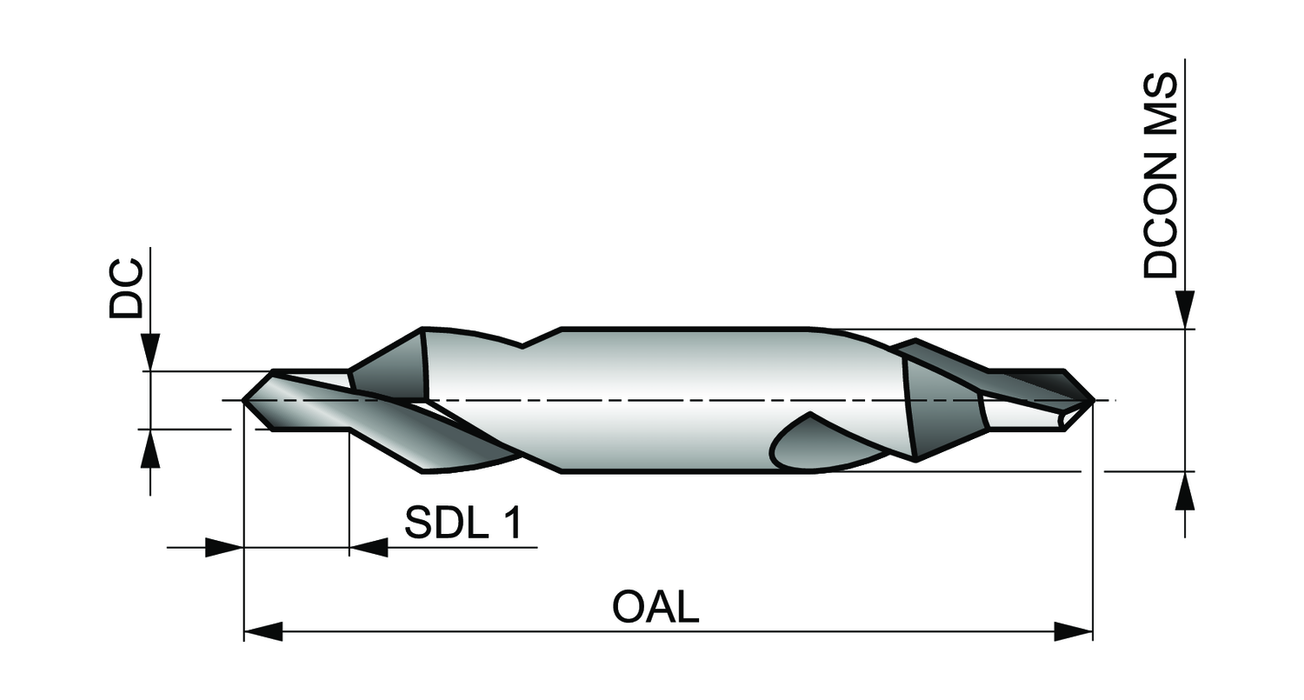

Material: HSS

Cutting Diameter - in (DC): 0.25

Cutting Diameter - mm (DC): 6.35

Drill Point Angle - deg: 120

Flute Length: 1.2031

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 3.25

Connetion Diameter: 0.625

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 239353

EAN: 7320760239353

MFG Part Number: 5969178
