A218N8
A218N8

A218N8

SKU DOR5969179
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.34 CAD - $55.34 CAD
$55.34 CAD
$55.34 CAD - $55.34 CAD
$55.34 CAD

Sold in packs of: 1

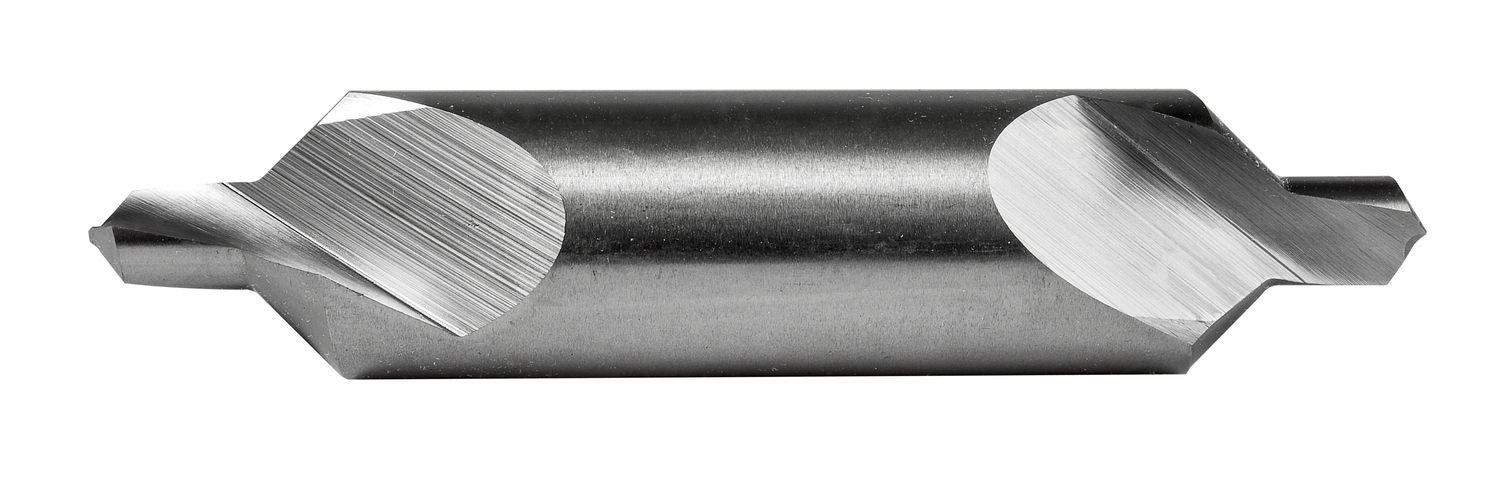

Centre drill (combined drill and countersink) with 90° straight conical form, double ended and cylindrical body, size 8 with 5/16" drill diameter, a body diameter of 3/4" and an overall length of 3.1/2", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A218N8
GradeBright
Product Number5969179
Product FamilyA218

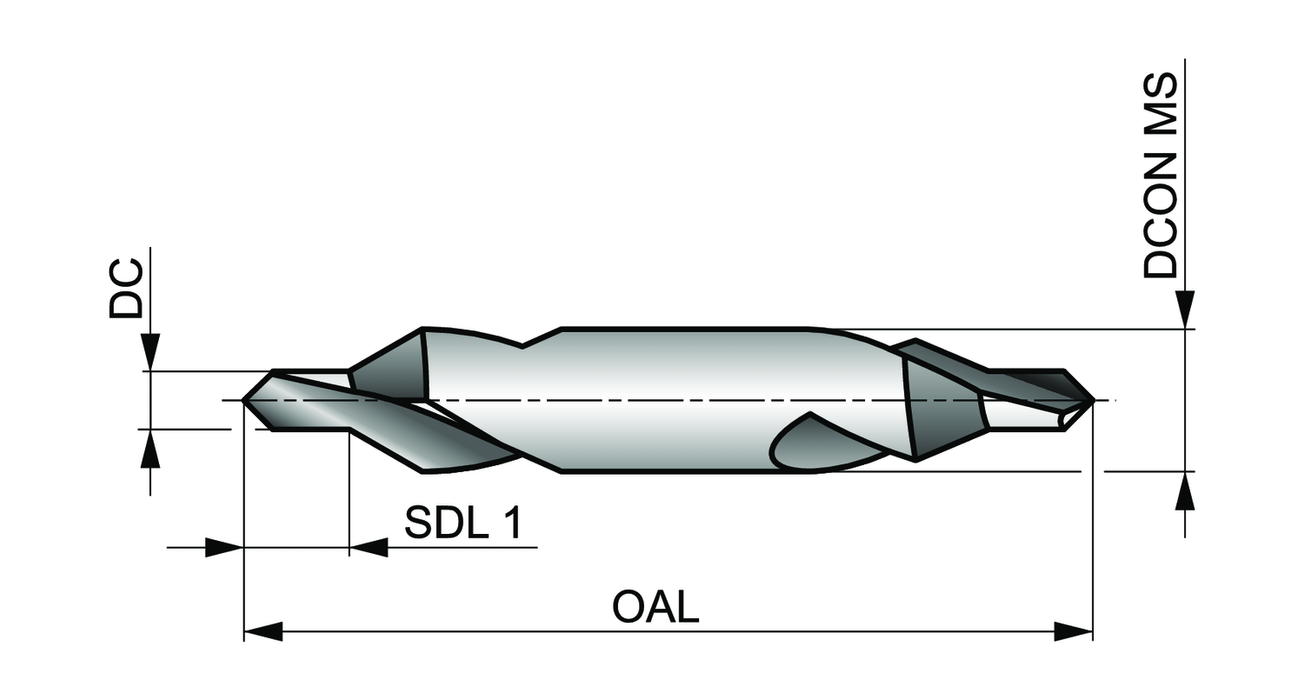

Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Flute Length — in (LCF)1.3438"
Flute Length — mm (LCF)34.13 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239360
EAN7320760239360
File Type Download
A218N8 — Line Drawing PDF Download
