SKU DOR5969233
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.74 CAD - $11.74 CAD
$11.74 CAD
$11.74 CAD - $11.74 CAD
$11.74 CAD

Sold in packs of: 1

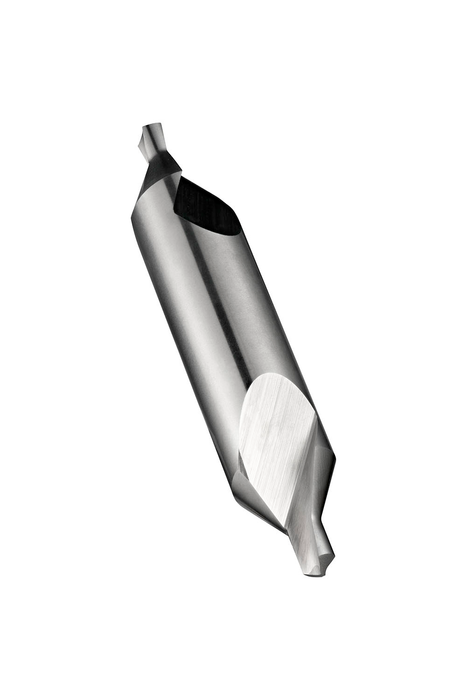

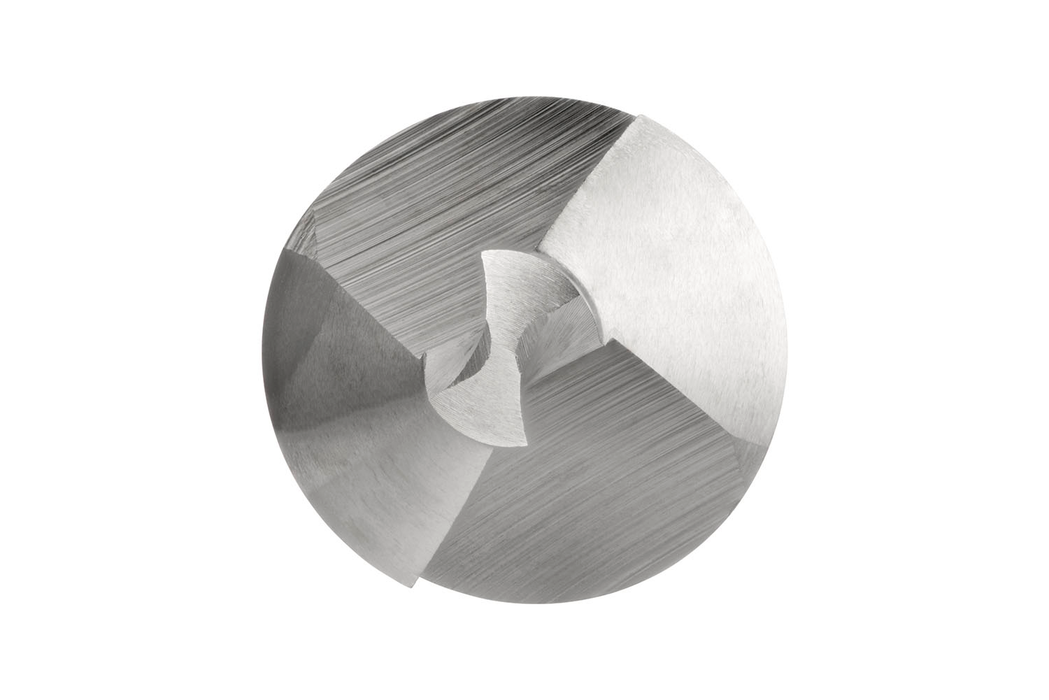

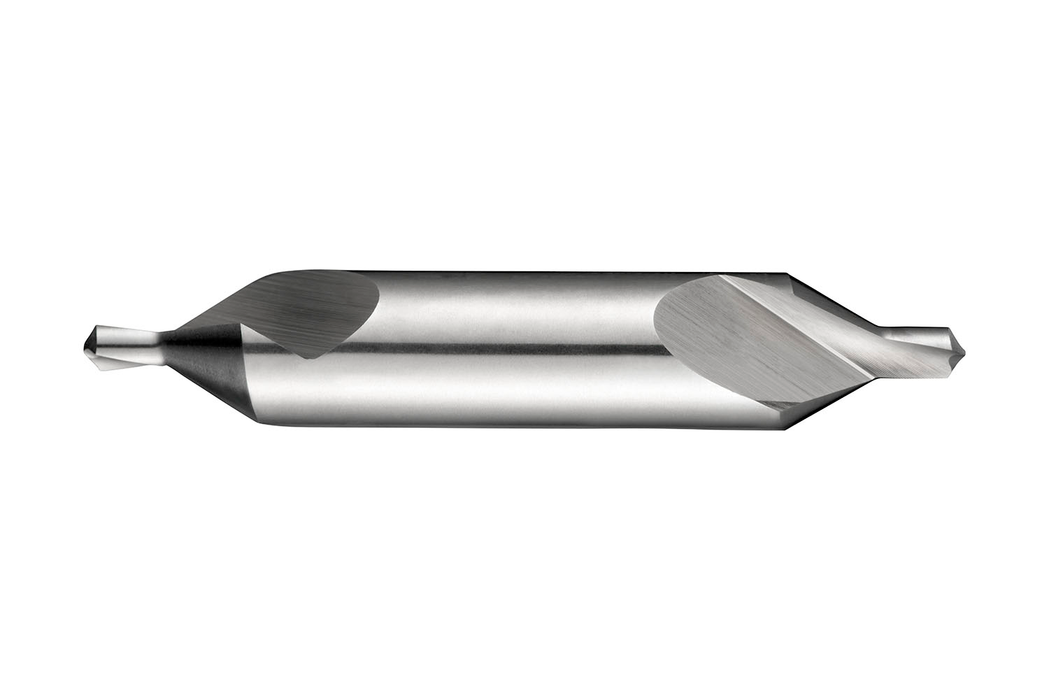

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.60mm drill diameter, a body diameter of 5.00mm and an overall length of 40mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2011.6X5.0
GradeBright
Product Number5969233
Product FamilyA201

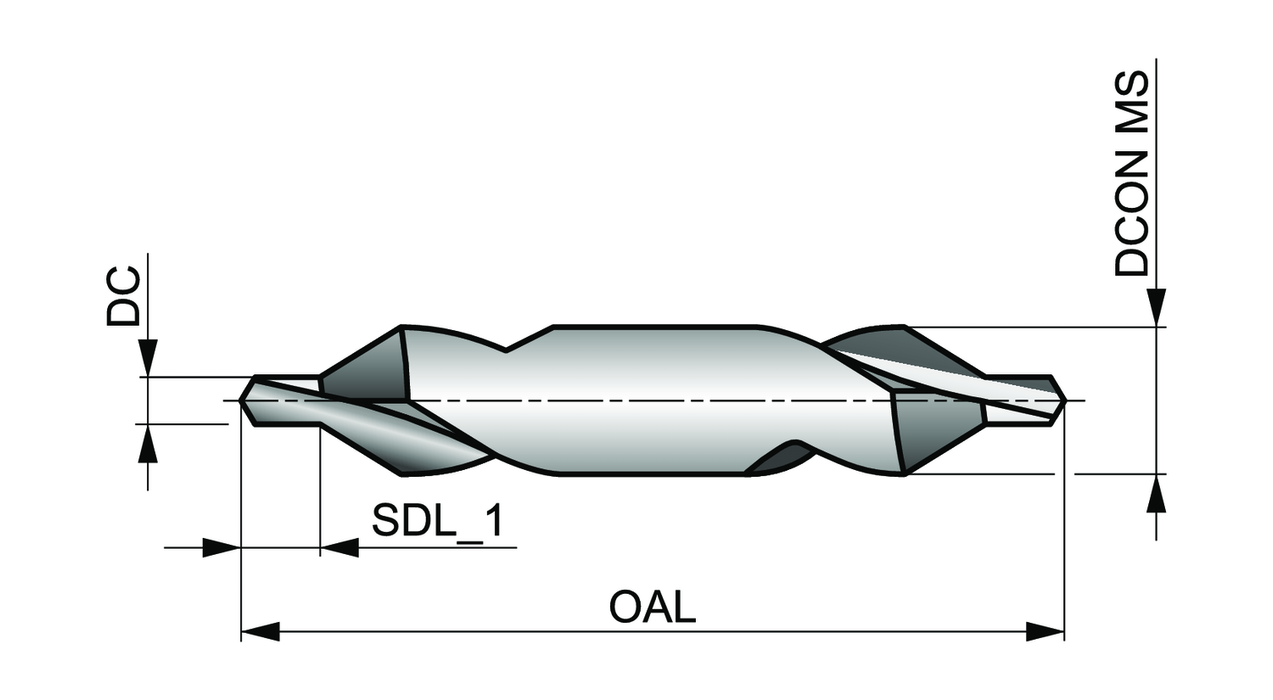

Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Drill Point Angle (SIG)122°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number215111
EAN7320760215111
File Type Download
A2011.6X5.0 — Line Drawing PDF Download
