A13023/32

A13023/32

SKU DOR5969253
by Dormer Pramet
Primary Use: Possible Use:

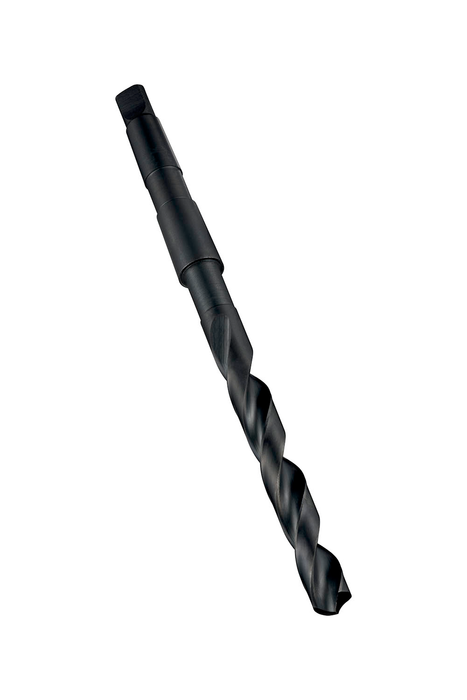

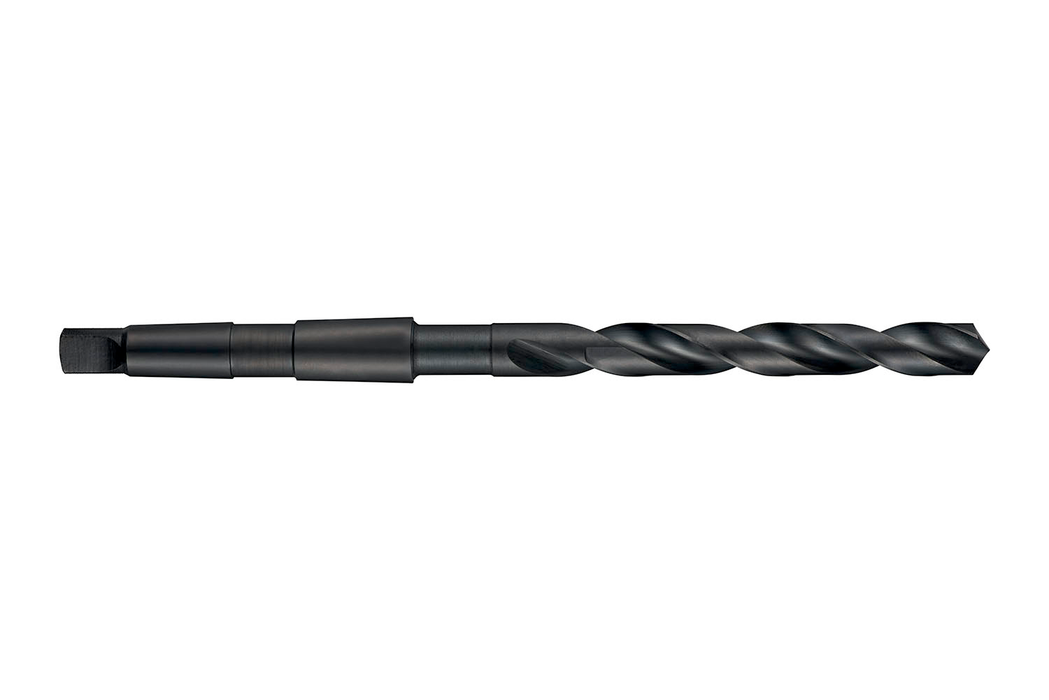

Jobber length drill with taper shank, diameter 0.7188" (23/32) with an overall length of 233mm and flute length of 135mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$109.27 - $109.27
$109.27
$109.27 - $109.27
$109.27
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.7188

Cutting Diameter - mm (DC): 18.26

Drill Point Angle - deg: 118

Flute Length: 5.315

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 9.1732

Tool Direction: Right

Shank: Morse Taper Shank

Fractional: 23/32

Grade: Steam Tempered

EDP: 23938

EAN: 7320760023938

MFG Part Number: 5969253
