A2101.25X3.15
A2101.25X3.15
A2101.25X3.15
A2101.25X3.15

A2101.25X3.15

SKU DOR5969337
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Sold in packs of: 1

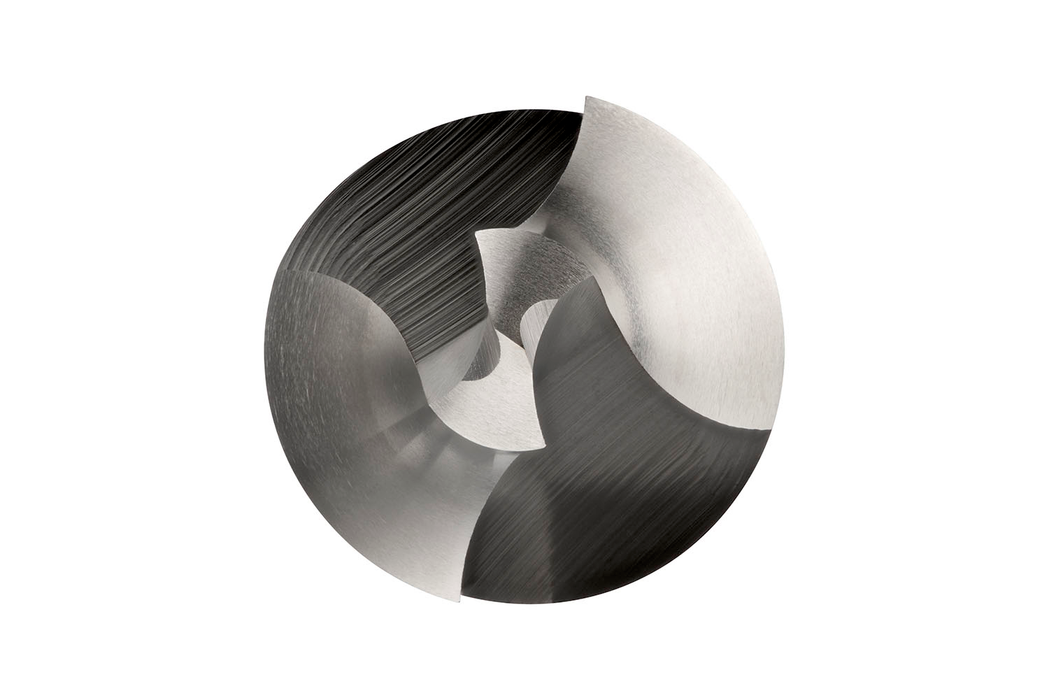

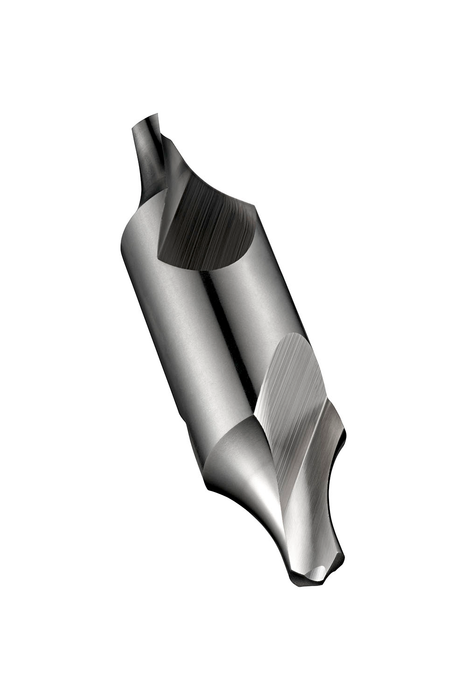

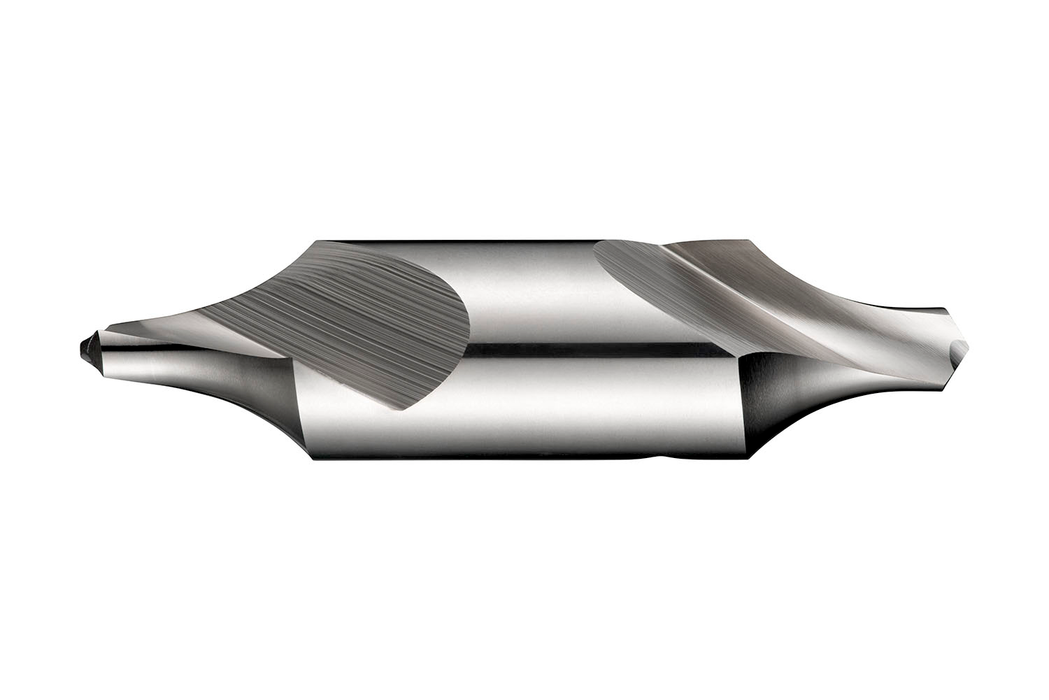

Centre drill (combined drill and countersink) with 60° curved conical form, double ended and cylindrical body, 1.25mm drill diameter, a body diameter of 3.15mm and an overall length of 31mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2101.25X3.15
GradeBright
Product Number5969337
Product FamilyA210

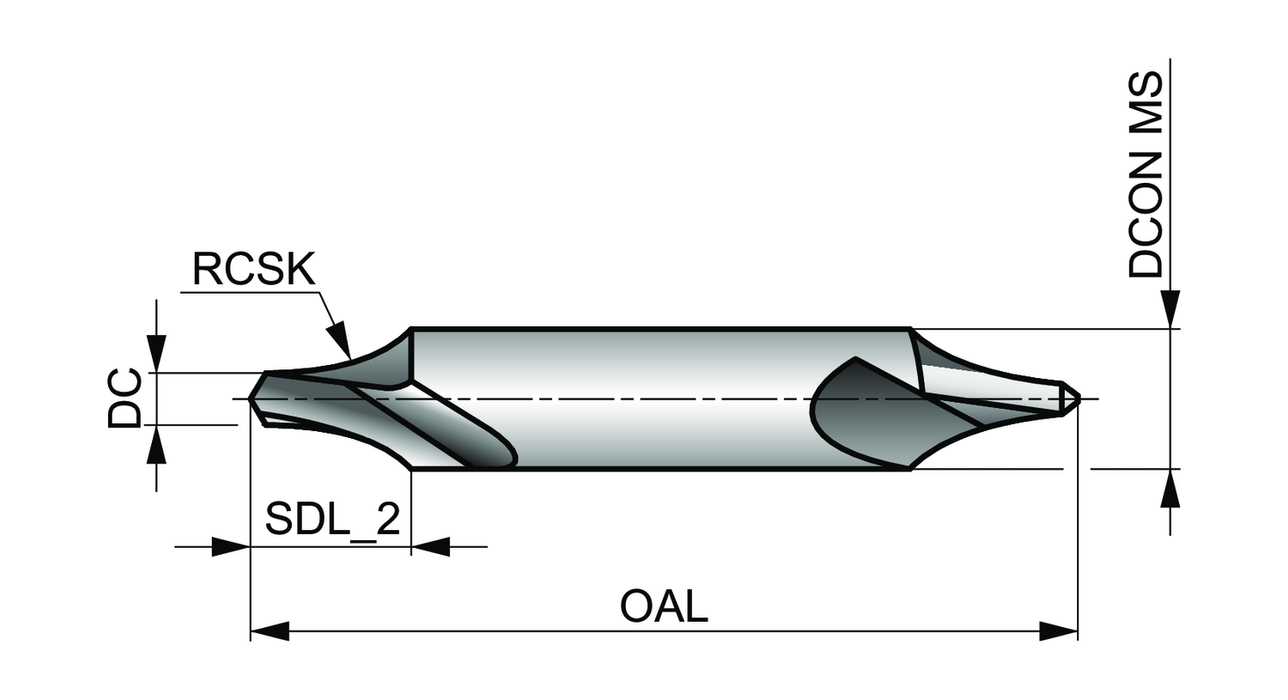

Dimensions
Cutting Diameter — in (DC)0.0492"
Cutting Diameter — mm (DC)1.25 mm
Overall Length — in (OAL)1.2205"
Overall Length — mm (OAL)31.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333R
Reference Numbers
EDP Number31063
EAN7320760031063
File Type Download
A2101.25X3.15 — Line Drawing PDF Download
