SKU DOR5969342
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Sold in packs of: 1

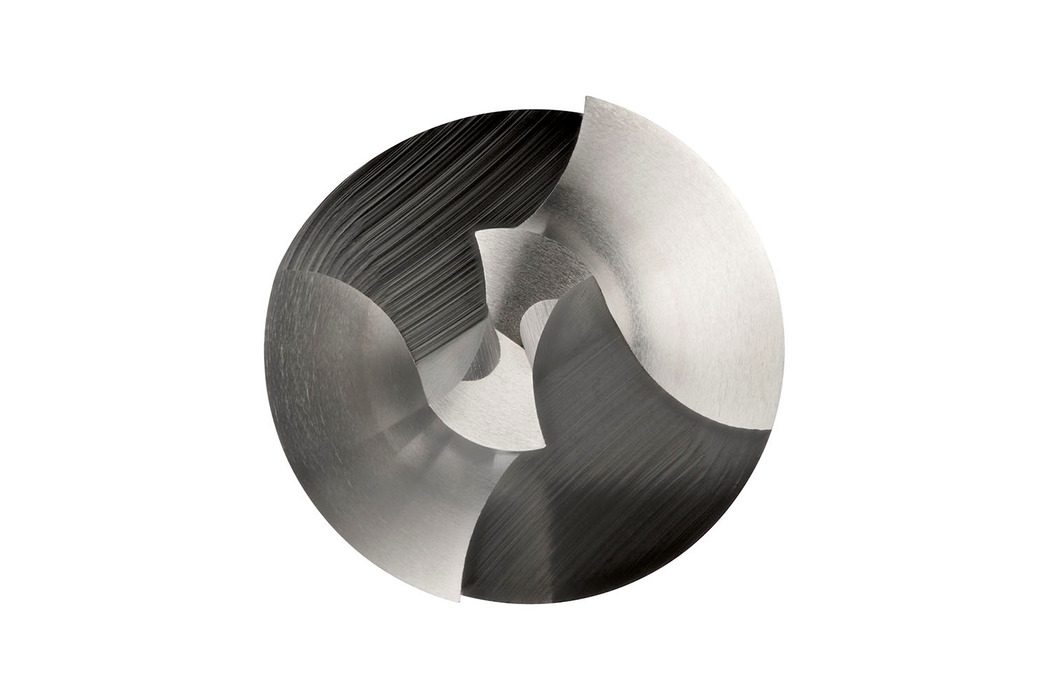

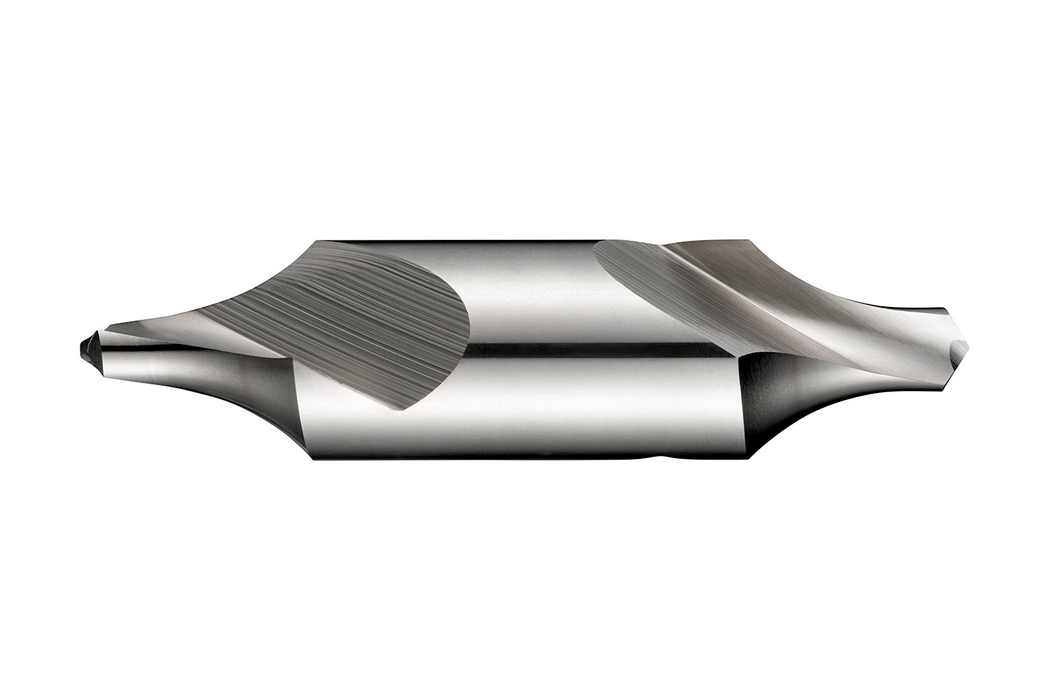

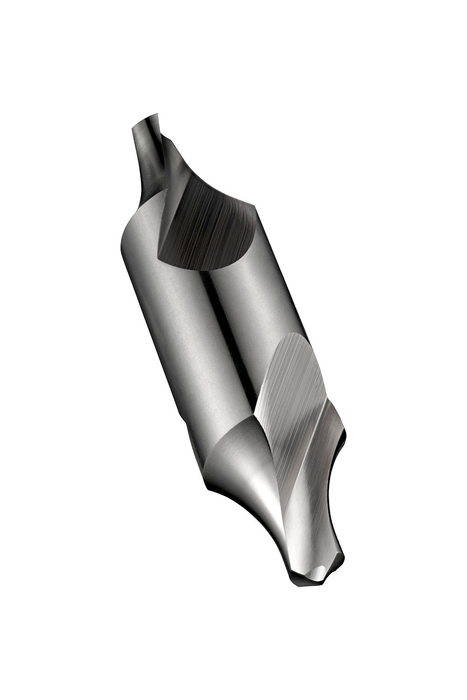

Centre drill (combined drill and countersink) with 60° curved conical form, double ended and cylindrical body, 1.60mm drill diameter, a body diameter of 4.00mm and an overall length of 35mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2101.6X4.0
GradeBright
Product Number5969342
Product FamilyA210

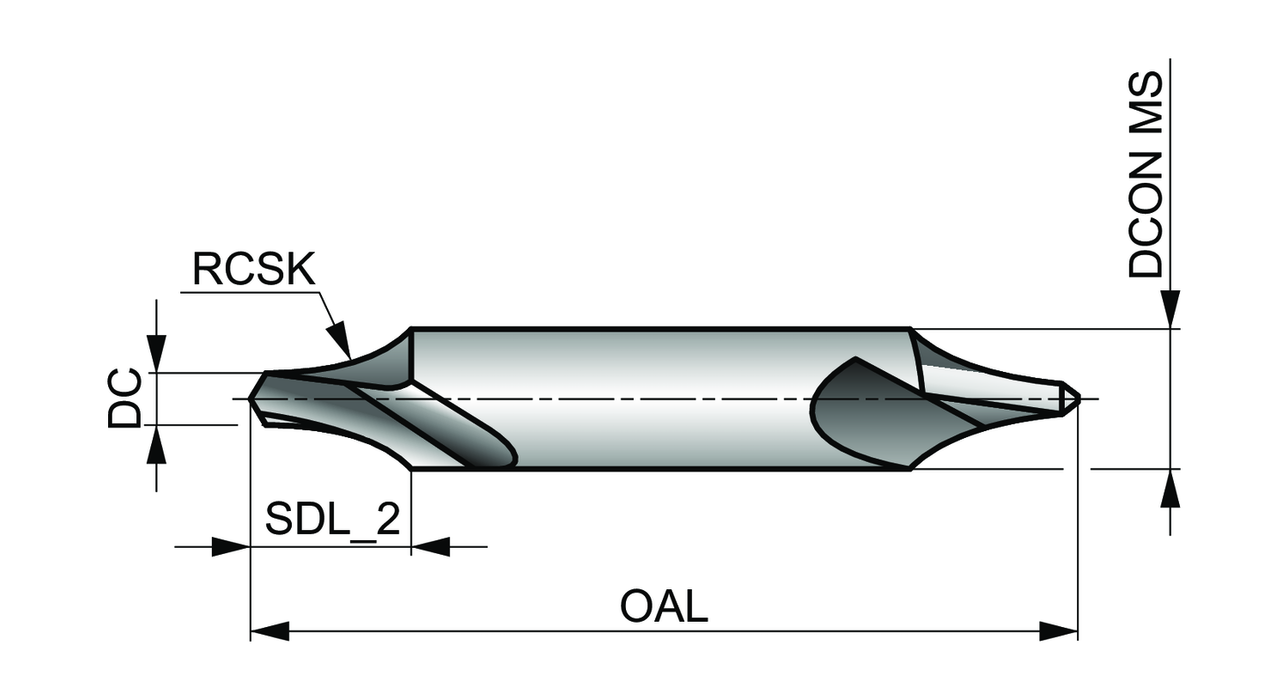

Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333R
Reference Numbers
EDP Number31070
EAN7320760031070
File Type Download
A2101.6X4.0 — Line Drawing PDF Download
