A2102.0X5.0
A2102.0X5.0
A2102.0X5.0
A2102.0X5.0

A2102.0X5.0

SKU DOR5969364
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.93 CAD - $11.93 CAD
$11.93 CAD
$11.93 CAD - $11.93 CAD
$11.93 CAD

Sold in packs of: 1

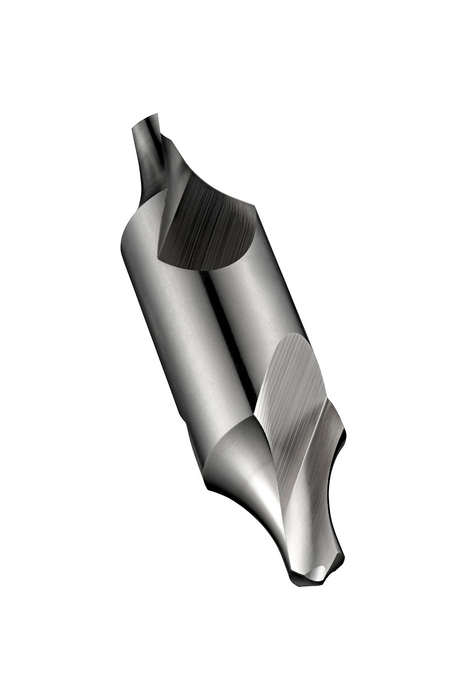

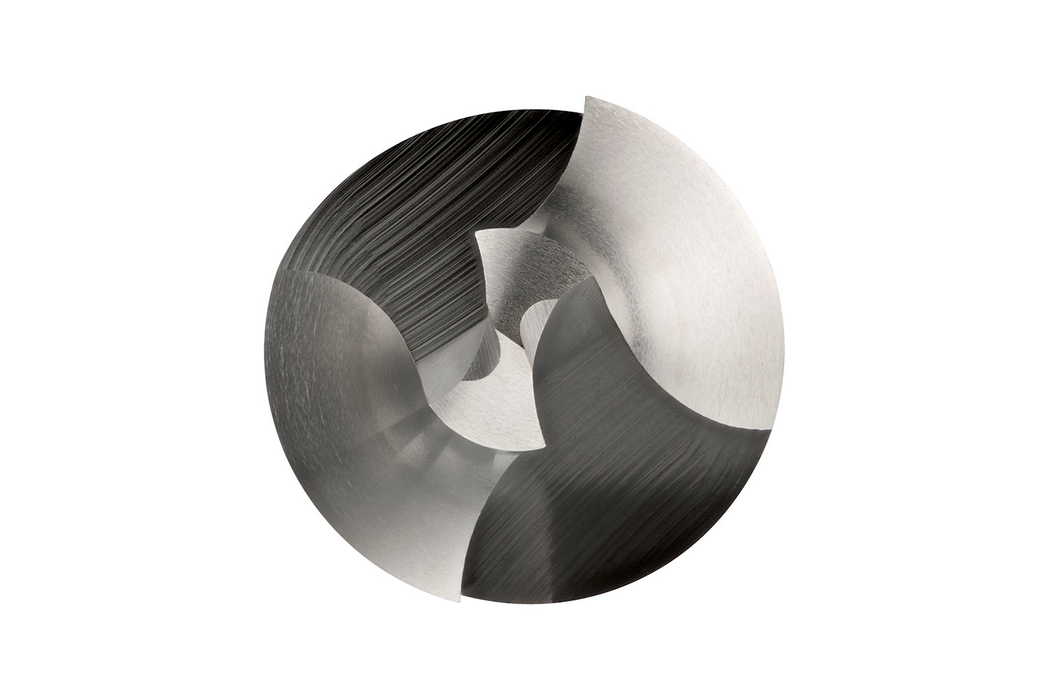

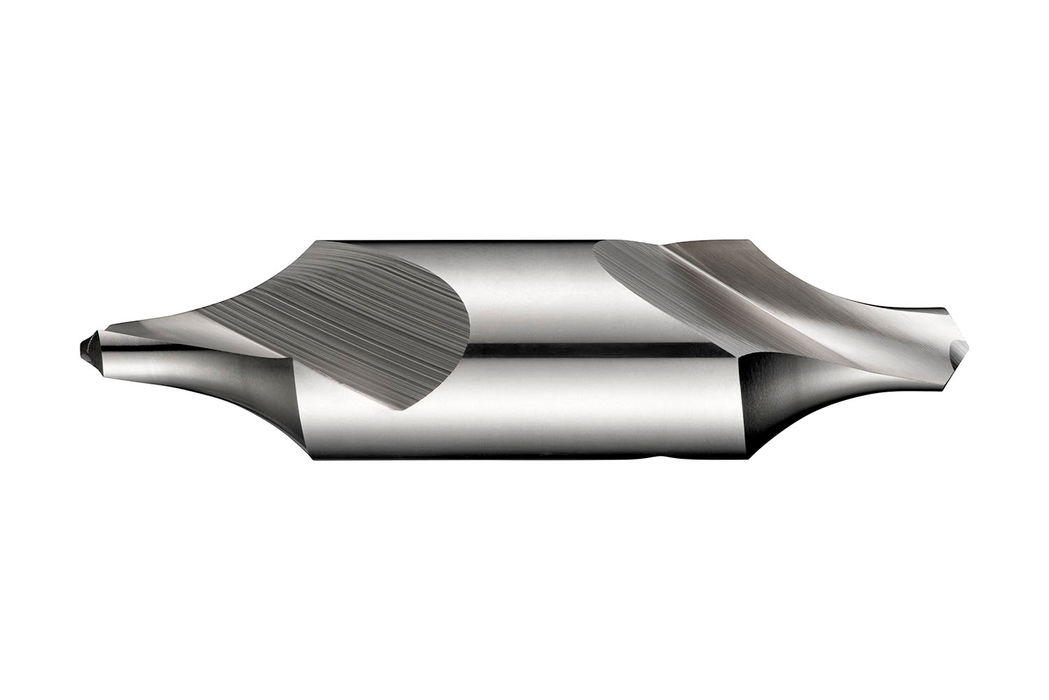

Centre drill (combined drill and countersink) with 60° curved conical form, double ended and cylindrical body, 2.00mm drill diameter, a body diameter of 5.00mm and an overall length of 40mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2102.0X5.0
GradeBright
Product Number5969364
Product FamilyA210

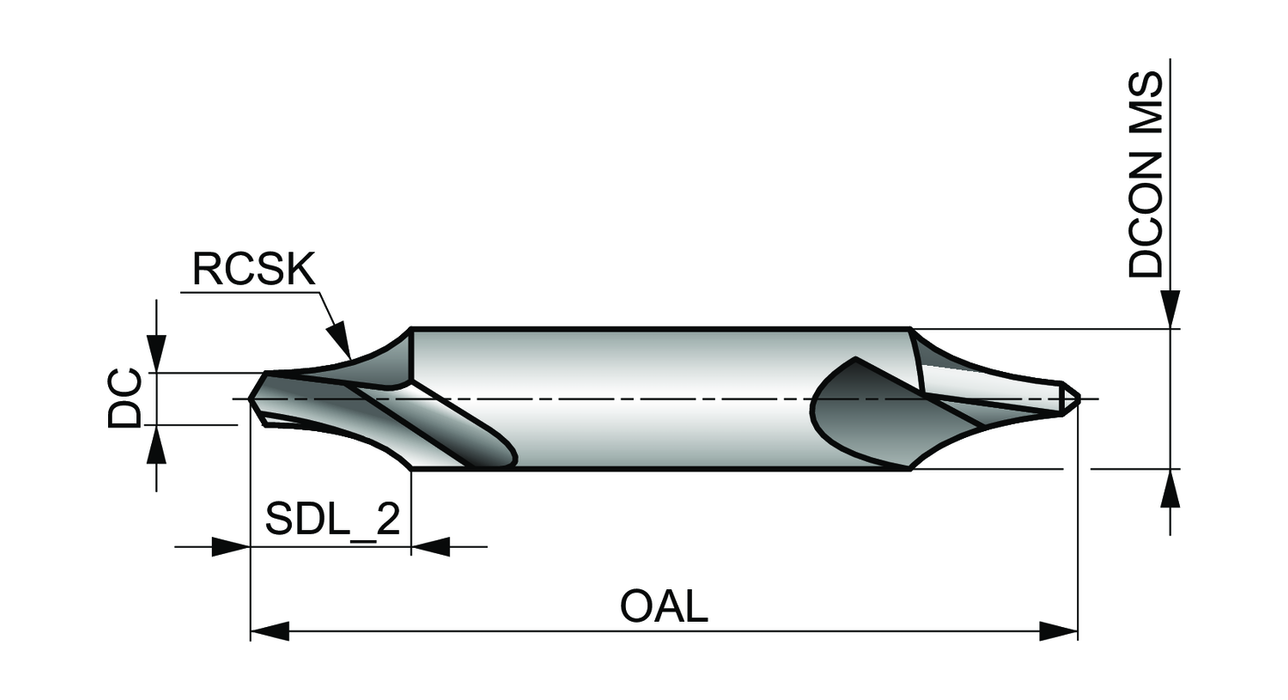

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333R
Reference Numbers
EDP Number31094
EAN7320760031094
File Type Download
A2102.0X5.0 — Line Drawing PDF Download
