A2106.3X16.0

A2106.3X16.0

SKU DOR5969384
by Dormer Pramet
Primary Use: Possible Use:

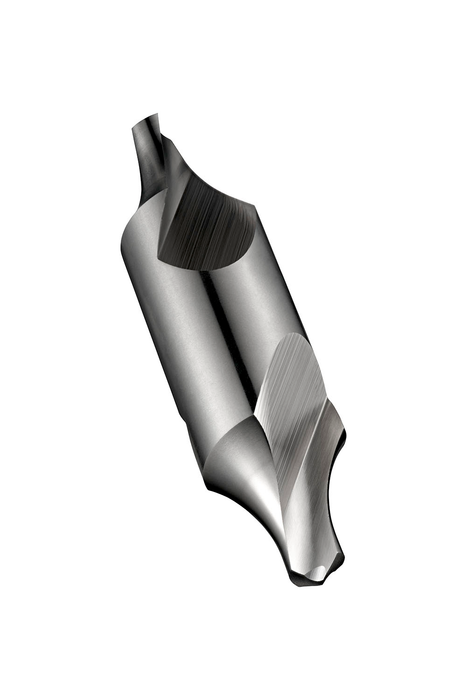

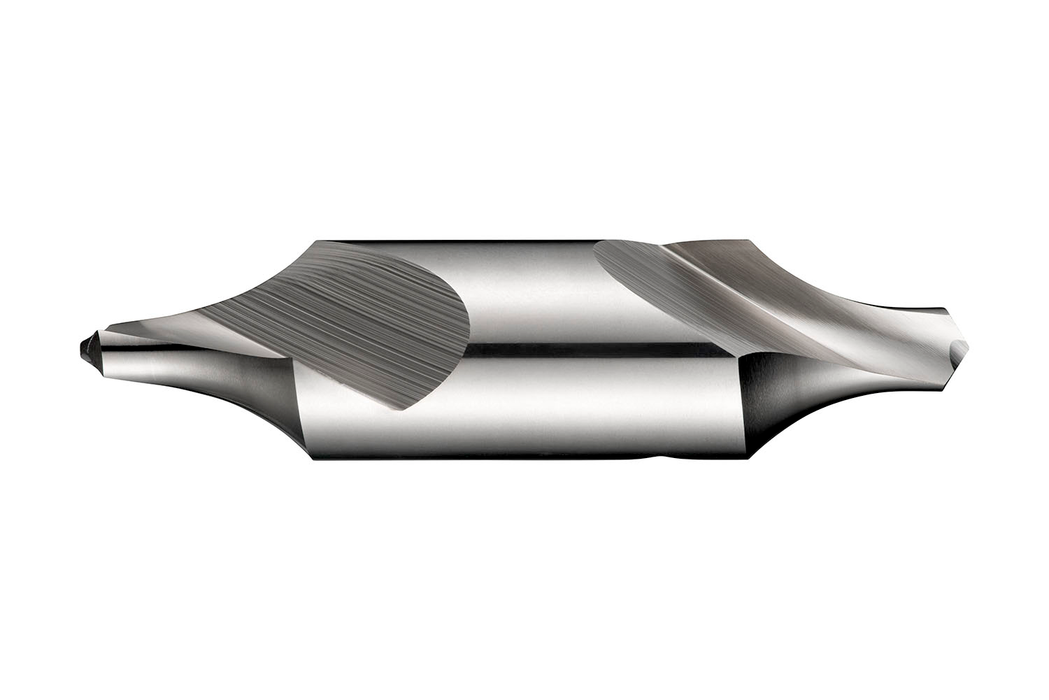

Centre drill (combined drill and countersink) with 60° curved conical form, double ended and cylindrical body, 6.30mm drill diameter, a body diameter of 16.00mm and an overall length of 71mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$52.49 - $52.49
$52.49
$52.49 - $52.49
$52.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

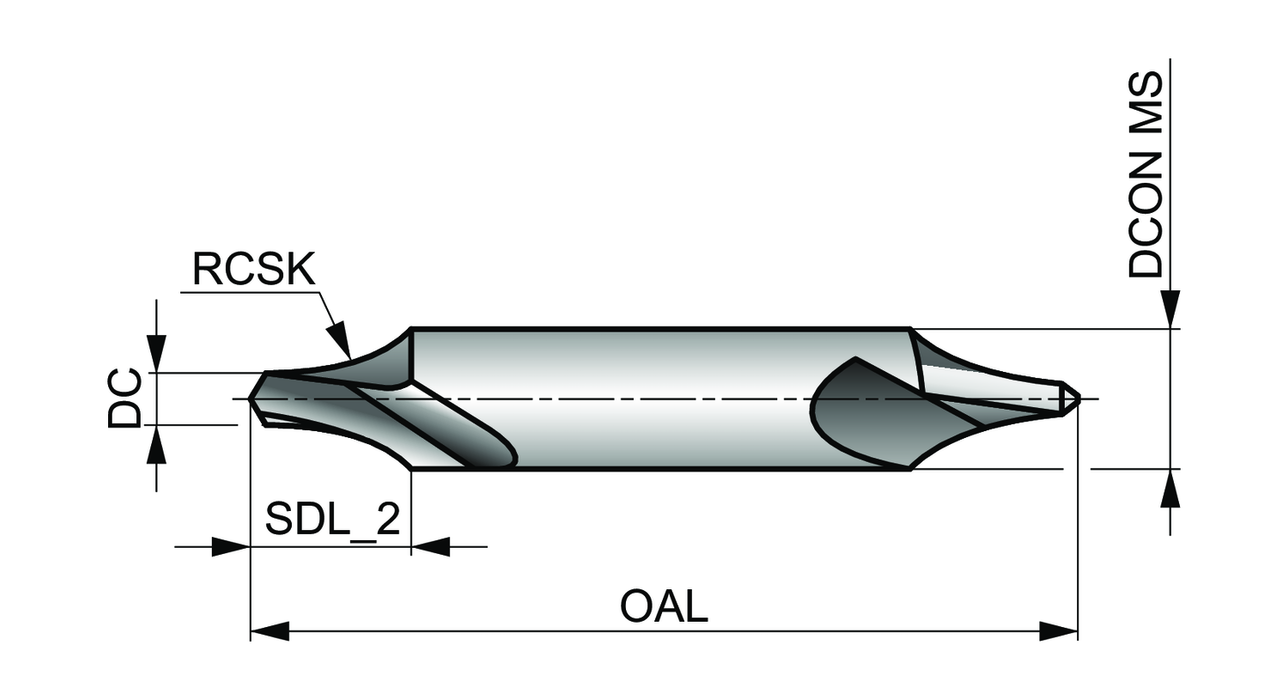

Material: HSS

Cutting Diameter - in (DC): 0.248

Cutting Diameter - mm (DC): 6.3

Drill Point Angle - deg: 118

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 2.7953

Connetion Diameter: 0.6299

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 31148

EAN: 7320760031148

MFG Part Number: 5969384
