A217N1
A217N1

A217N1

SKU DOR5969408
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.19 CAD - $10.19 CAD
$10.19 CAD
$10.19 CAD - $10.19 CAD
$10.19 CAD

Sold in packs of: 1

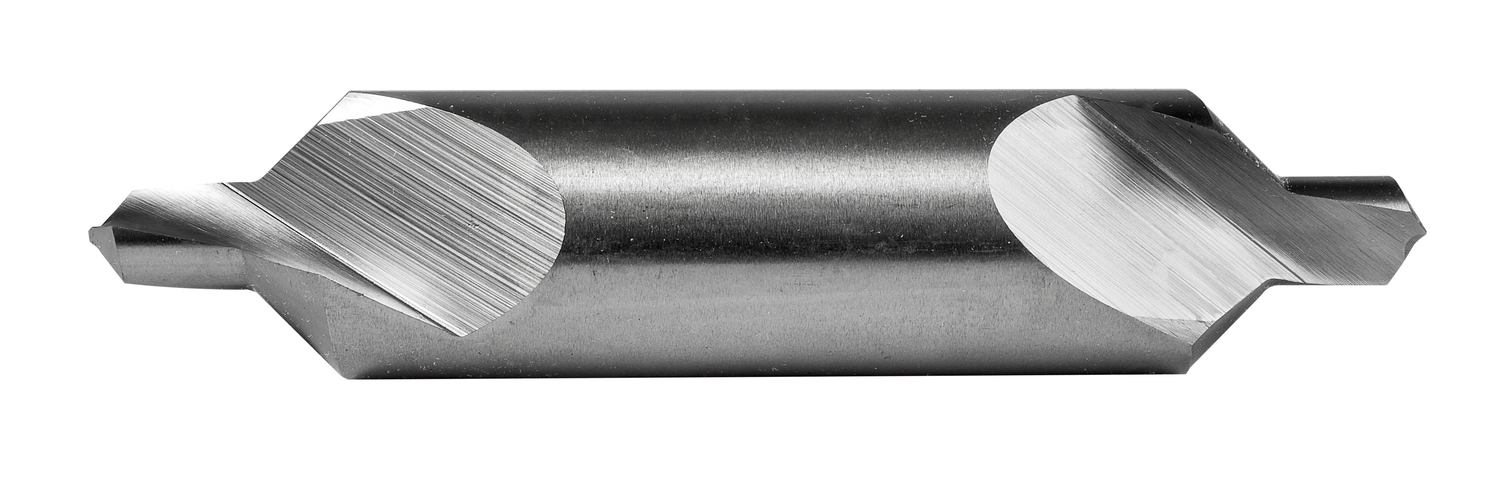

Centre drill (combined drill and countersink) with 82° straight conical form, double ended and cylindrical body, size 1 with 3/64" drill diameter, a body diameter of 1/8" and an overall length of 1.1/4", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A217N1
GradeBright
Product Number5969408
Product FamilyA217

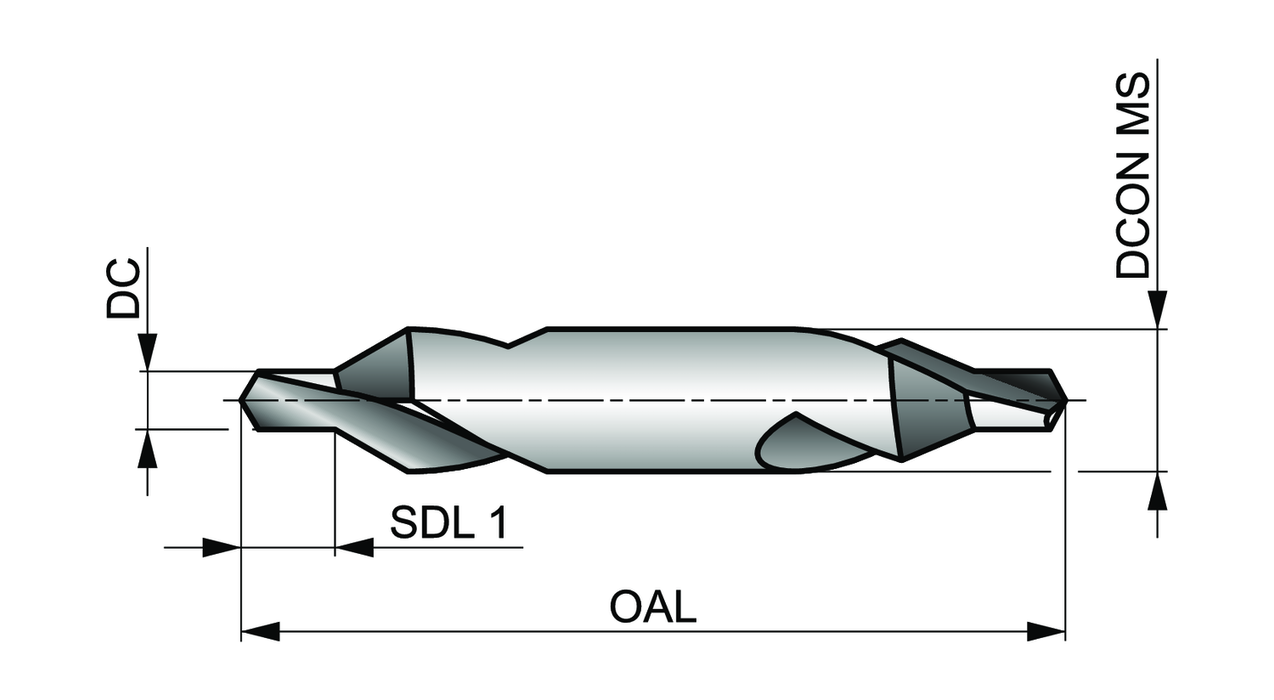

Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Overall Length — in (OAL)1.25"
Overall Length — mm (OAL)31.75 mm
Flute Length — in (LCF)0.375"
Flute Length — mm (LCF)9.53 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239216
EAN7320760239216
File Type Download
A217N1 — Line Drawing PDF Download
