A217N3
A217N3

A217N3

SKU DOR5969415
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Sold in packs of: 1

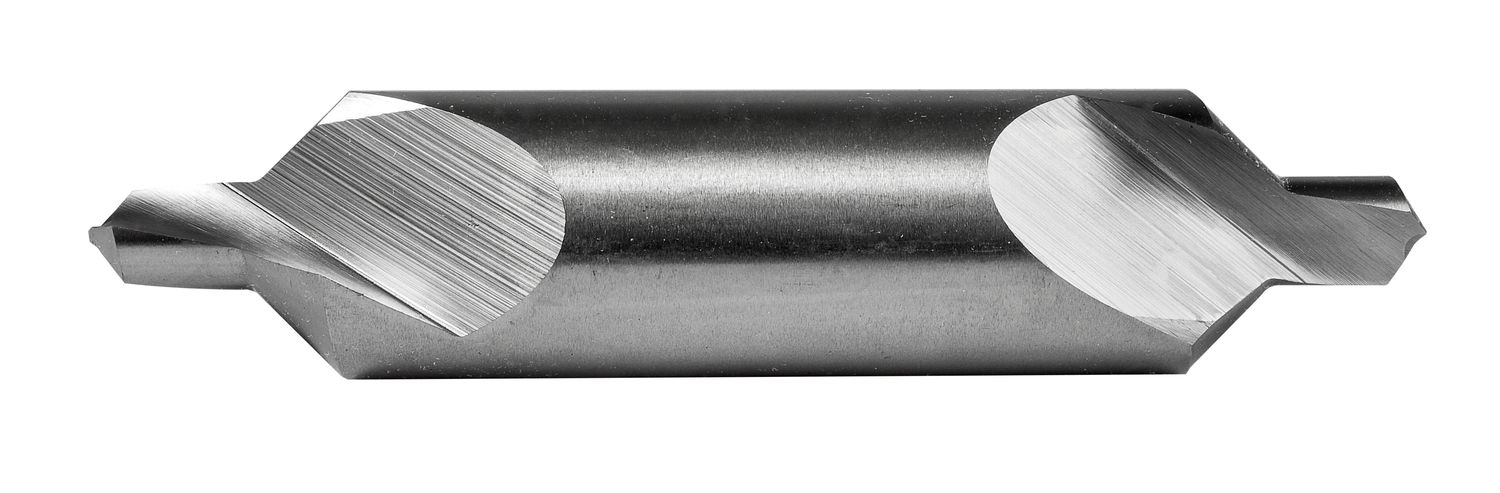

Centre drill (combined drill and countersink) with 82° straight conical form, double ended and cylindrical body, size 3 with 7/64" drill diameter, a body diameter of 1/4" and an overall length of 2", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A217N3
GradeBright
Product Number5969415
Product FamilyA217

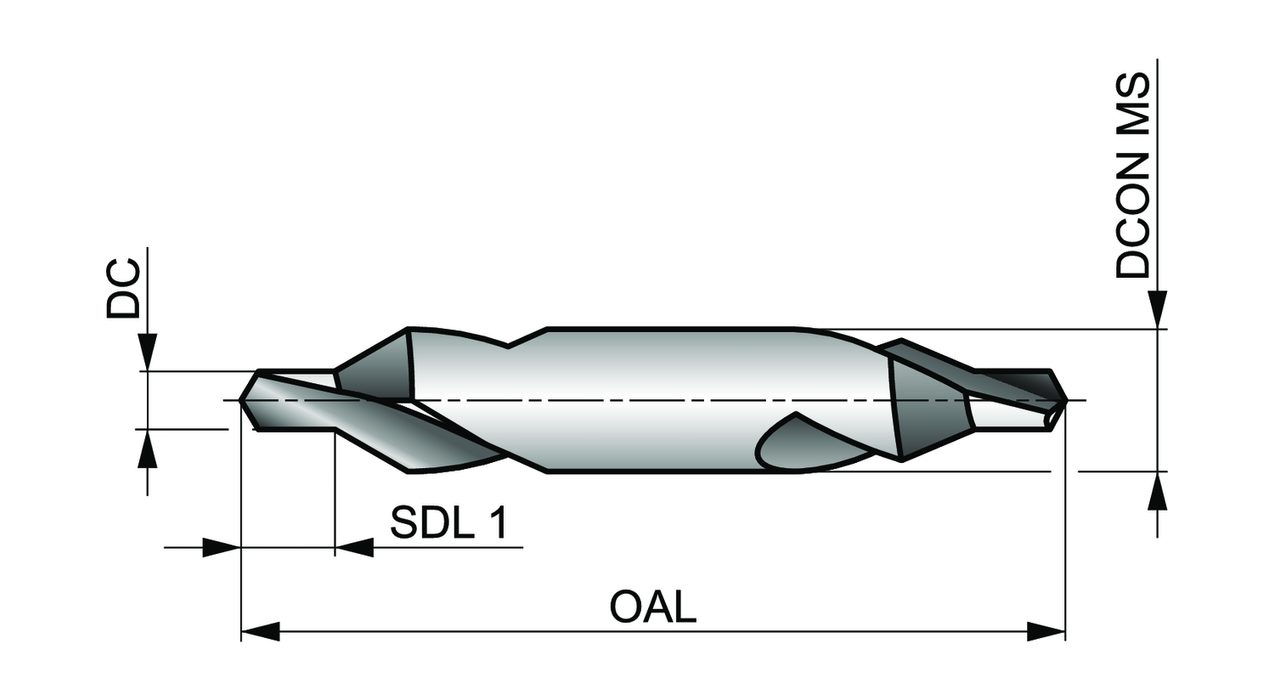

Dimensions
Cutting Diameter — in (DC)0.1094"
Cutting Diameter — mm (DC)2.78 mm
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Flute Length — in (LCF)0.625"
Flute Length — mm (LCF)15.88 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239230
EAN7320760239230
File Type Download
A217N3 — Line Drawing PDF Download
