A217N4
A217N4

A217N4

SKU DOR5969418
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.19 CAD - $11.19 CAD
$11.19 CAD
$11.19 CAD - $11.19 CAD
$11.19 CAD

Sold in packs of: 1

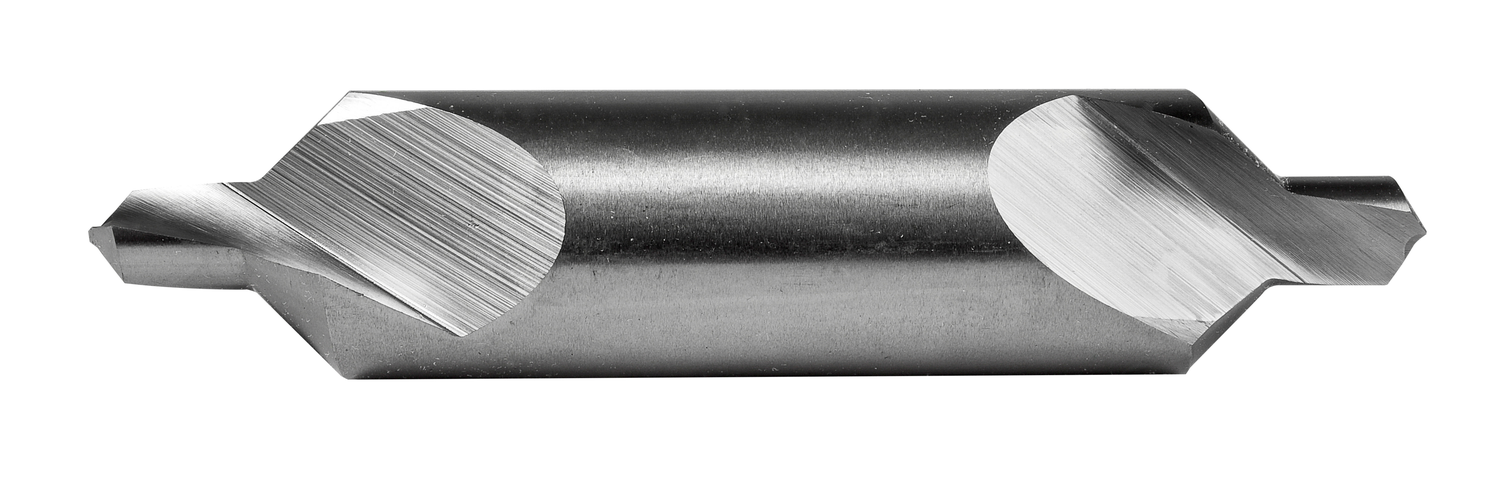

Centre drill (combined drill and countersink) with 82° straight conical form, double ended and cylindrical body, size 4 with 1/8" drill diameter, a body diameter of 5/16" and an overall length of 2.1/8", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A217N4
GradeBright
Product Number5969418
Product FamilyA217

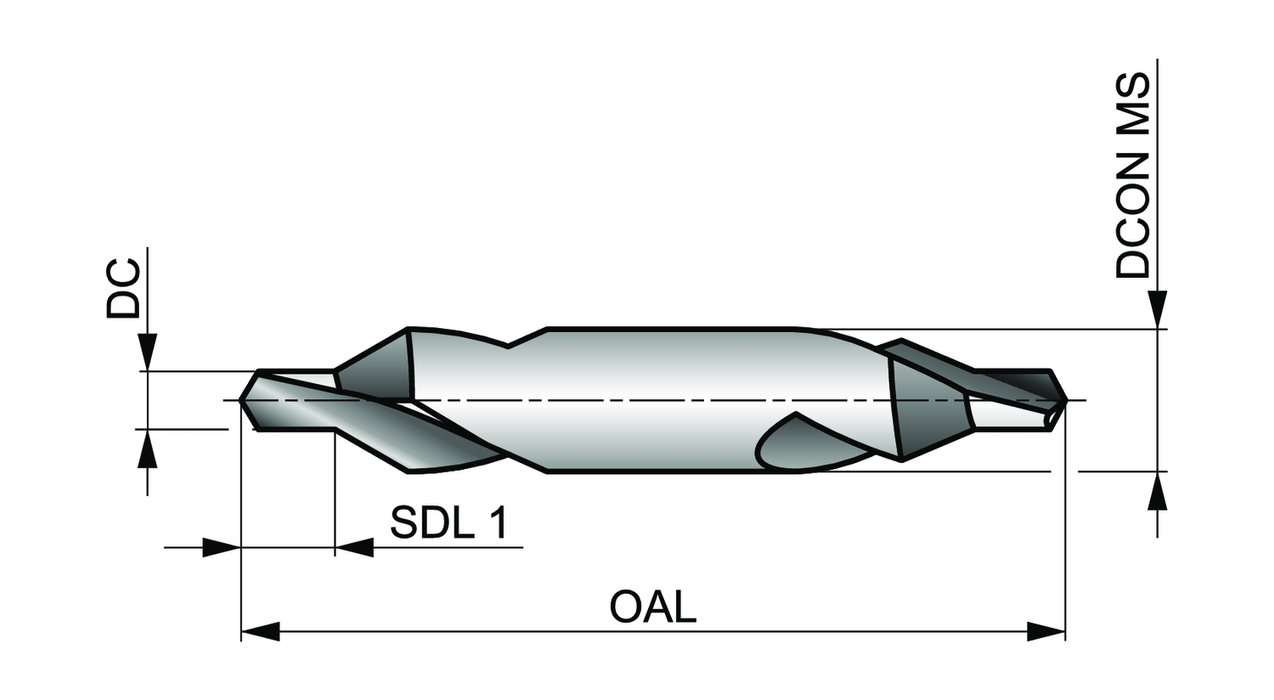

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Flute Length — in (LCF)0.7031"
Flute Length — mm (LCF)17.86 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239247
EAN7320760239247
File Type Download
A217N4 — Line Drawing PDF Download
