A217N5

A217N5

SKU DOR5969420
by Dormer Pramet
Primary Use: Possible Use:

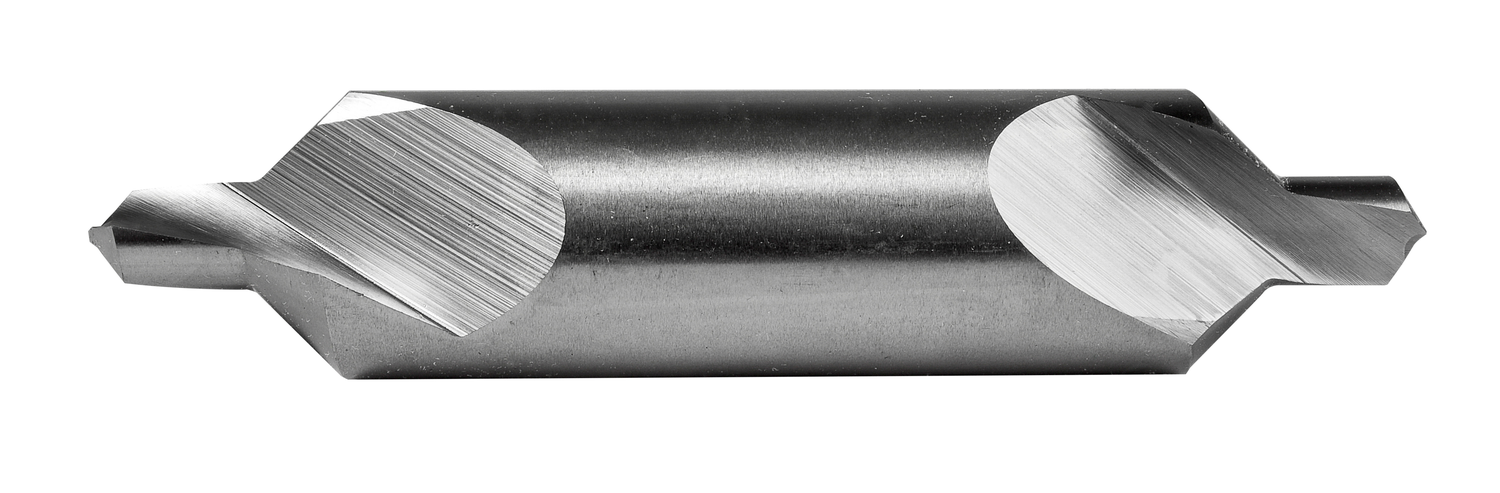

Centre drill (combined drill and countersink) with 82° straight conical form, double ended and cylindrical body, size 5 with 3/16" drill diameter, a body diameter of 7/16" and an overall length of 2.3/4", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$18.04 - $18.04
$18.04
$18.04 - $18.04
$18.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

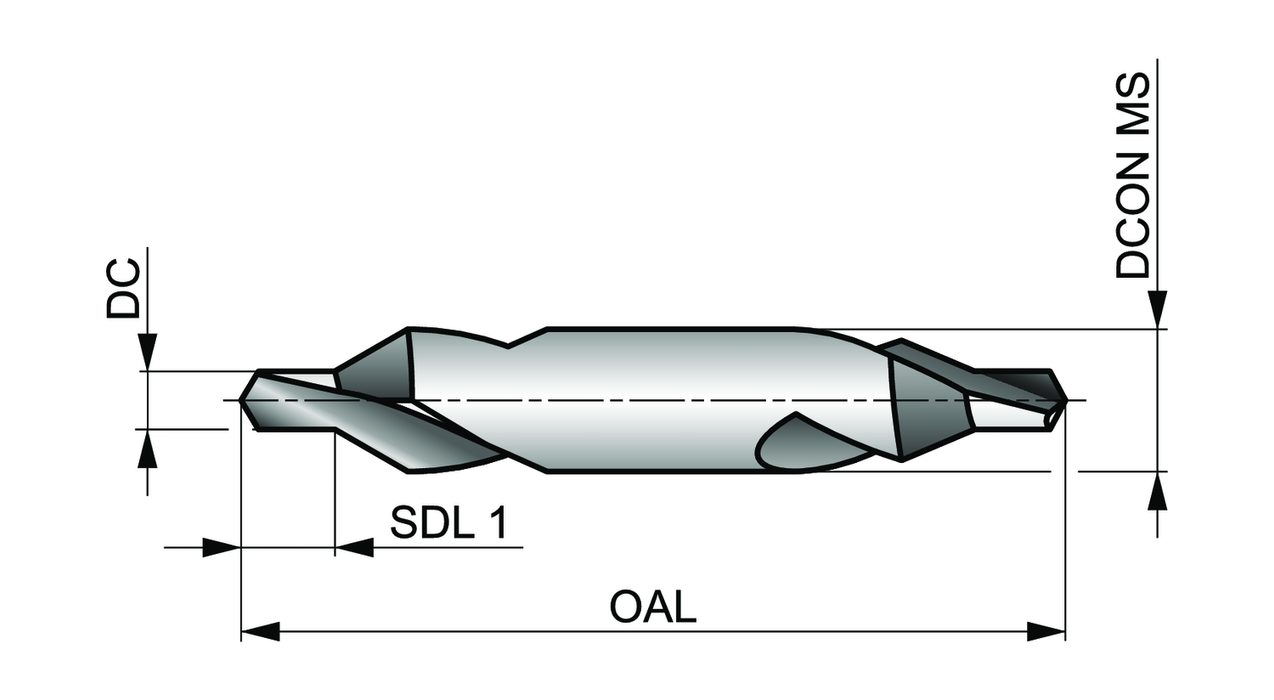

Material: HSS

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Drill Point Angle - deg: 120

Flute Length: 1.0

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 2.75

Connetion Diameter: 0.4375

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 239254

EAN: 7320760239254

MFG Part Number: 5969420
