A217N7
A217N7

A217N7

SKU DOR5969423
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.66 CAD - $39.66 CAD
$39.66 CAD
$39.66 CAD - $39.66 CAD
$39.66 CAD

Sold in packs of: 1

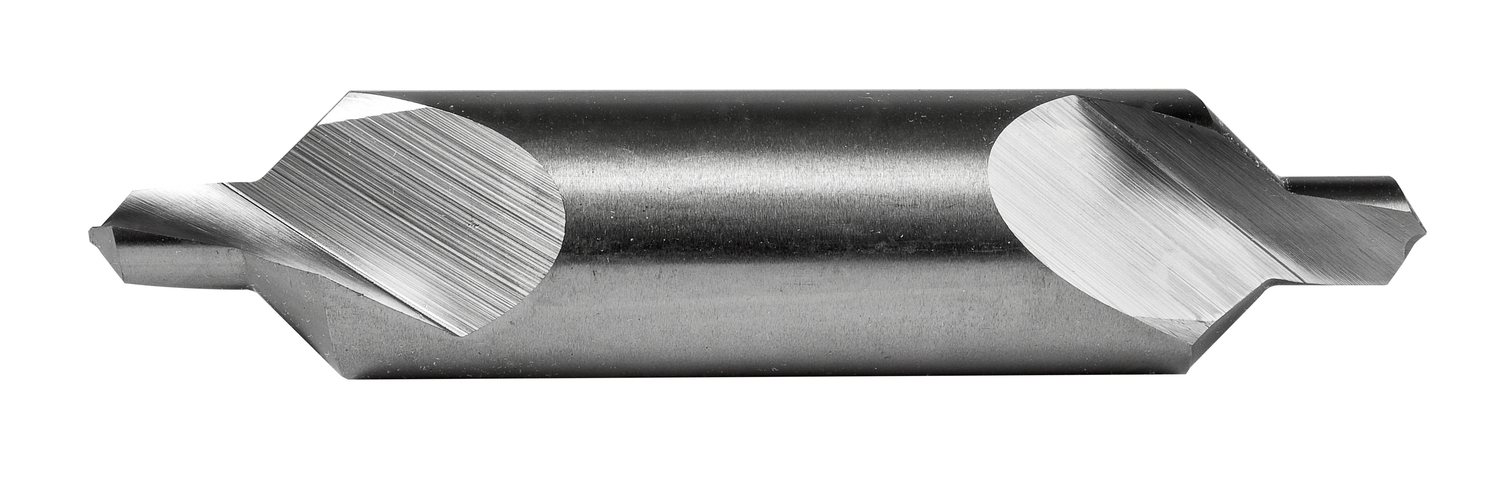

Centre drill (combined drill and countersink) with 82° straight conical form, double ended and cylindrical body, size 7 with 1/4" drill diameter, a body diameter of 5/8" and an overall length of 3.1/4", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A217N7
GradeBright
Product Number5969423
Product FamilyA217

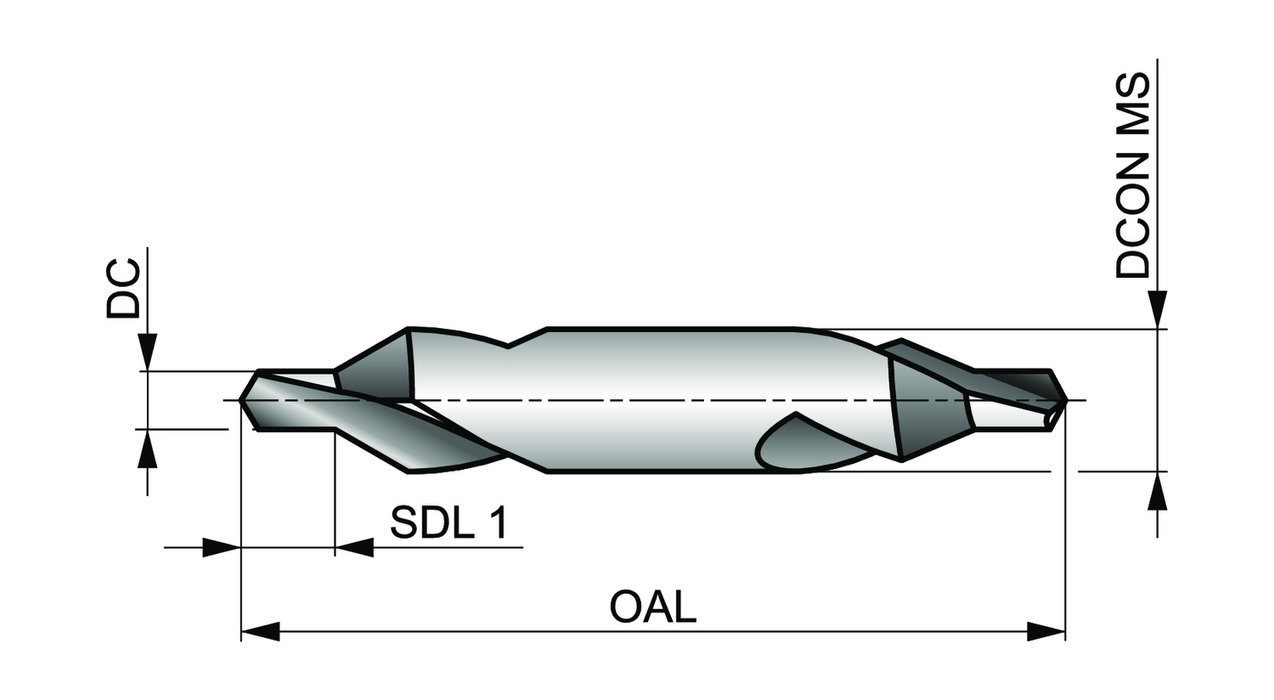

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)1.8125"
Flute Length — mm (LCF)46.04 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number239278
EAN7320760239278
File Type Download
A217N7 — Line Drawing PDF Download
