A2013.15X10.0

A2013.15X10.0

SKU DOR5969428
by Dormer Pramet
Primary Use: Possible Use:

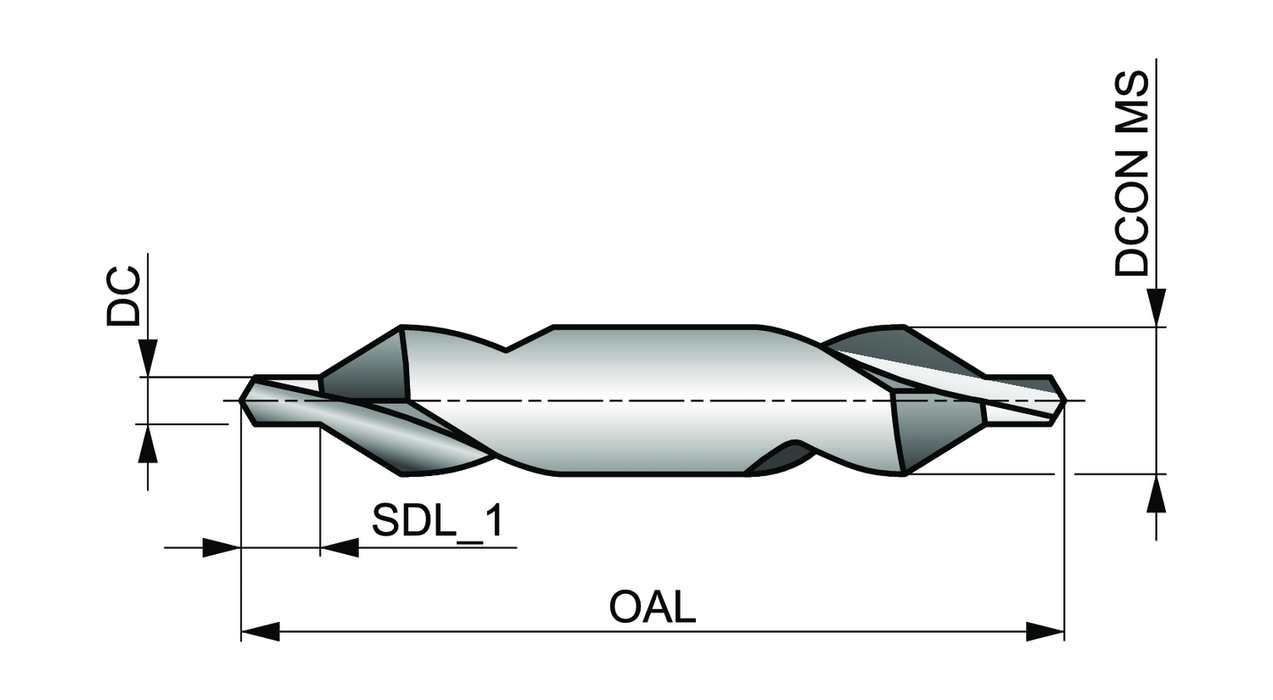

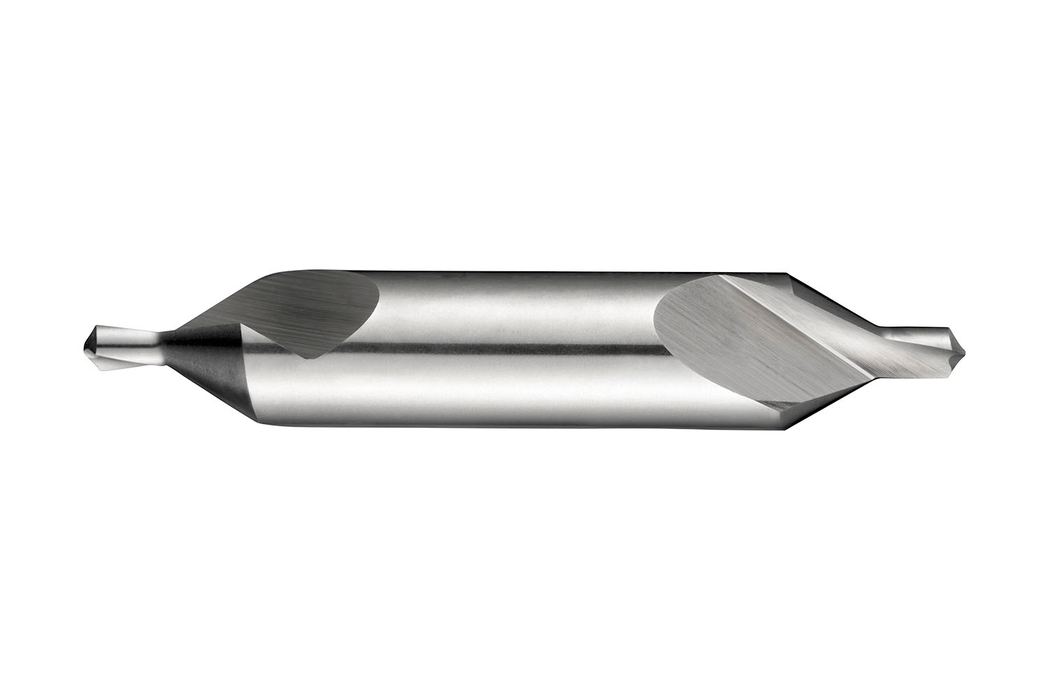

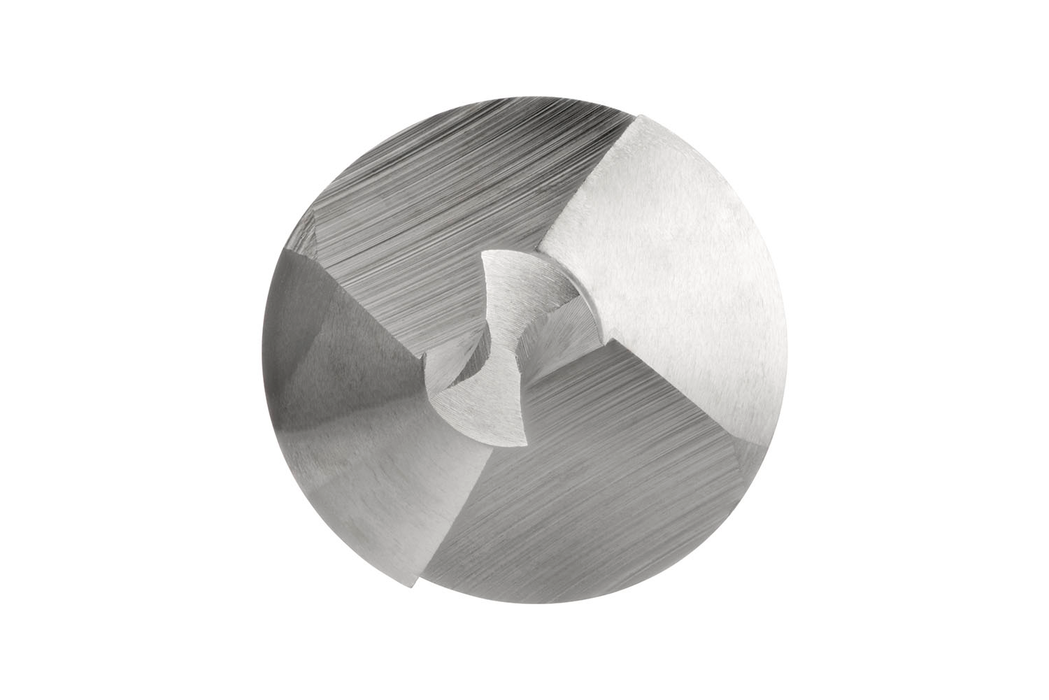

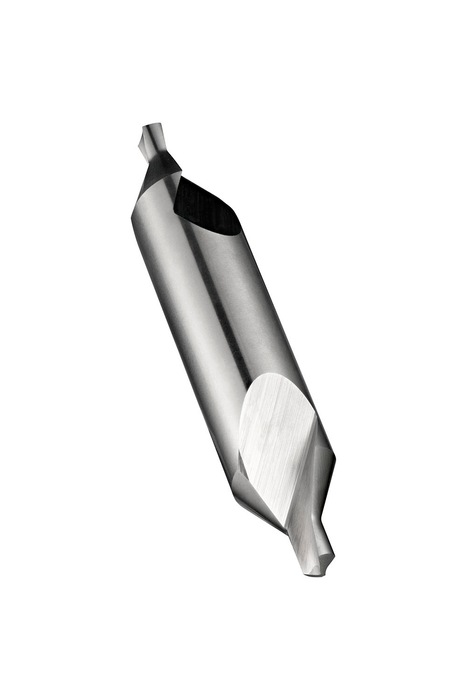

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 3.15mm drill diameter, a body diameter of 10.00mm and an overall length of 56mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$18.13 - $18.13
$18.13
$18.13 - $18.13
$18.13
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.124

Cutting Diameter - mm (DC): 3.15

Drill Point Angle - deg: 122

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 2.2047

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 215135

EAN: 7320760215135

MFG Part Number: 5969428
