A200.8X3.15

A200.8X3.15

SKU DOR5969822
by Dormer Pramet
Primary Use: Possible Use:

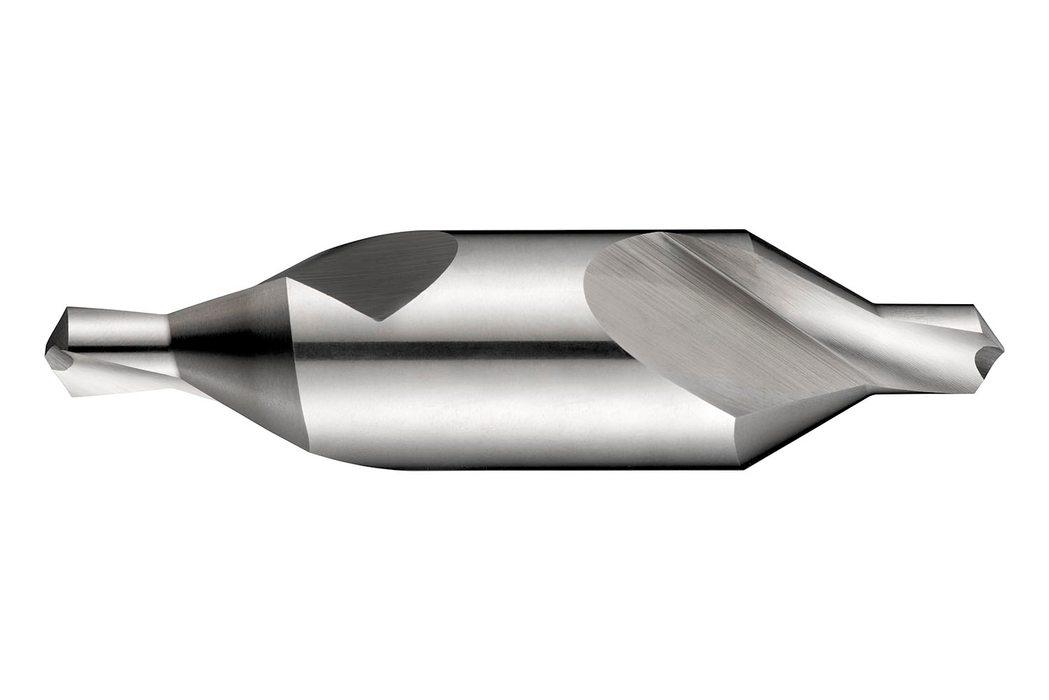

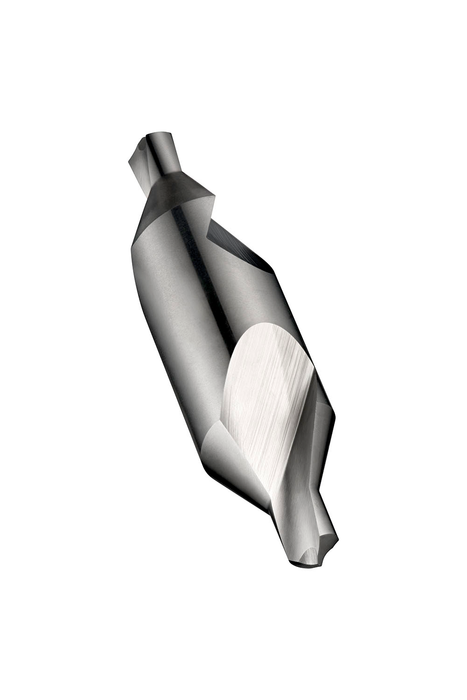

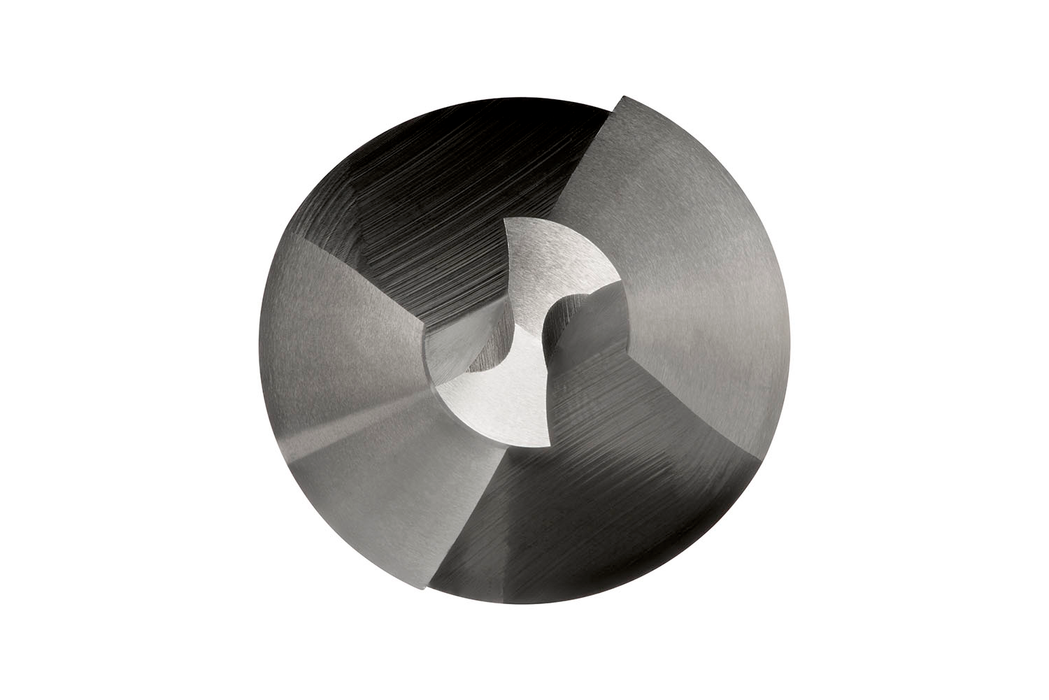

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 0.80mm drill diameter, a body diameter of 3.15mm and an overall length of 25mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$8.11 - $8.11
$8.11
$8.11 - $8.11
$8.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

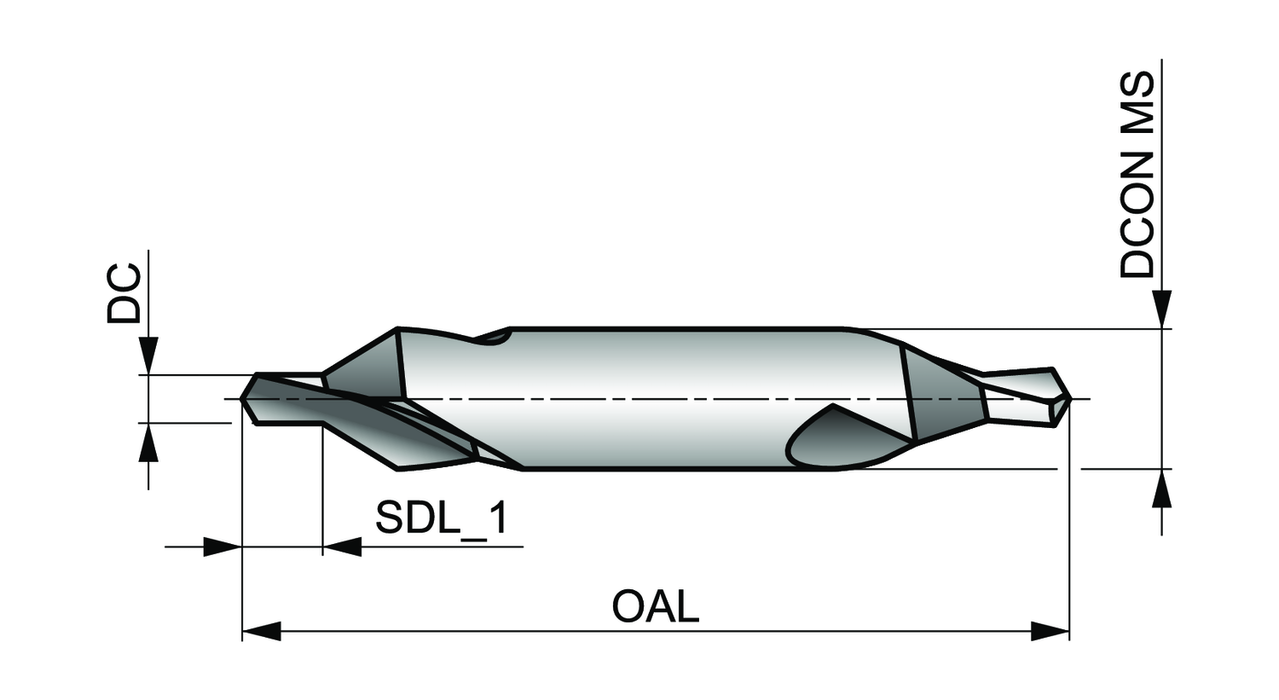

Cutting Diameter - in (DC): 0.0315

Cutting Diameter - mm (DC): 0.8

Drill Point Angle - deg: 118

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 0.9843

Connetion Diameter: 0.124

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 30691

EAN: 7320760030691

MFG Part Number: 5969822
