SKU DOR5969845
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$248.59 CAD - $248.59 CAD
$248.59 CAD
$248.59 CAD - $248.59 CAD
$248.59 CAD

Sold in packs of: 1

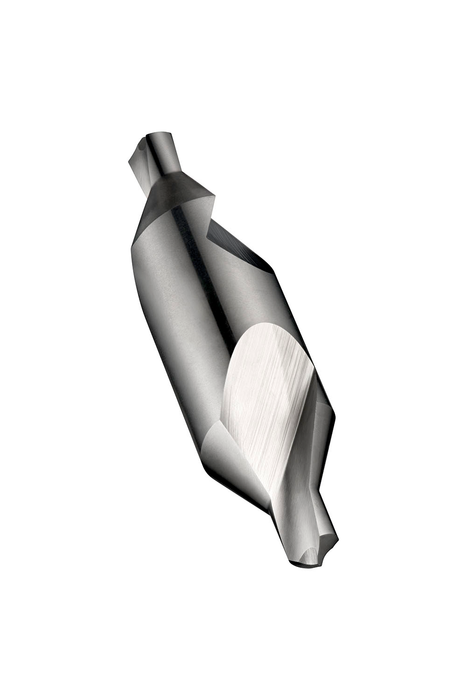

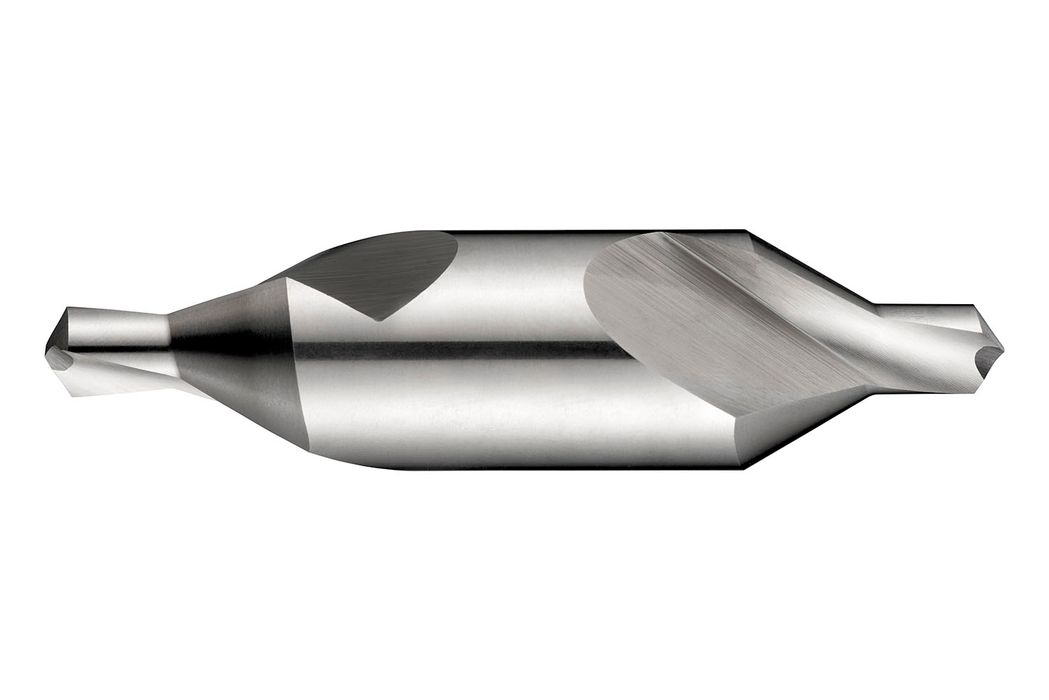

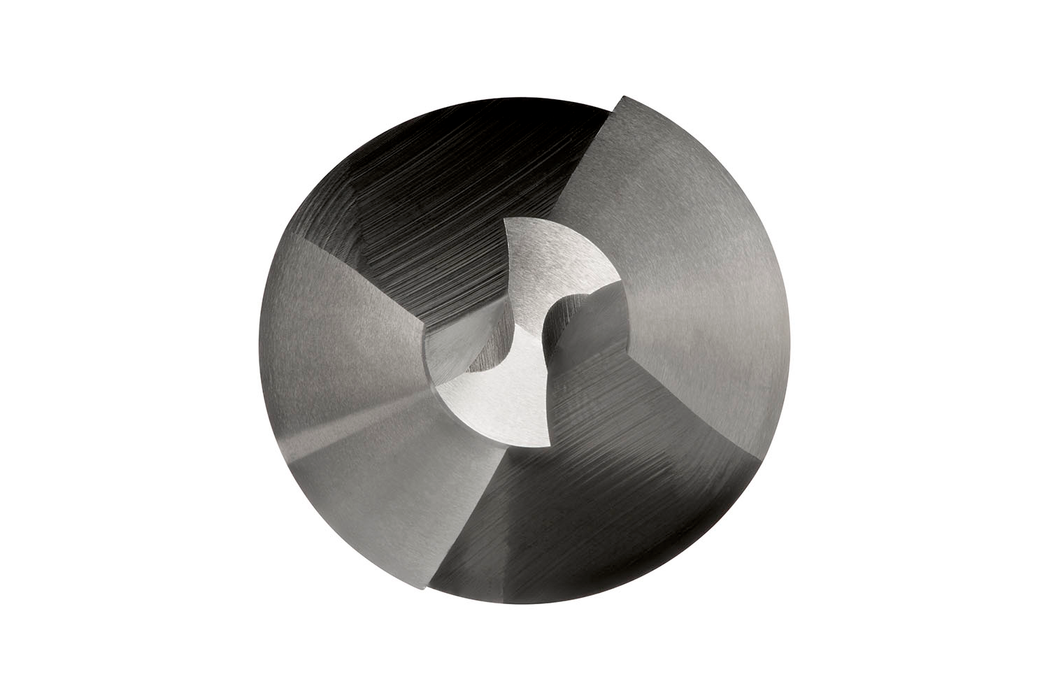

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 12.50mm drill diameter, a body diameter of 31.50mm and an overall length of 125mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20012.5X31.5
GradeBright
Product Number5969845
Product FamilyA200

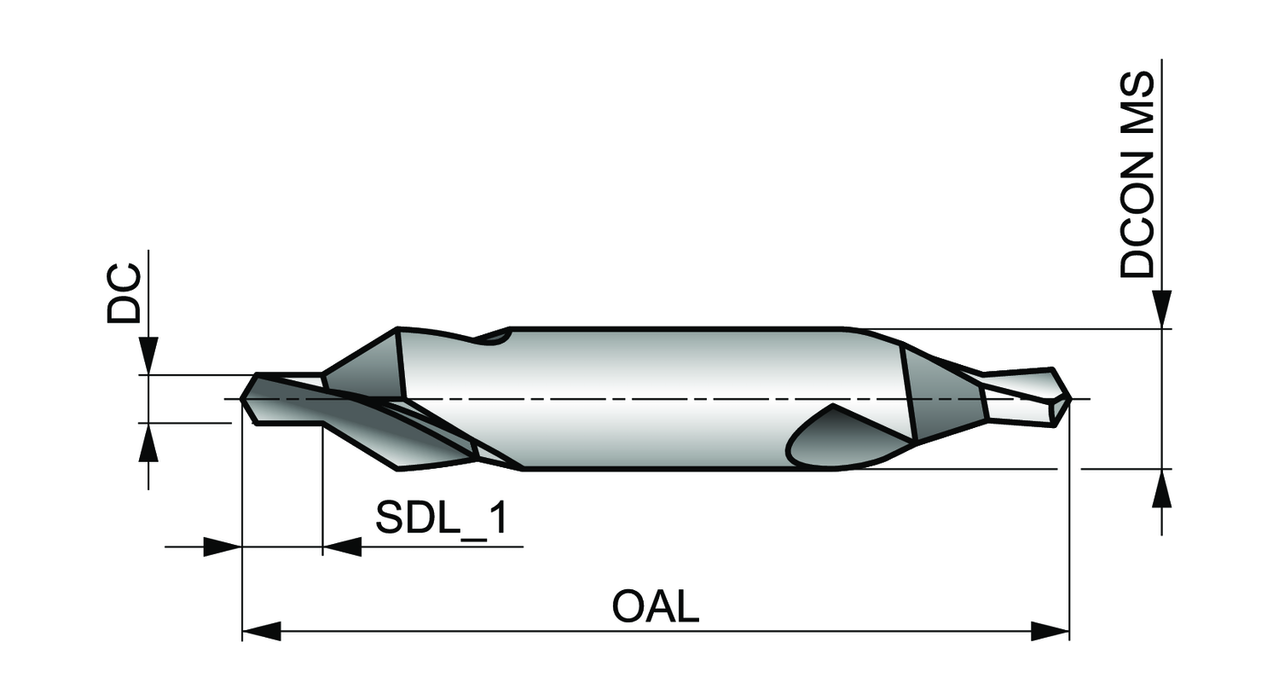

Dimensions
Cutting Diameter — in (DC)0.4921"
Cutting Diameter — mm (DC)12.5 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)1.2402"
Connection Dia. — mm (DCON)31.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333A
Reference Numbers
EDP Number214367
EAN7320760214367
File Type Download
A20012.5X31.5 — Line Drawing PDF Download
