A2002.5X6.3

A2002.5X6.3

SKU DOR5969858
by Dormer Pramet
Primary Use: Possible Use:

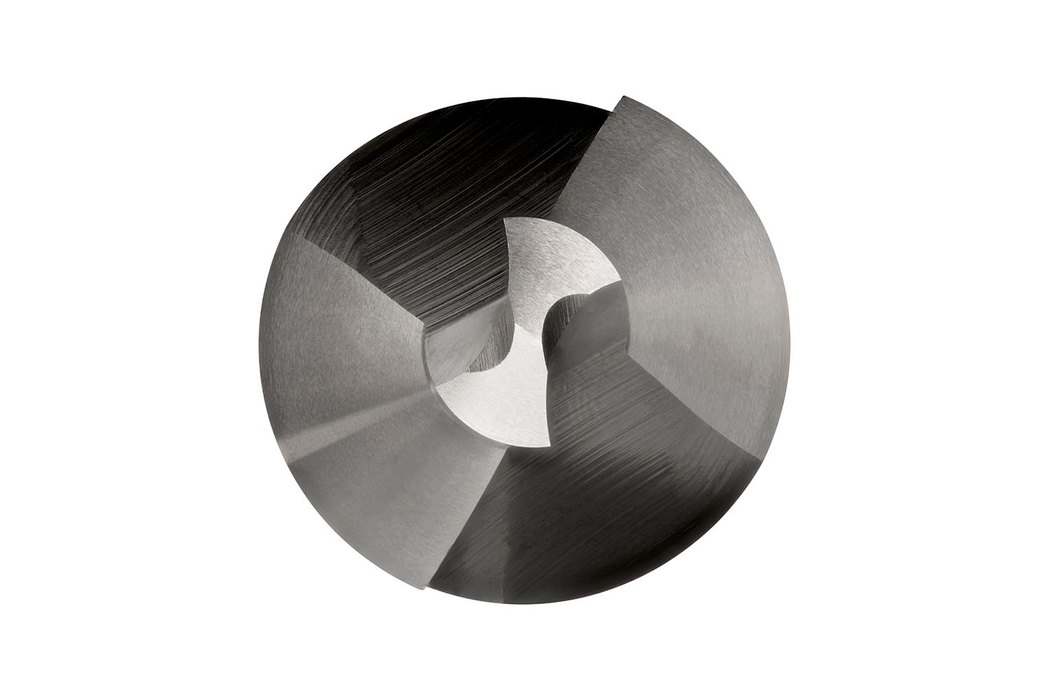

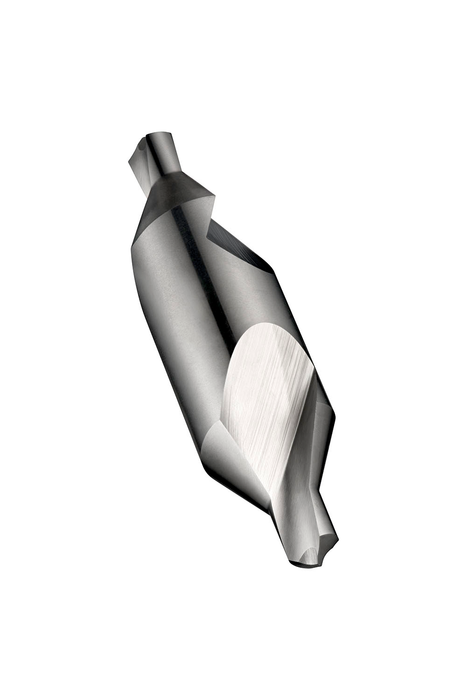

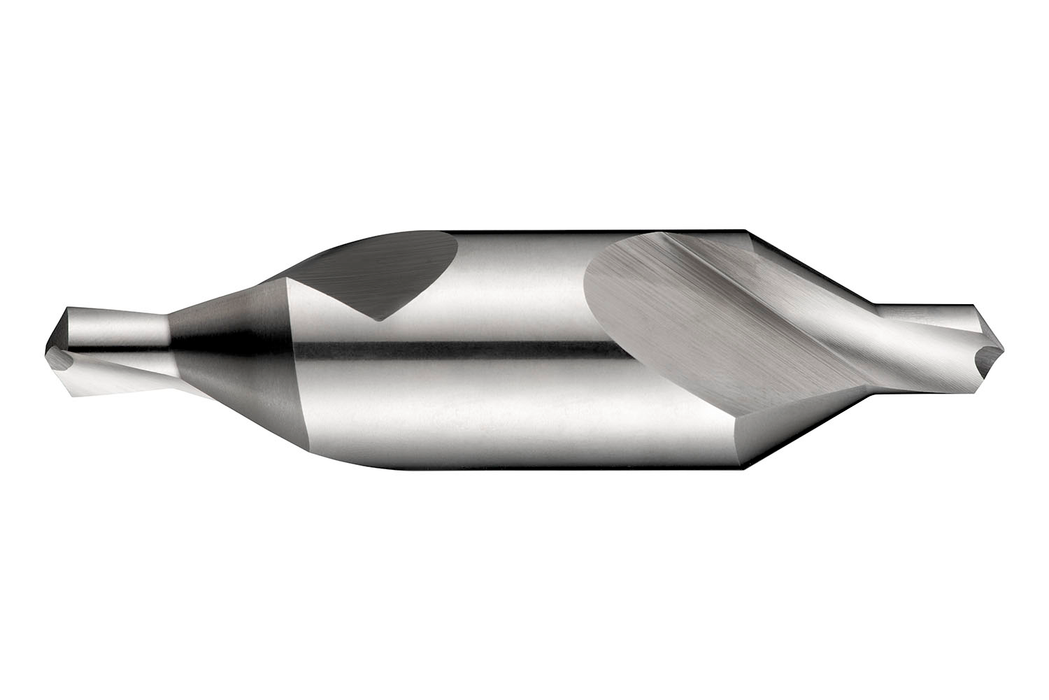

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 2.50mm drill diameter, a body diameter of 6.30mm and an overall length of 45mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$11.14 - $11.14
$11.14
$11.14 - $11.14
$11.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

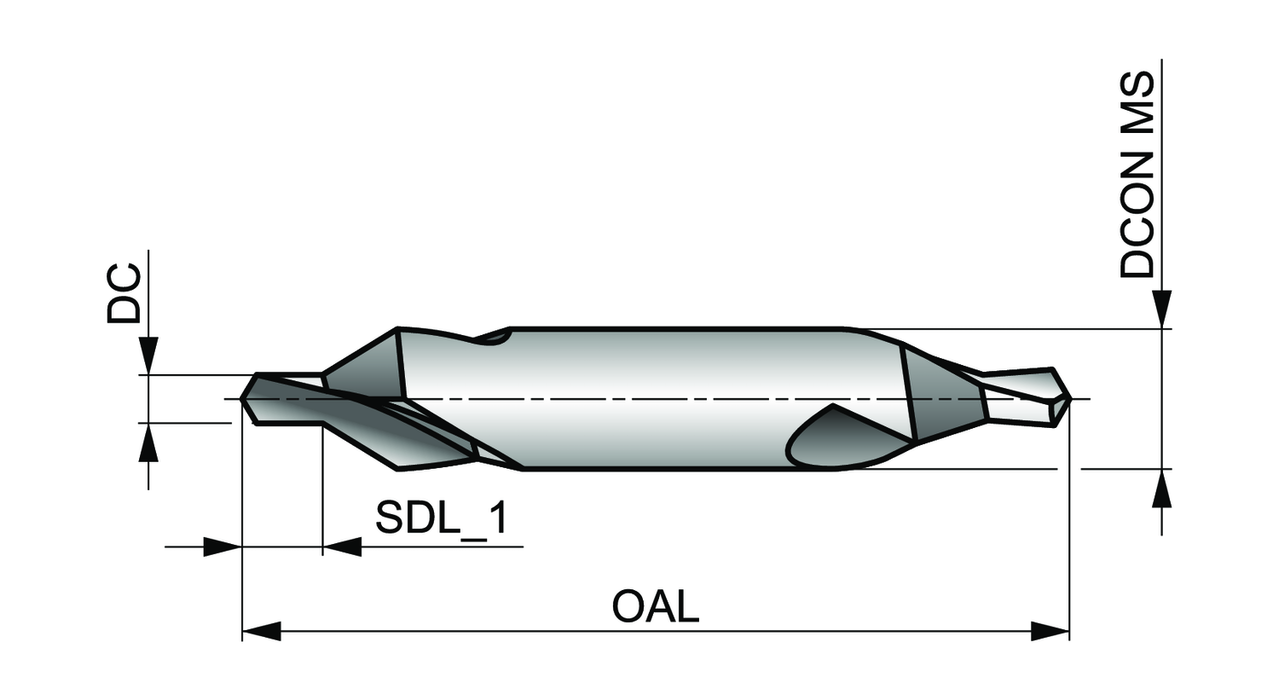

Cutting Diameter - in (DC): 0.0984

Cutting Diameter - mm (DC): 2.5

Drill Point Angle - deg: 118

Lenxth x Diameter Ratio: 1

Overall Length (OAL): 1.7717

Connetion Diameter: 0.248

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 30752

EAN: 7320760030752

MFG Part Number: 5969858
