A2003.15X8.0
A2003.15X8.0
A2003.15X8.0
A2003.15X8.0

A2003.15X8.0

SKU DOR5969862
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.96 CAD - $15.96 CAD
$15.96 CAD
$15.96 CAD - $15.96 CAD
$15.96 CAD

Sold in packs of: 1

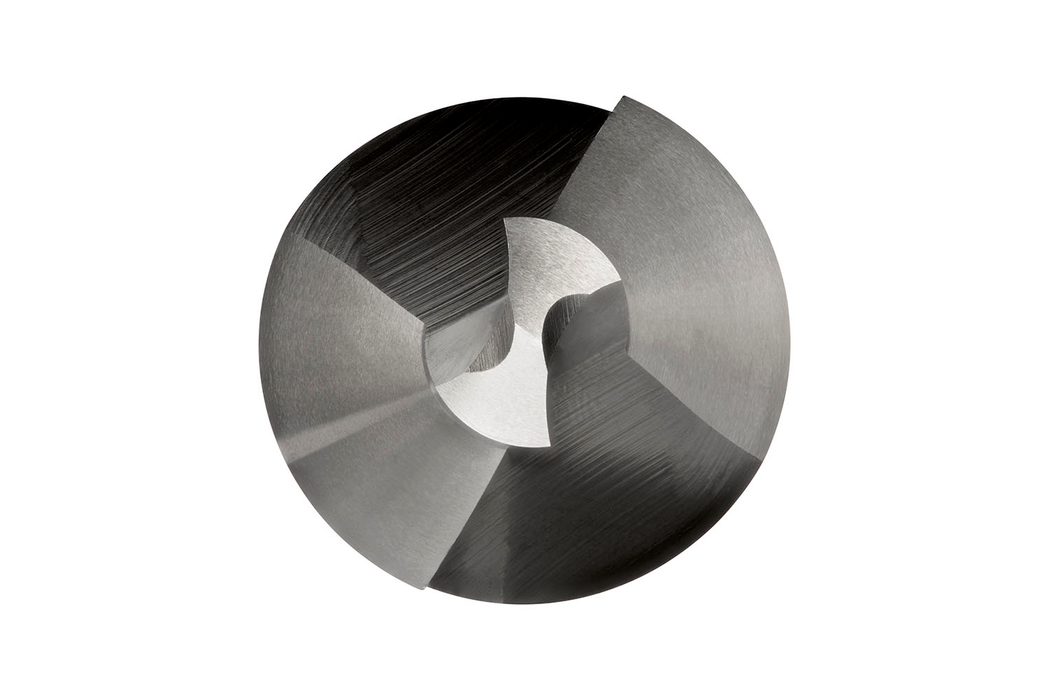

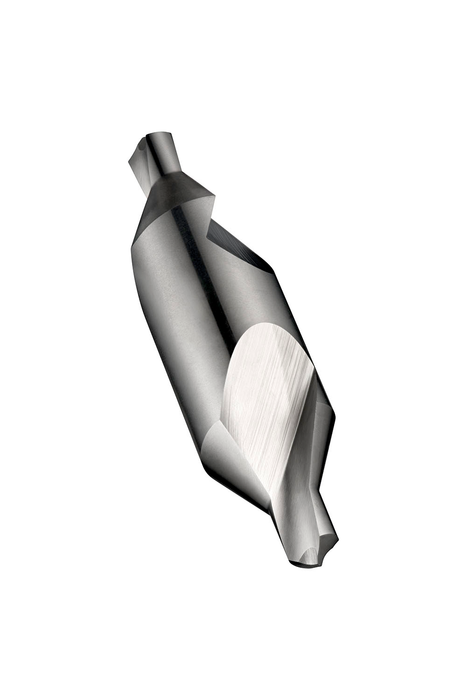

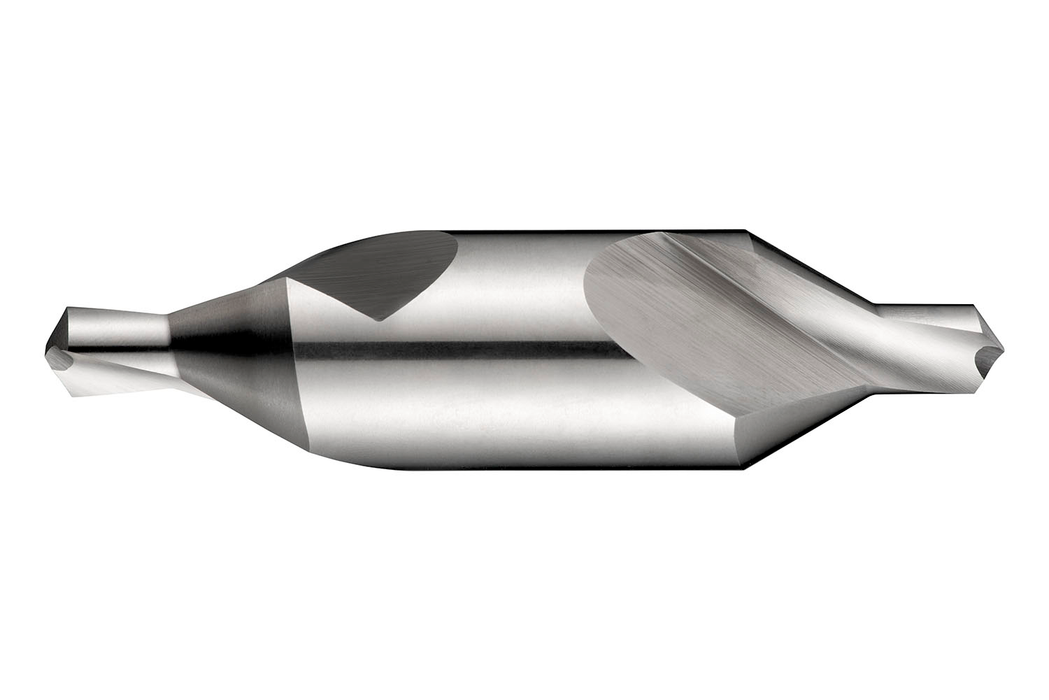

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 3.15mm drill diameter, a body diameter of 8.00mm and an overall length of 50mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2003.15X8.0
GradeBright
Product Number5969862
Product FamilyA200

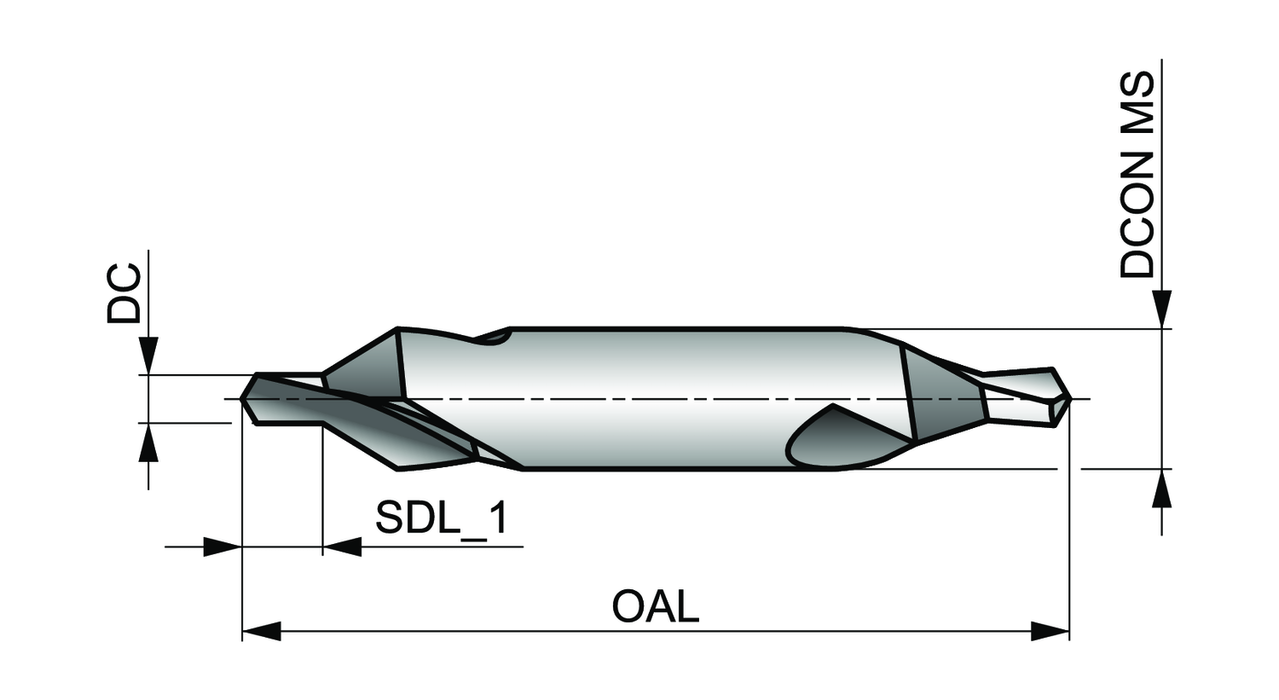

Dimensions
Cutting Diameter — in (DC)0.124"
Cutting Diameter — mm (DC)3.15 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 333A
Reference Numbers
EDP Number30769
EAN7320760030769
File Type Download
A2003.15X8.0 — Line Drawing PDF Download
