A201.75X3.5
A201.75X3.5
A201.75X3.5
A201.75X3.5

A201.75X3.5

SKU DOR5969885
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.81 CAD - $10.81 CAD
$10.81 CAD
$10.81 CAD - $10.81 CAD
$10.81 CAD

Sold in packs of: 1

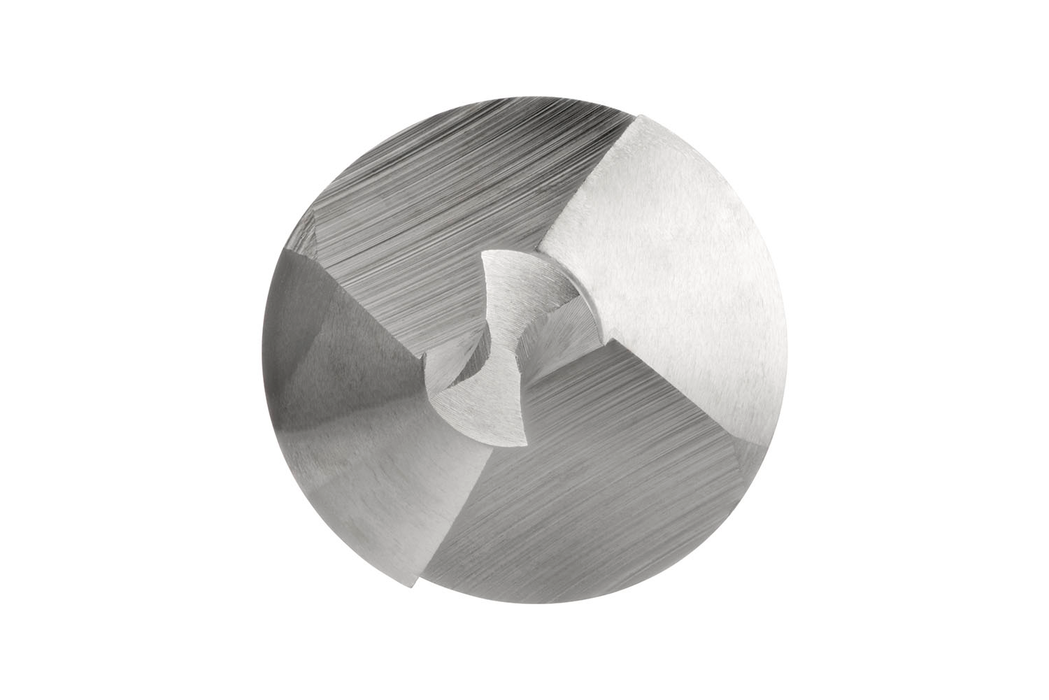

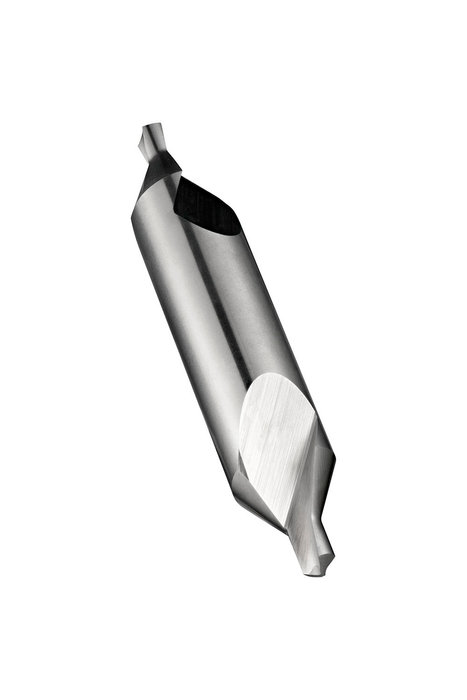

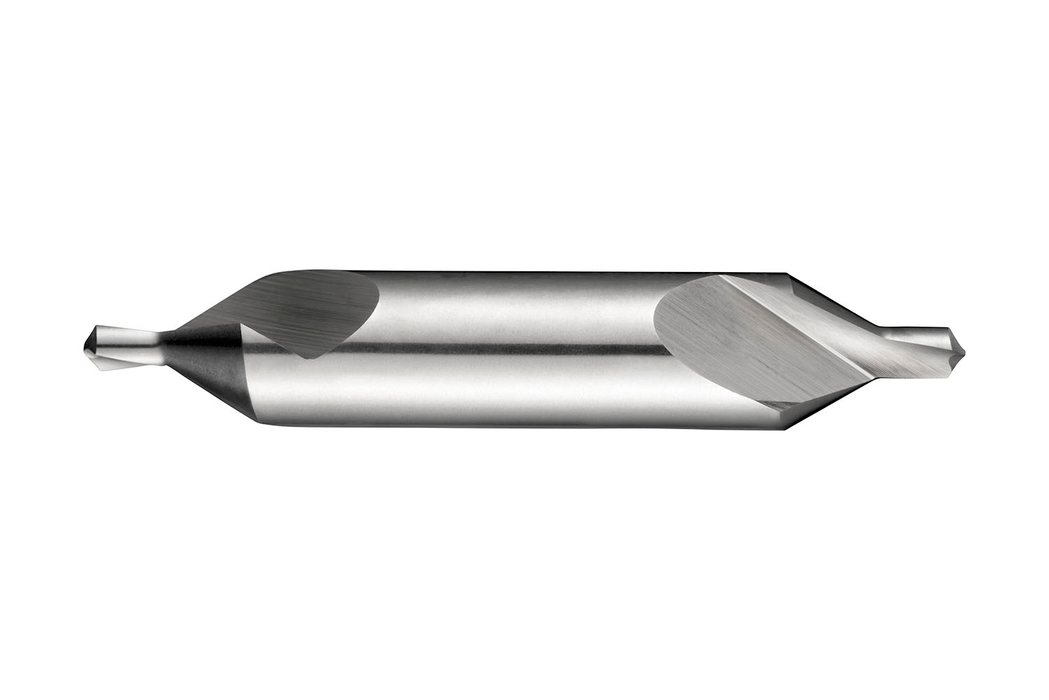

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 0.75mm drill diameter, a body diameter of 3.50mm and an overall length of 35mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A201.75X3.5
GradeBright
Product Number5969885
Product FamilyA201

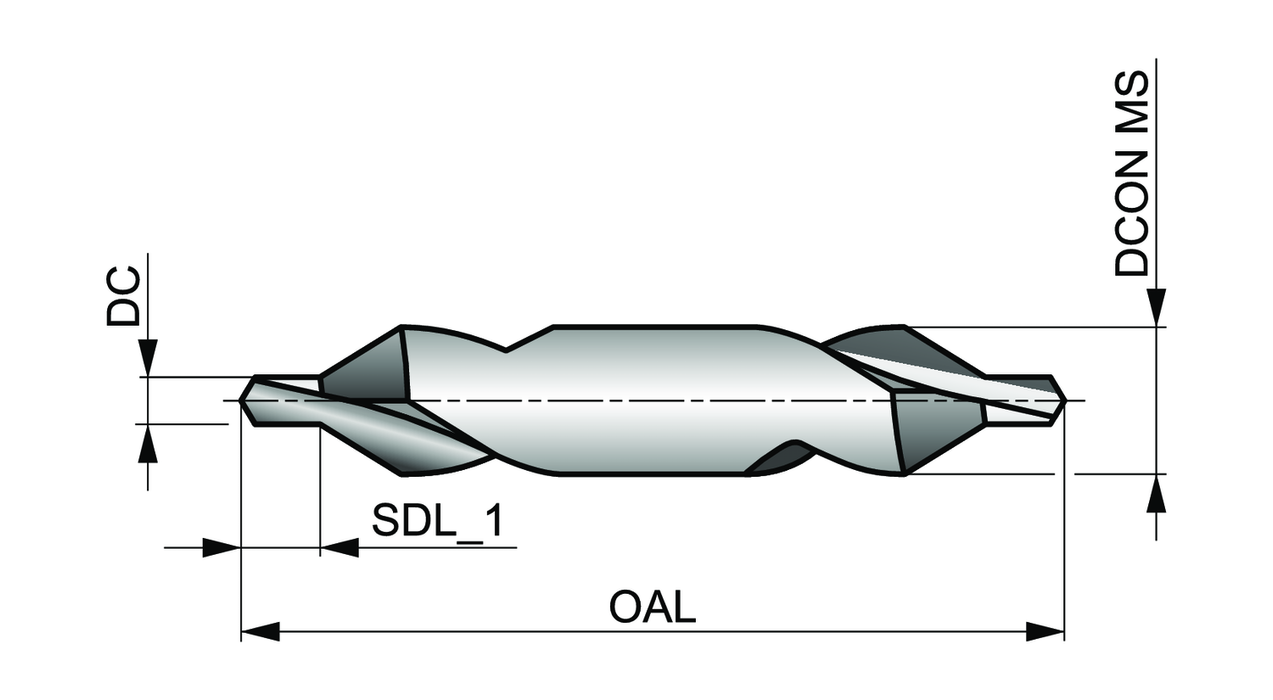

Dimensions
Cutting Diameter — in (DC)0.0295"
Cutting Diameter — mm (DC)0.75 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)122°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number215098
EAN7320760215098
File Type Download
A201.75X3.5 — Line Drawing PDF Download
