SKU DOR5969888
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.40 CAD - $9.40 CAD
$9.40 CAD
$9.40 CAD - $9.40 CAD
$9.40 CAD

Sold in packs of: 1

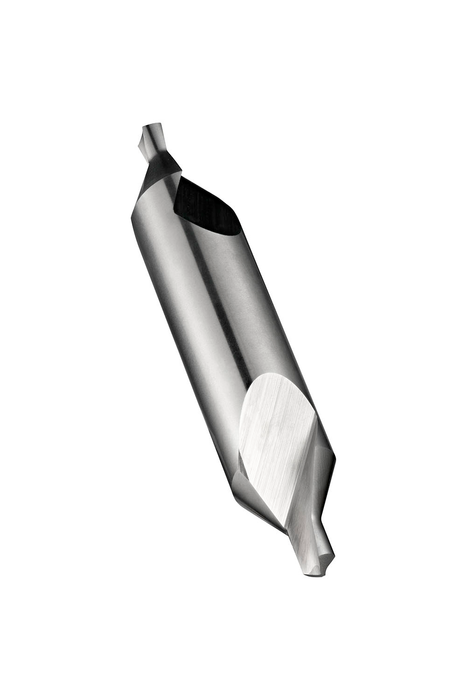

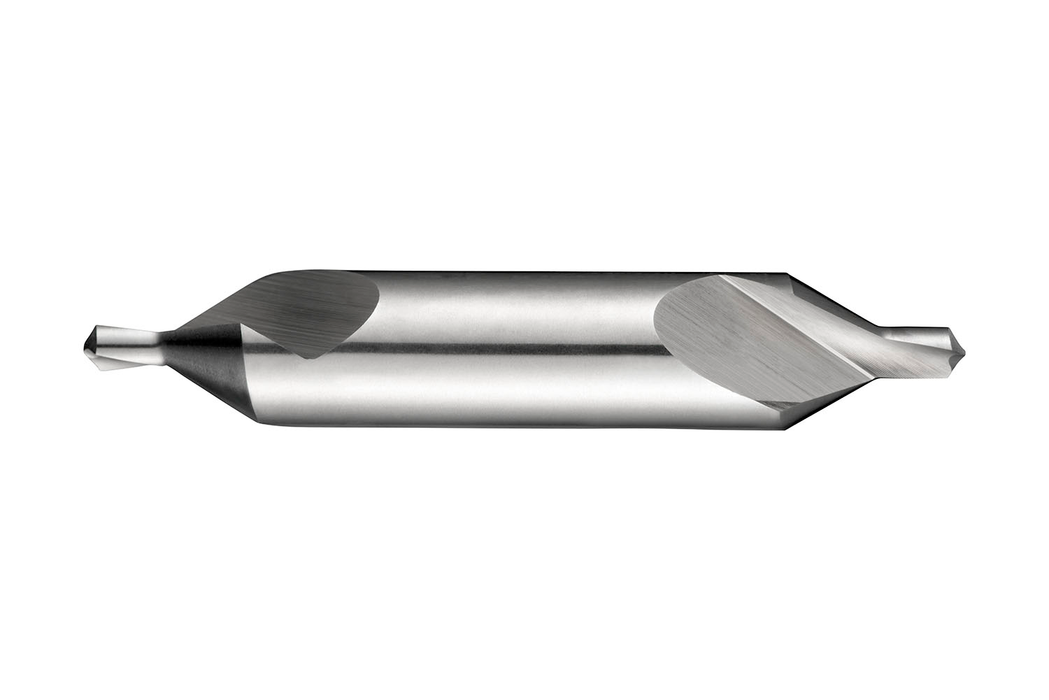

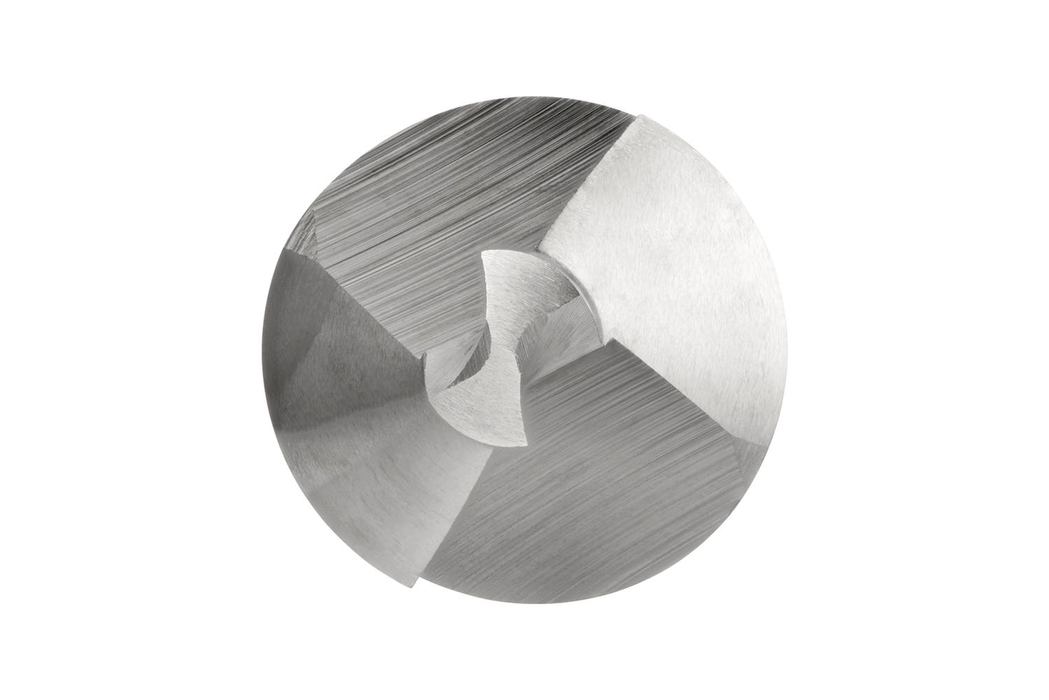

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 4.00mm and an overall length of 35mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2011.0X4.0
GradeBright
Product Number5969888
Product FamilyA201

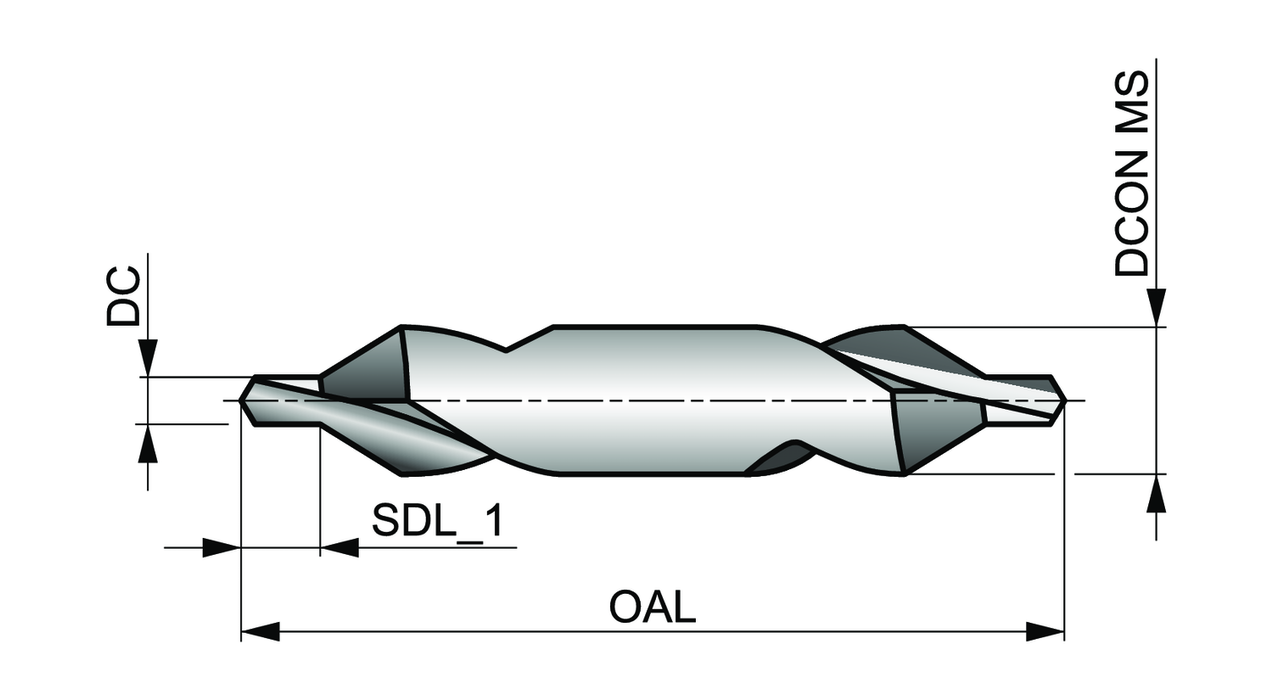

Dimensions
Cutting Diameter — in (DC)0.0394"
Cutting Diameter — mm (DC)1.0 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Drill Point Angle (SIG)122°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number215104
EAN7320760215104
File Type Download
A2011.0X4.0 — Line Drawing PDF Download
