A5208.7

A5208.7

SKU DOR5969966
by Dormer Pramet
Primary Use:

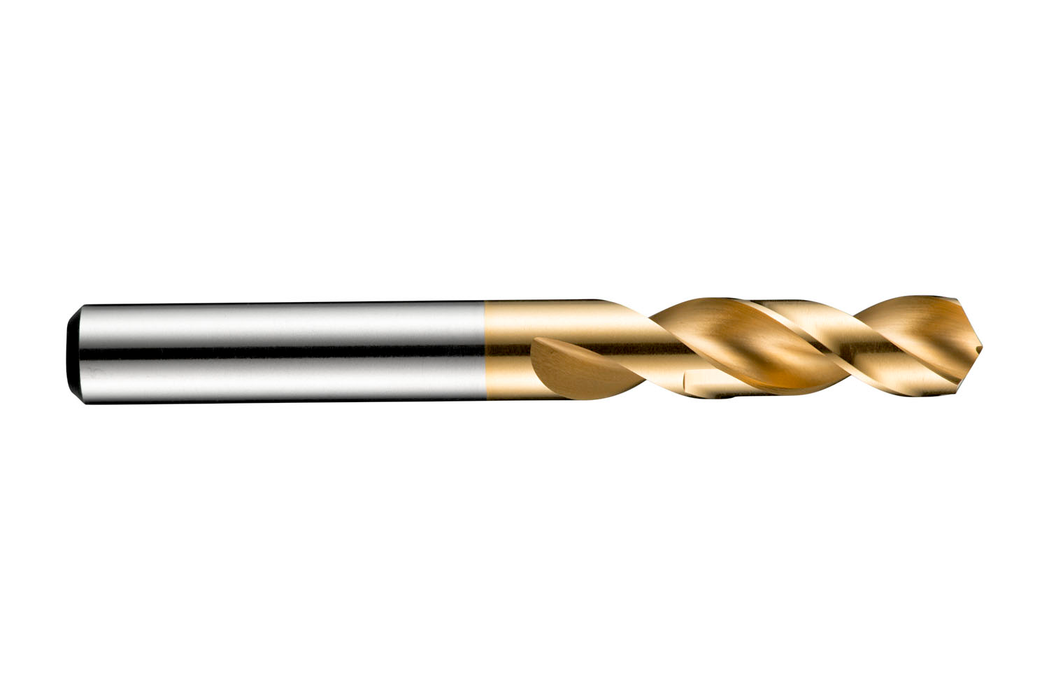

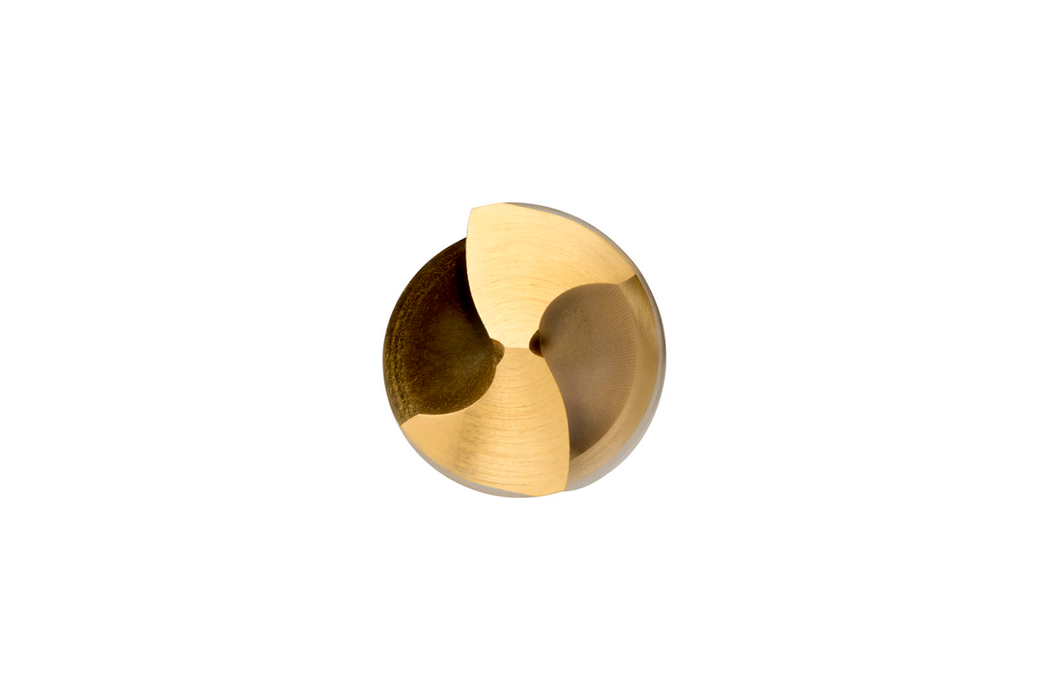

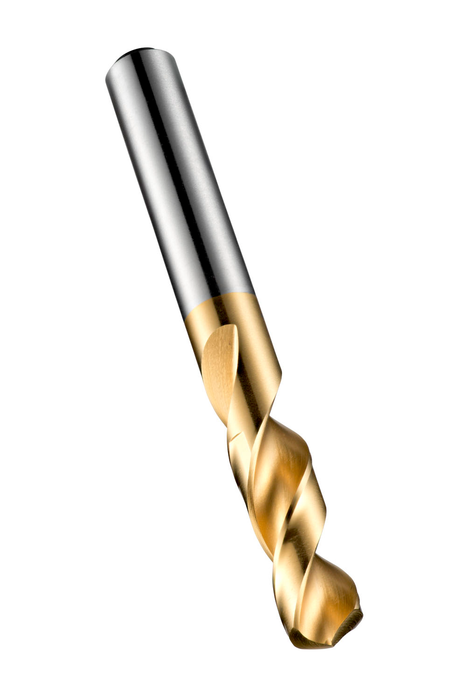

Stub length ADX drill with straight shank, diameter 8.7mm with an overall length of 84mm and flute length of 40mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$75.31 - $75.31
$75.31
$75.31 - $75.31
$75.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

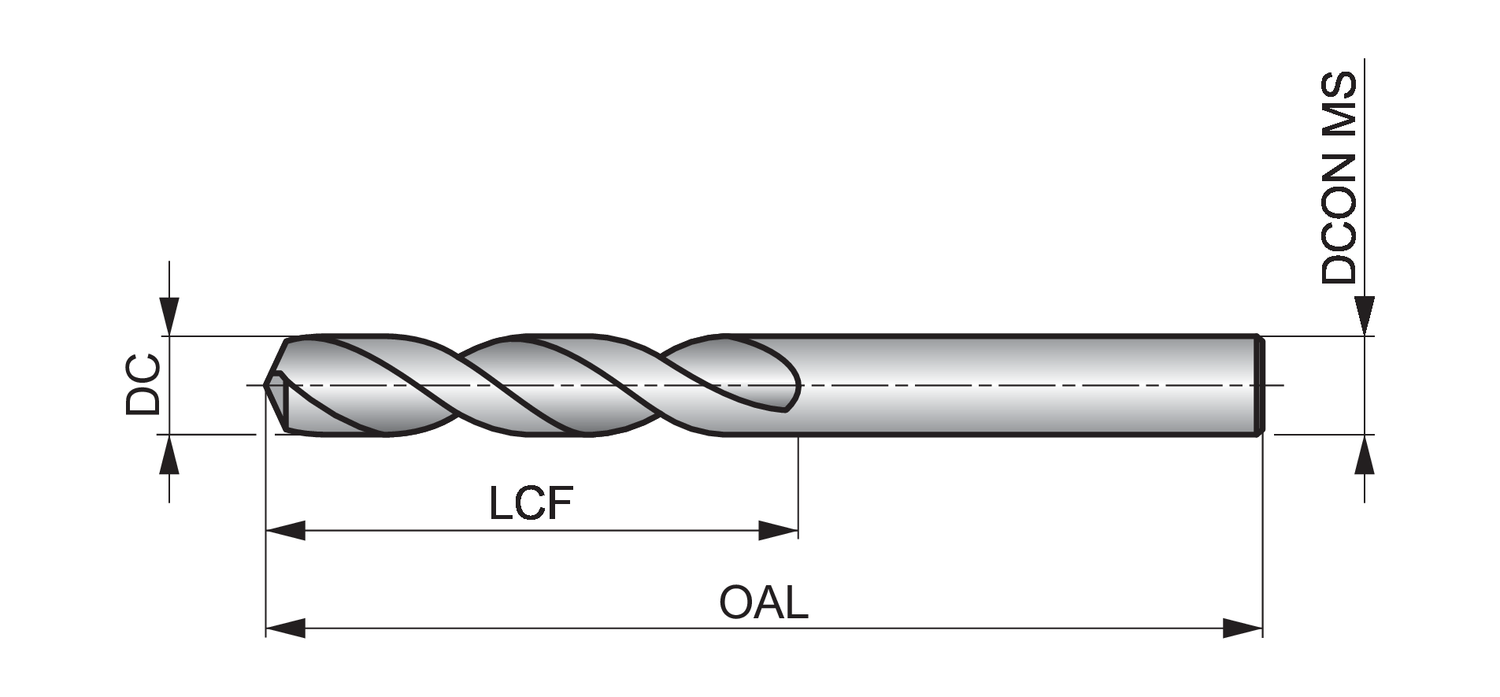

Material: HSS

Cutting Diameter - in (DC): 0.3425

Cutting Diameter - mm (DC): 8.7

Drill Point Angle - deg: 130

Flute Length: 1.5748

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.3071

Connetion Diameter: 0.3425

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 39472

EAN: 7320760039472

MFG Part Number: 5969966
