A413M4

SKU DOR5969991
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $48.19 CAD - Original price $48.19 CAD
Original price
$48.19 CAD
$48.19 CAD - $48.19 CAD
Current price $48.19 CAD

Sold in packs of: 1

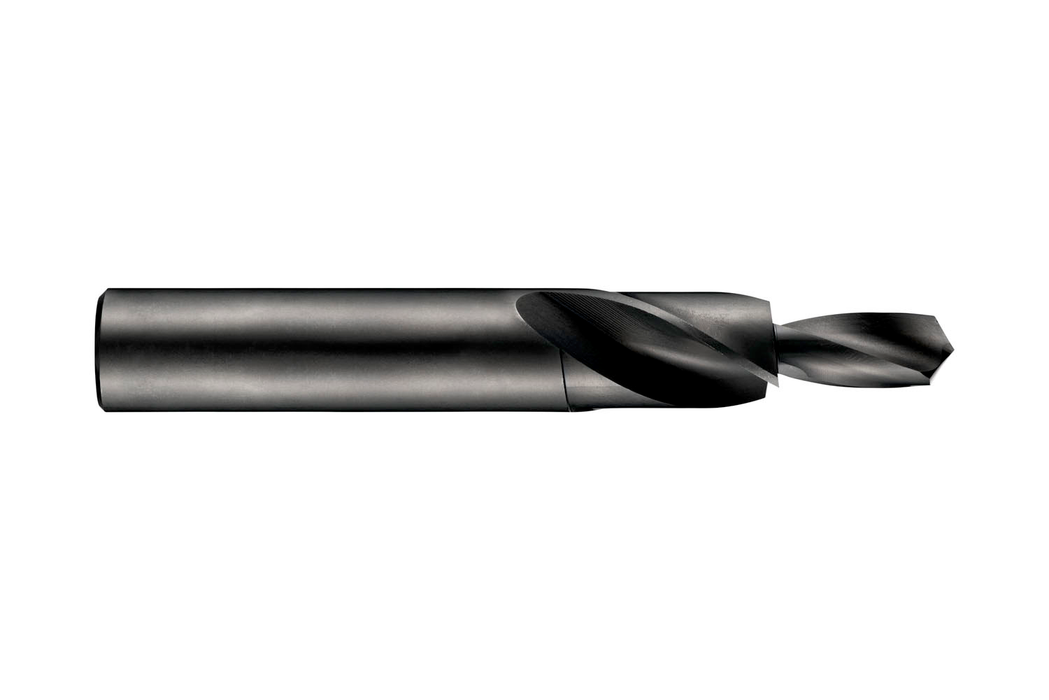

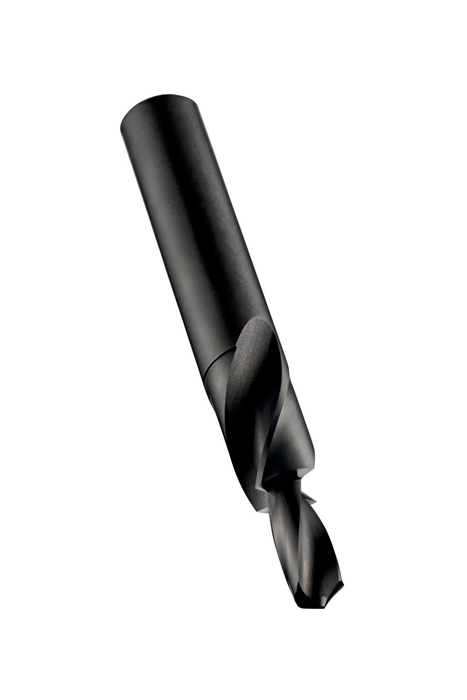

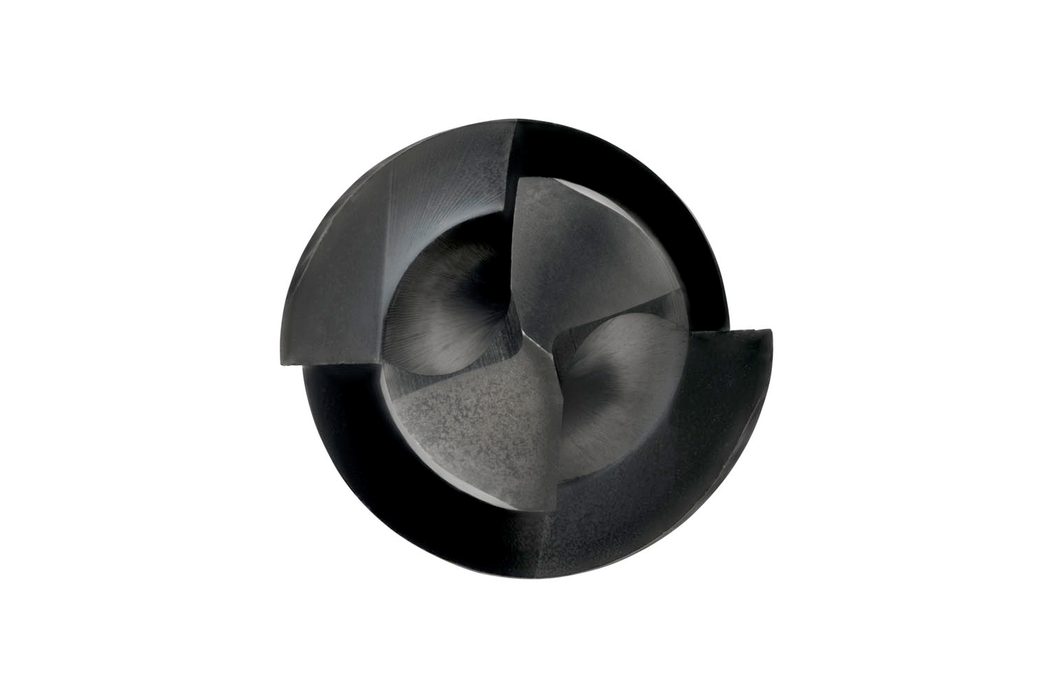

Step drill with 180° included step angle, straight shank and a drilling-pilot diameter of 4.50mm with a length of 11.00mm, a large diameter of 8.00mm and an overall length of 79mm, according to DORMER standard to produce a medium fit through hole and flat bottom seat for M4 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A413M4
GradeSteam Tempered
Product Number5969991
Product FamilyA413

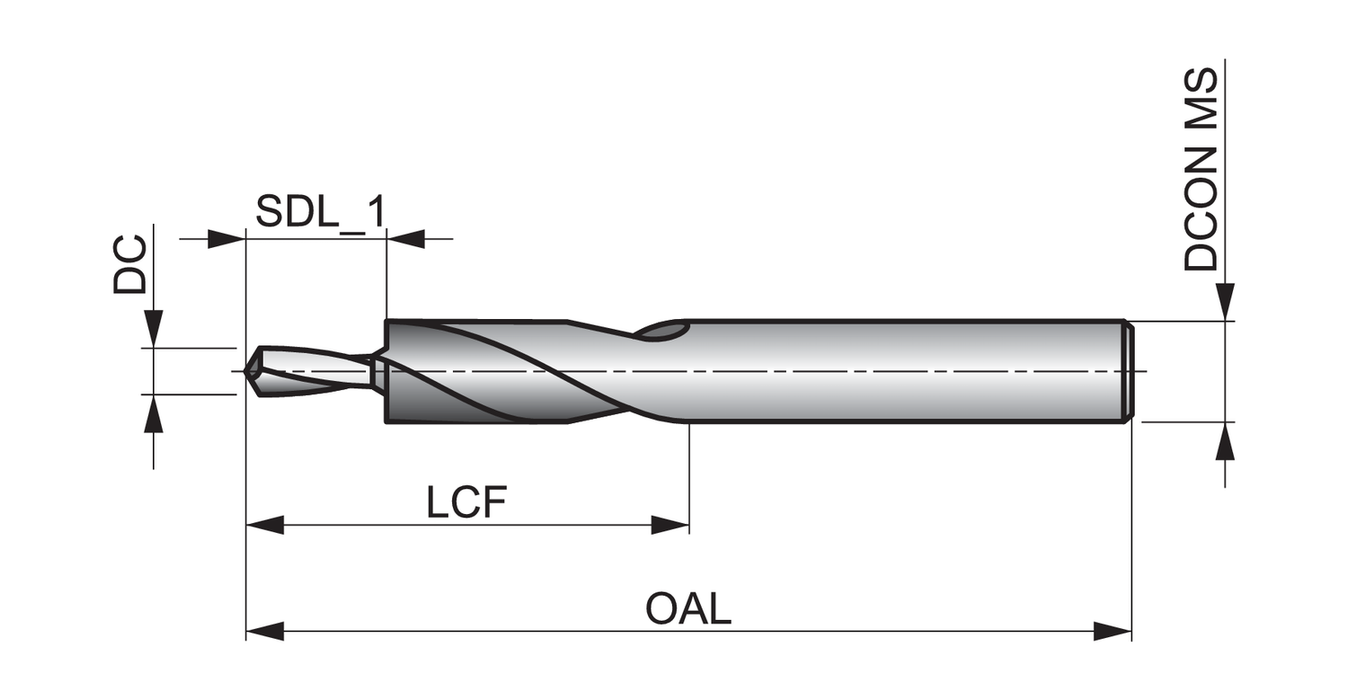

Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.4567"
Flute Length — mm (LCF)37.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M4
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number213711
EAN7320760213711
File Type Download
A413M4 — Line Drawing PDF Download
