A5209/32

A5209/32

SKU DOR5970027
by Dormer Pramet
Primary Use:

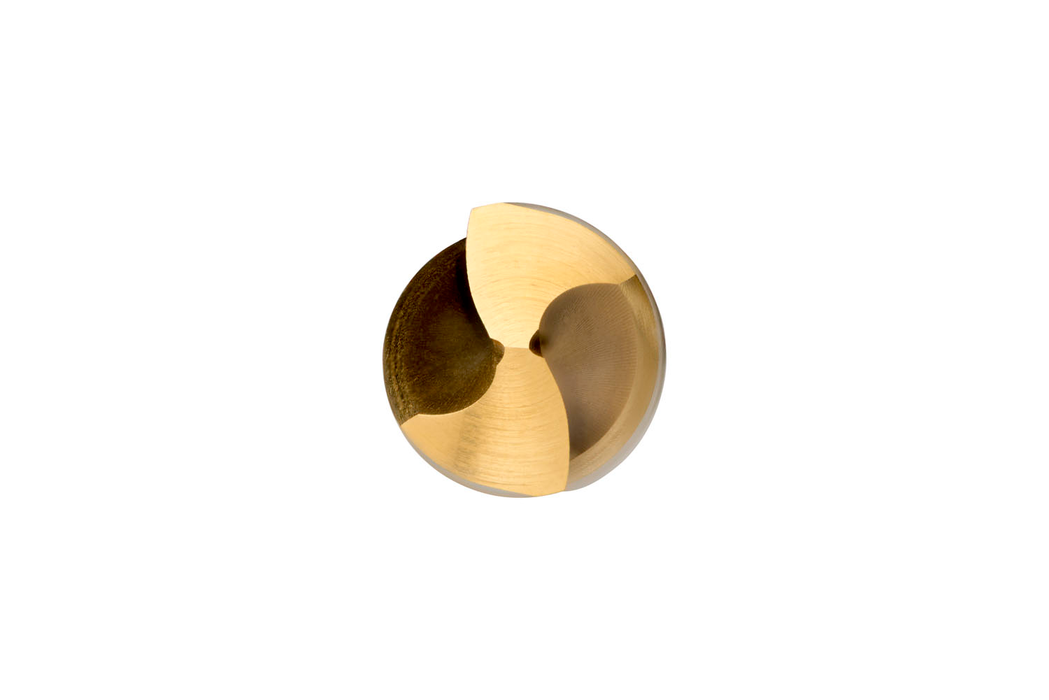

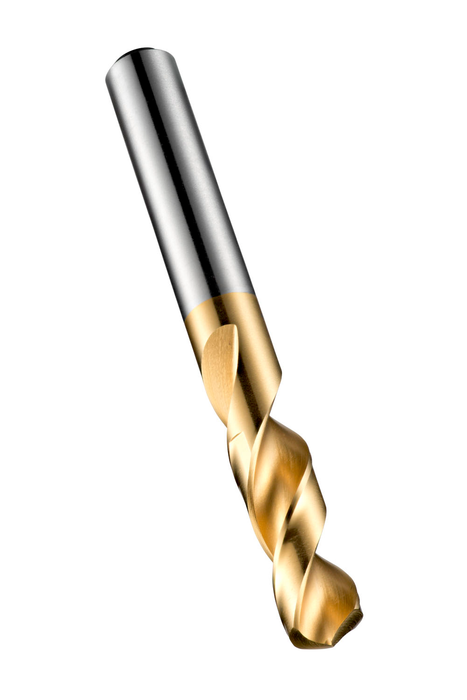

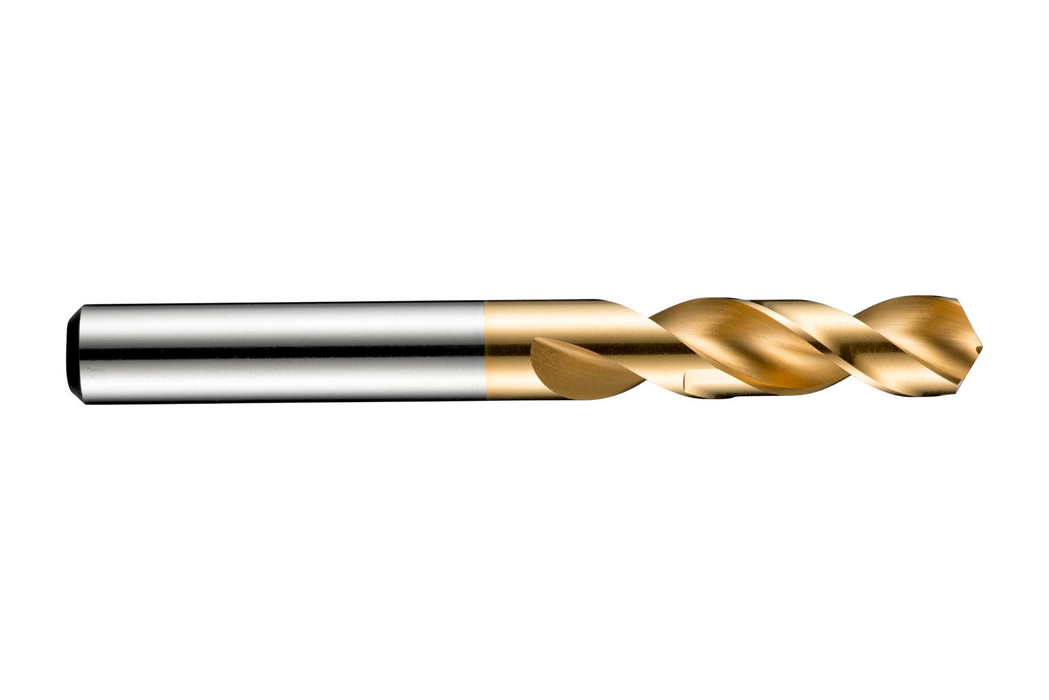

Stub length ADX drill with straight shank, diameter 0.2813" (9/32) with an overall length of 74mm and flute length of 34mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$40.11 - $40.11
$40.11
$40.11 - $40.11
$40.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

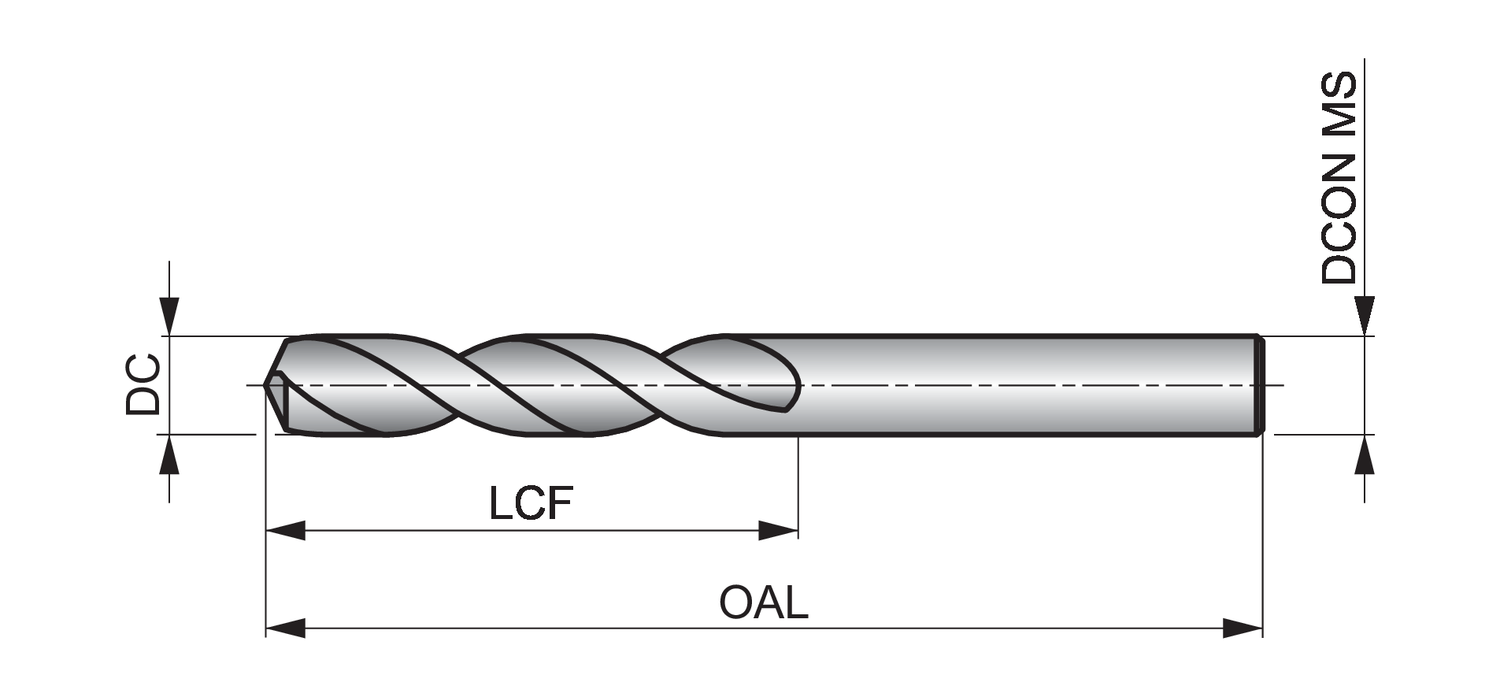

Material: HSS

Cutting Diameter - in (DC): 0.2813

Cutting Diameter - mm (DC): 7.14

Drill Point Angle - deg: 130

Flute Length: 1.3386

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.9134

Connetion Diameter: 0.2811

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/32

Grade: TiN

EDP: 171363

EAN: 7320760171363

MFG Part Number: 5970027
