A5101/8

A5101/8

SKU DOR5970041
by Dormer Pramet
Primary Use: Possible Use:

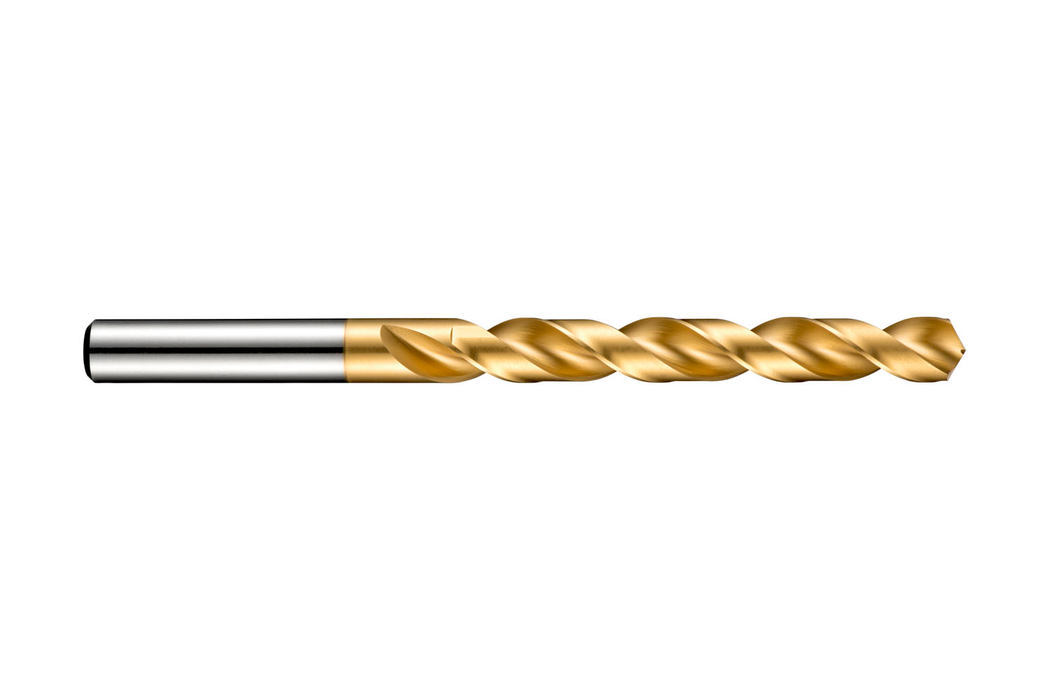

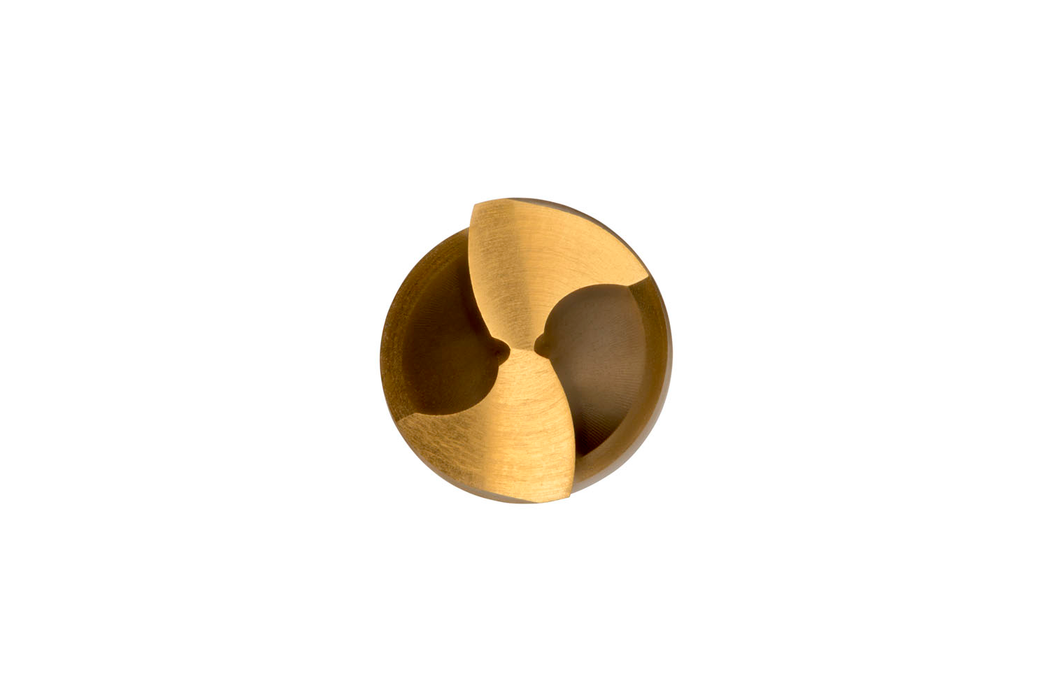

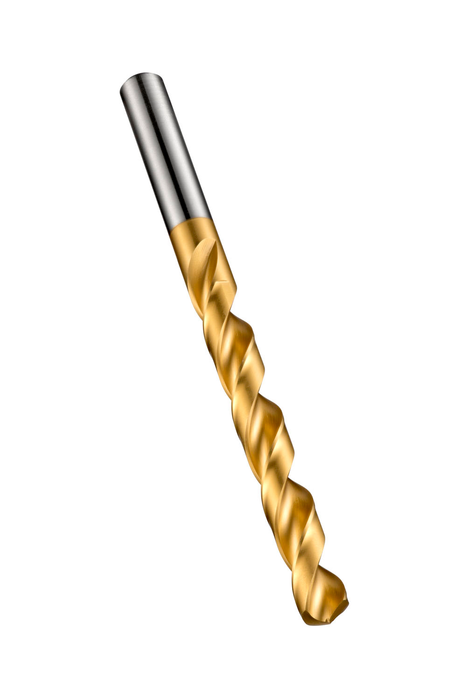

Jobber length ADX drill with straight shank, diameter 0.1250" (1/8) with an overall length of 65mm and flute length of 36mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$20.99 - $20.99
$20.99
$20.99 - $20.99
$20.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

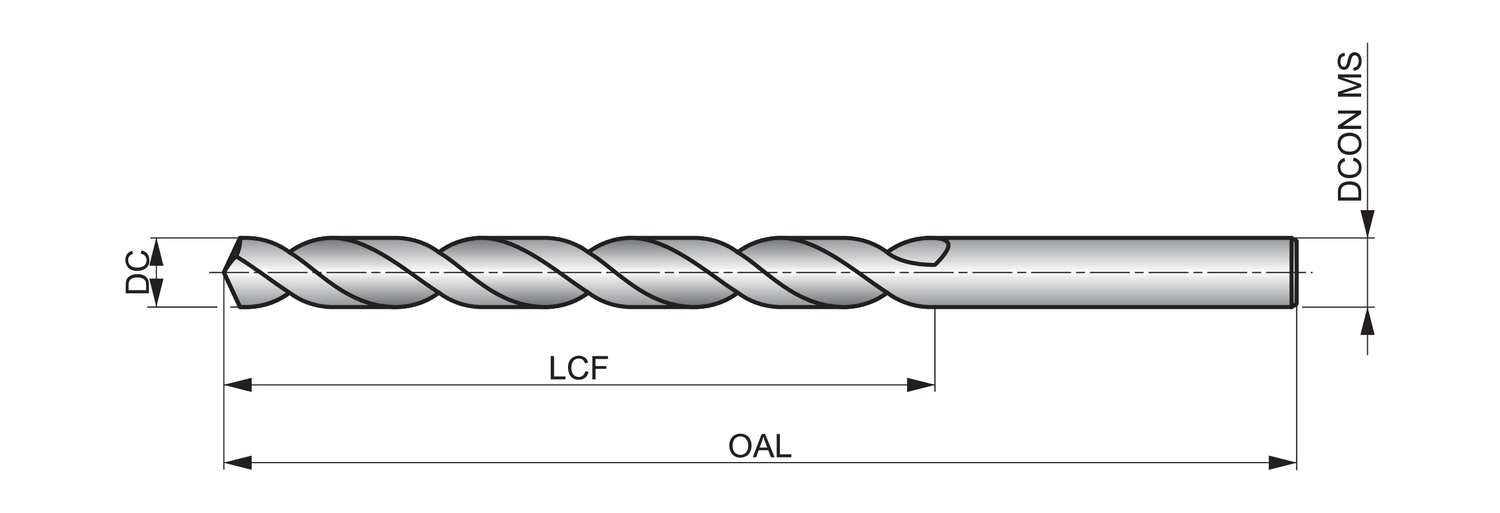

Cutting Diameter - in (DC): 0.125

Cutting Diameter - mm (DC): 3.18

Drill Point Angle - deg: 130

Flute Length: 1.4173

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.5591

Connetion Diameter: 0.1252

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/8

Grade: TiN

EDP: 168974

EAN: 7320760168974

MFG Part Number: 5970041
