A413M6

A413M6

SKU DOR5970102
by Dormer Pramet
Primary Use: Possible Use:

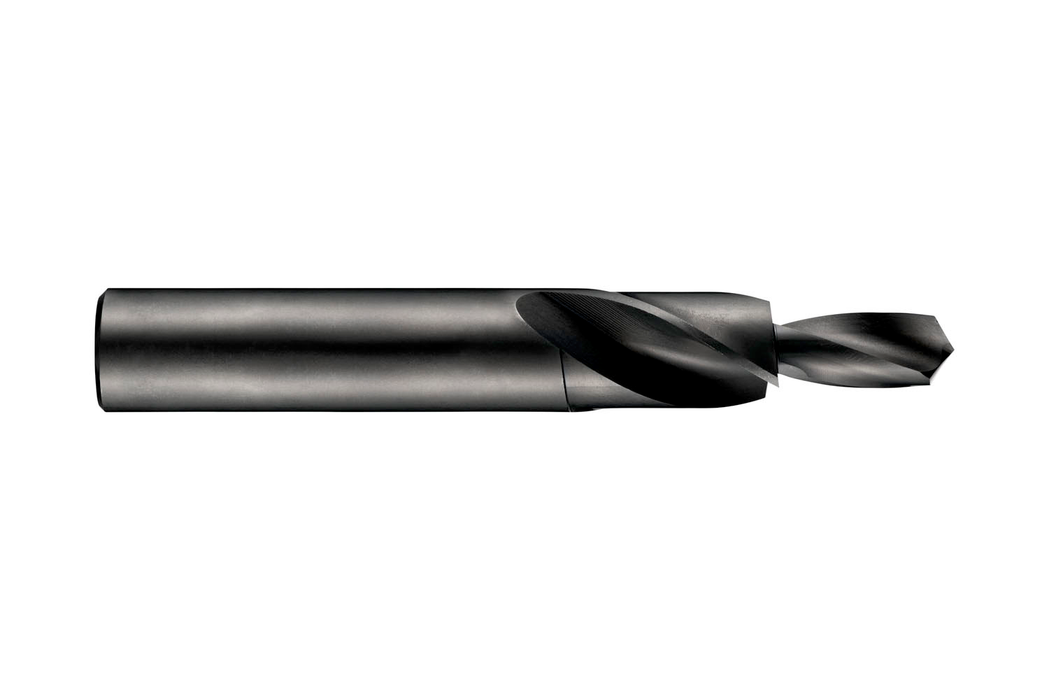

Step drill with 180° included step angle, straight shank and a drilling-pilot diameter of 6.60mm with a length of 15.00mm, a large diameter of 11.00mm and an overall length of 95mm, according to DORMER standard to produce a medium fit through hole and flat bottom seat for M6 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$64.89 - $64.89
$64.89
$64.89 - $64.89
$64.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

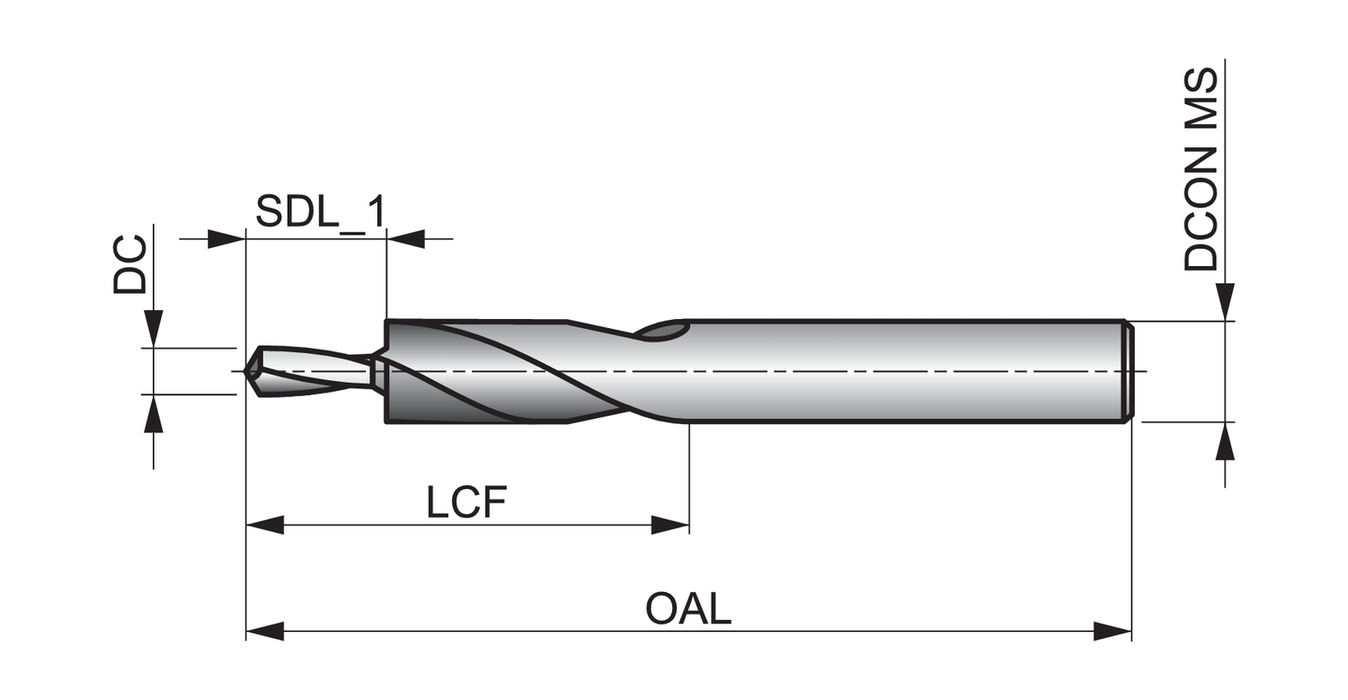

Material: HSS

Cutting Diameter - in (DC): 0.2598

Cutting Diameter - mm (DC): 6.6

Drill Point Angle - deg: 118

Flute Length: 1.8504

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.7402

Connetion Diameter: 0.4331

Tool Direction: Right

Diameter Size: M6

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 213735

EAN: 7320760213735

MFG Part Number: 5970102
