A51011/32

A51011/32

SKU DOR5970136
by Dormer Pramet
Primary Use: Possible Use:

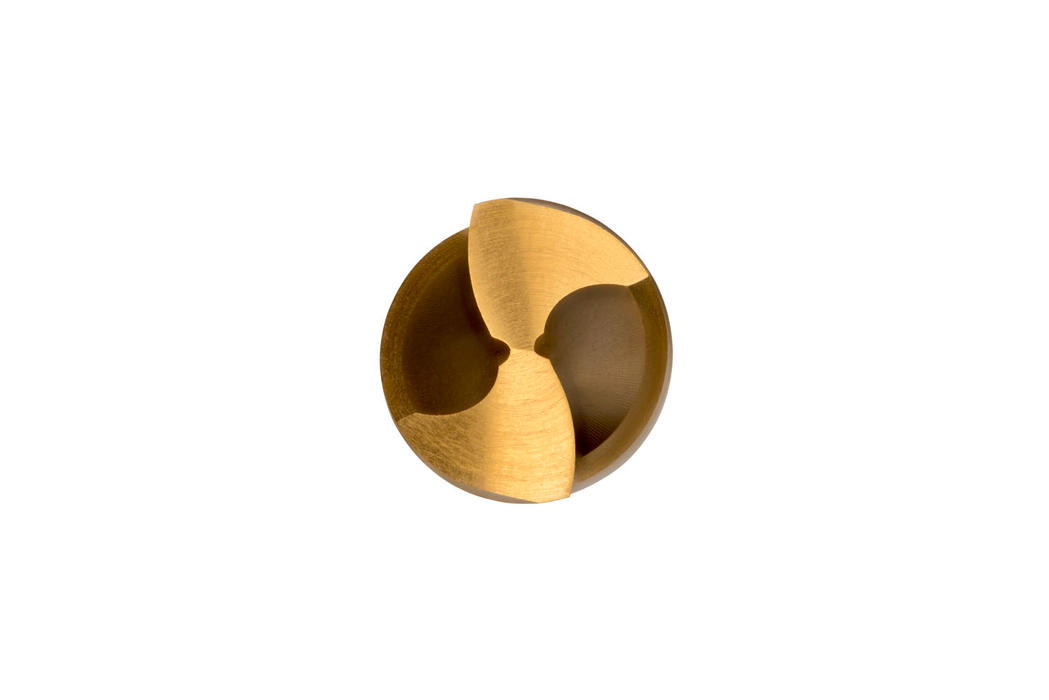

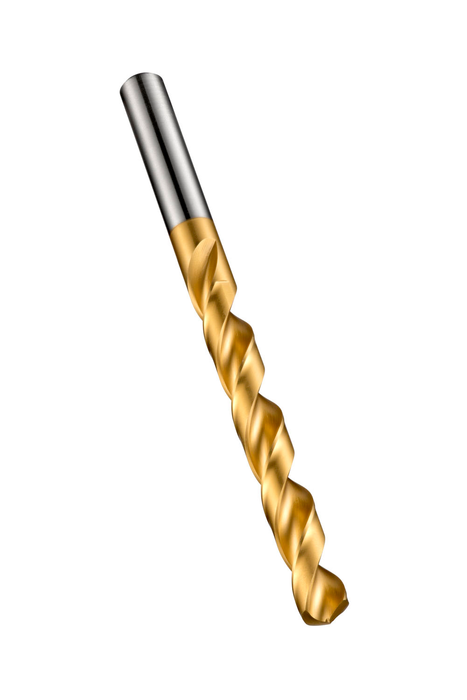

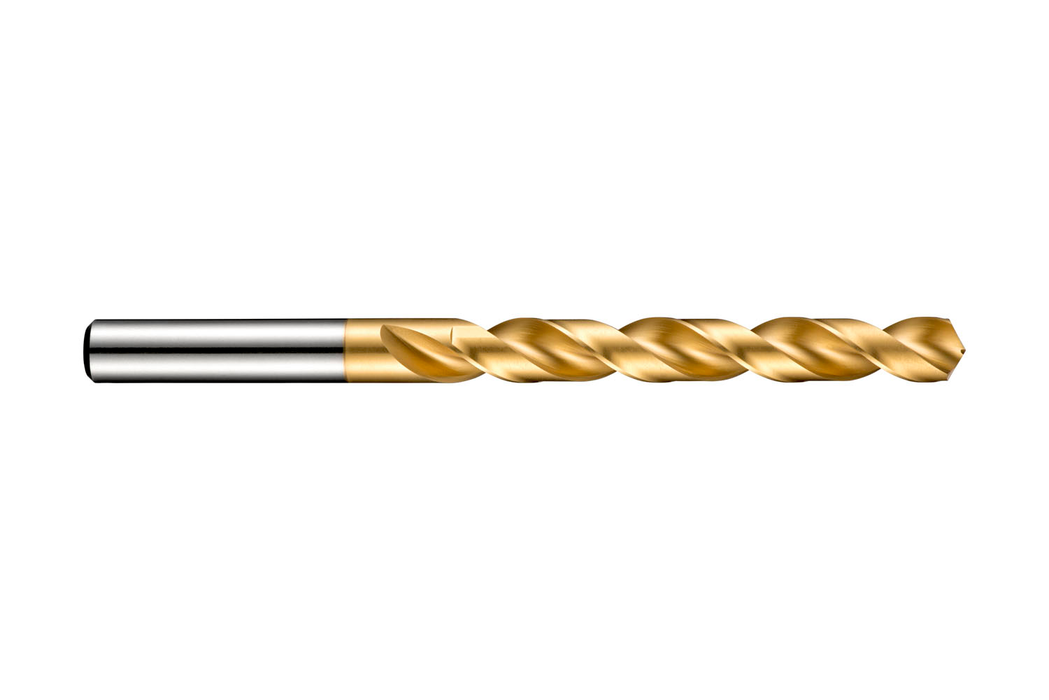

Jobber length ADX drill with straight shank, diameter 0.3438" (11/32) with an overall length of 125mm and flute length of 81mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$45.46 - $45.46
$45.46
$45.46 - $45.46
$45.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

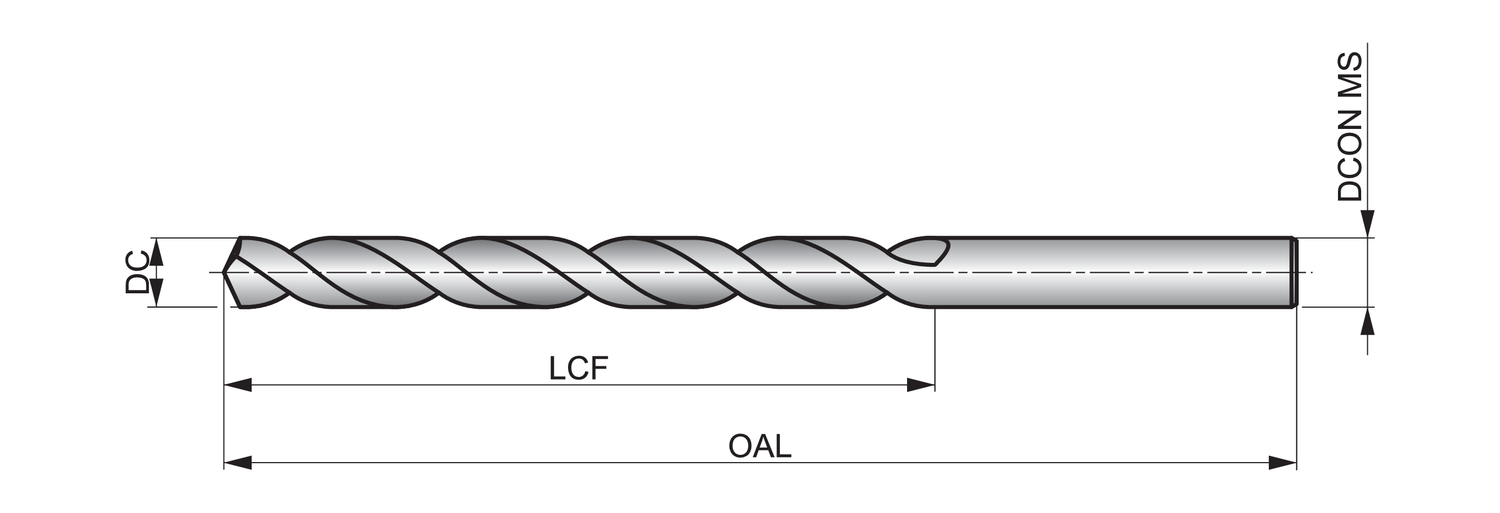

Cutting Diameter - in (DC): 0.3438

Cutting Diameter - mm (DC): 8.73

Drill Point Angle - deg: 130

Flute Length: 3.189

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.9213

Connetion Diameter: 0.3437

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 11/32

Grade: TiN

EDP: 169117

EAN: 7320760169117

MFG Part Number: 5970136
