A52013/32

A52013/32

SKU DOR5970232
by Dormer Pramet
Primary Use:

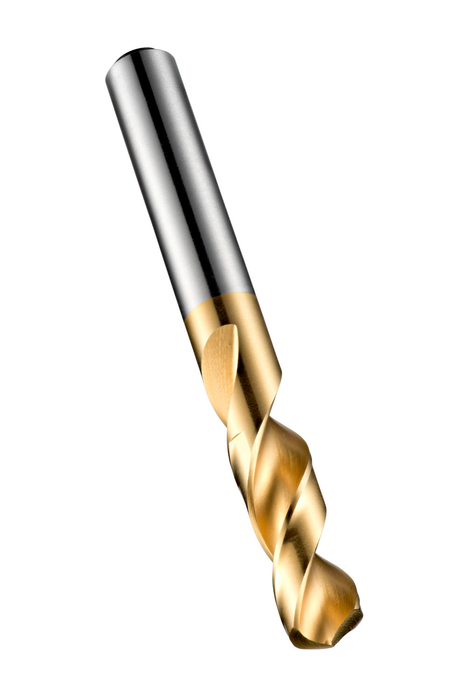

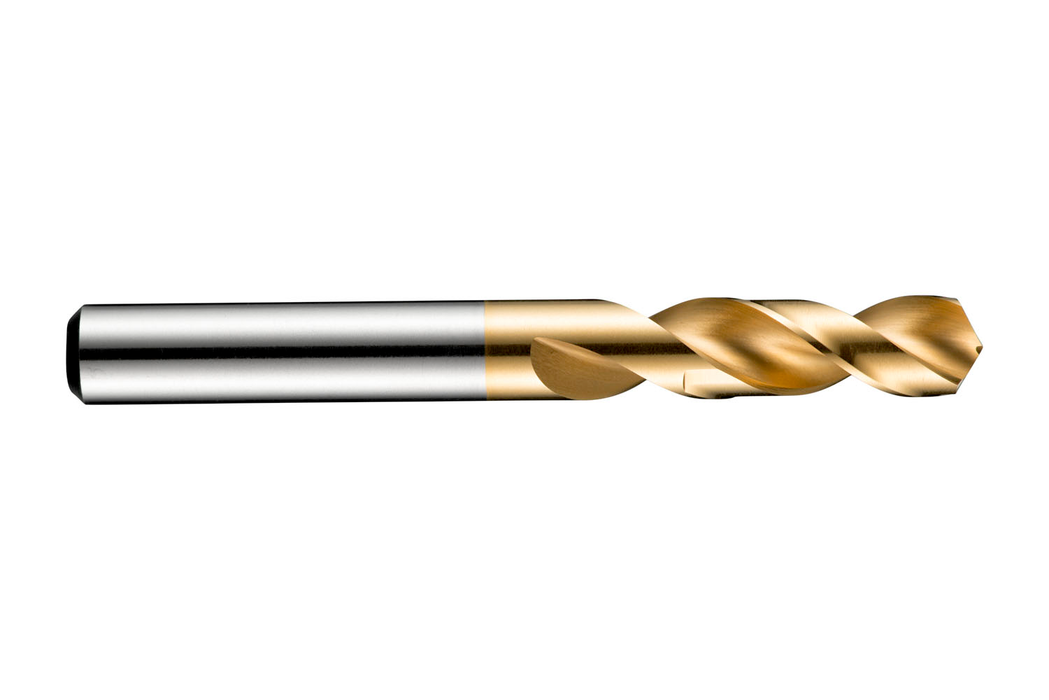

Stub length ADX drill with straight shank, diameter 0.4063" (13/32) with an overall length of 89mm and flute length of 43mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$66.86 - $66.86
$66.86
$66.86 - $66.86
$66.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

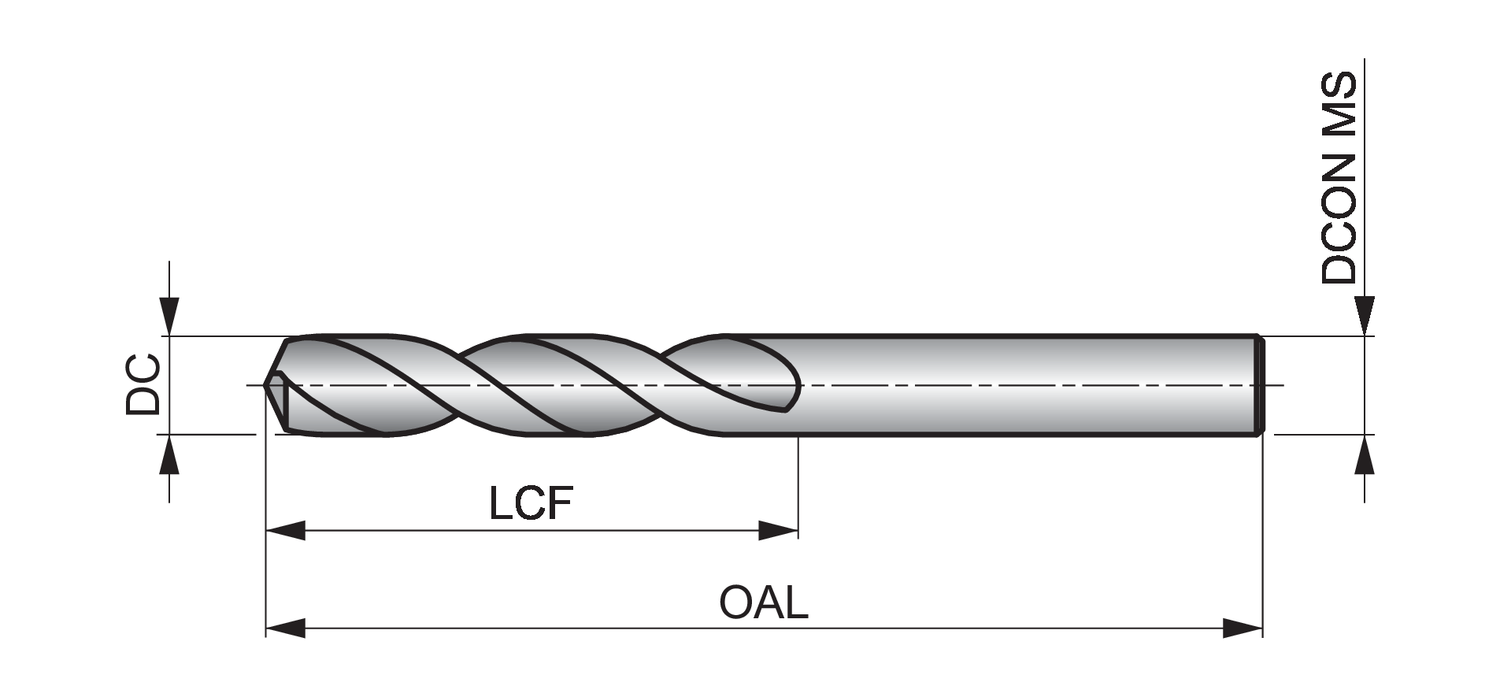

Cutting Diameter - in (DC): 0.4063

Cutting Diameter - mm (DC): 10.32

Drill Point Angle - deg: 130

Flute Length: 1.6929

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.5039

Connetion Diameter: 0.4063

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 13/32

Grade: TiN

EDP: 171448

EAN: 7320760171448

MFG Part Number: 5970232
