SKU DOR5970234
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.30 CAD - $56.30 CAD
$56.30 CAD
$56.30 CAD - $56.30 CAD
$56.30 CAD

Sold in packs of: 1

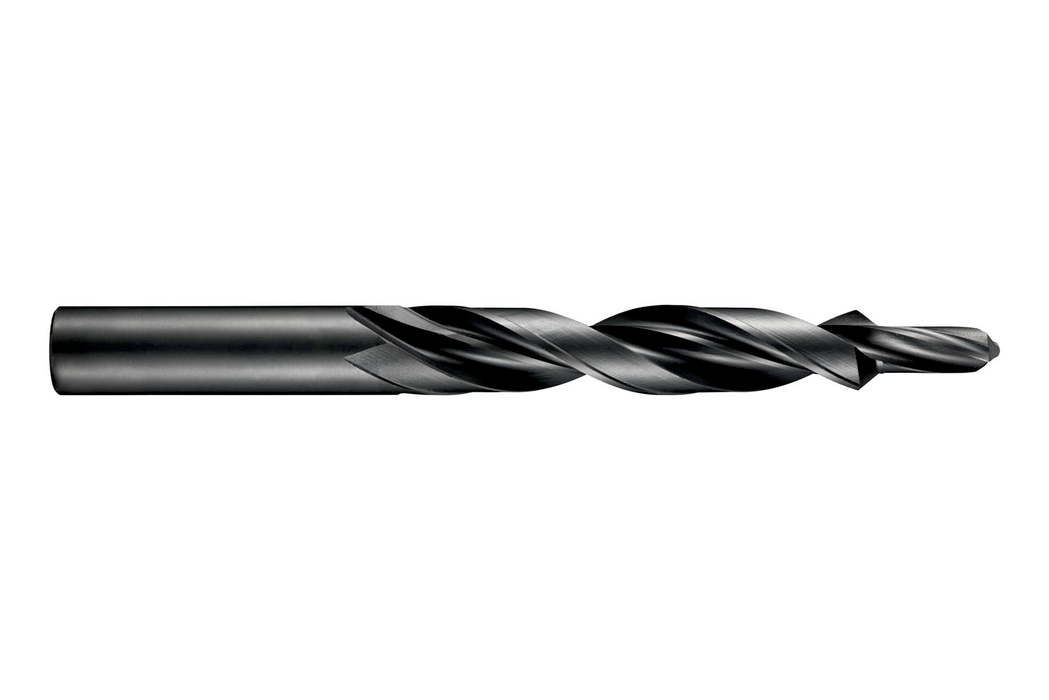

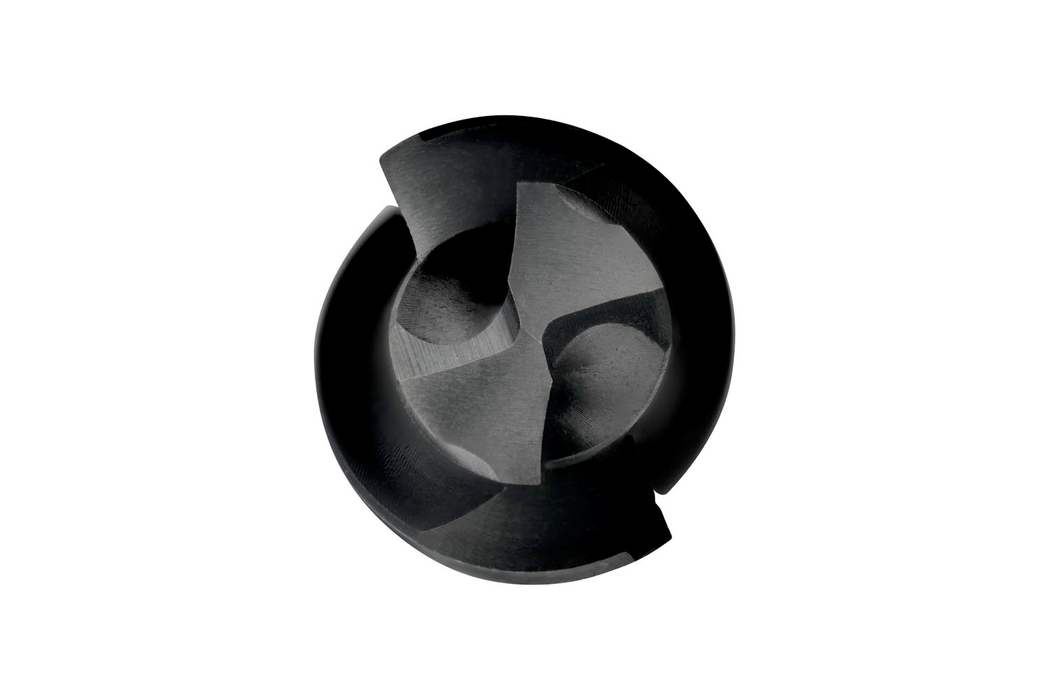

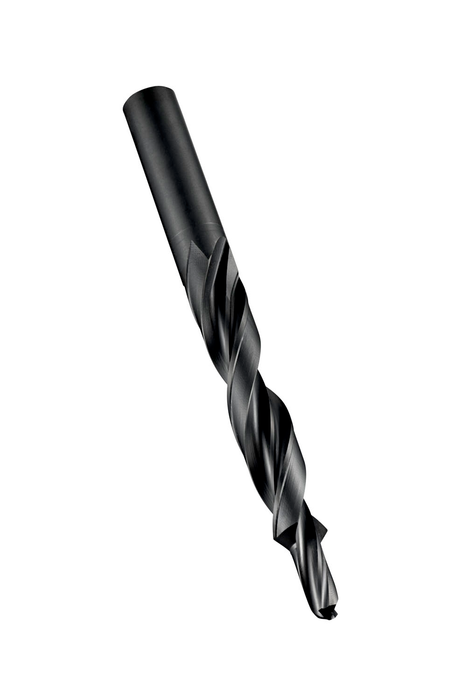

Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 3.20mm with a length of 9.00mm, a large diameter of 6.00mm and an overall length of 93mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M3 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A400M3
GradeSteam Tempered
Product Number5970234
Product FamilyA400

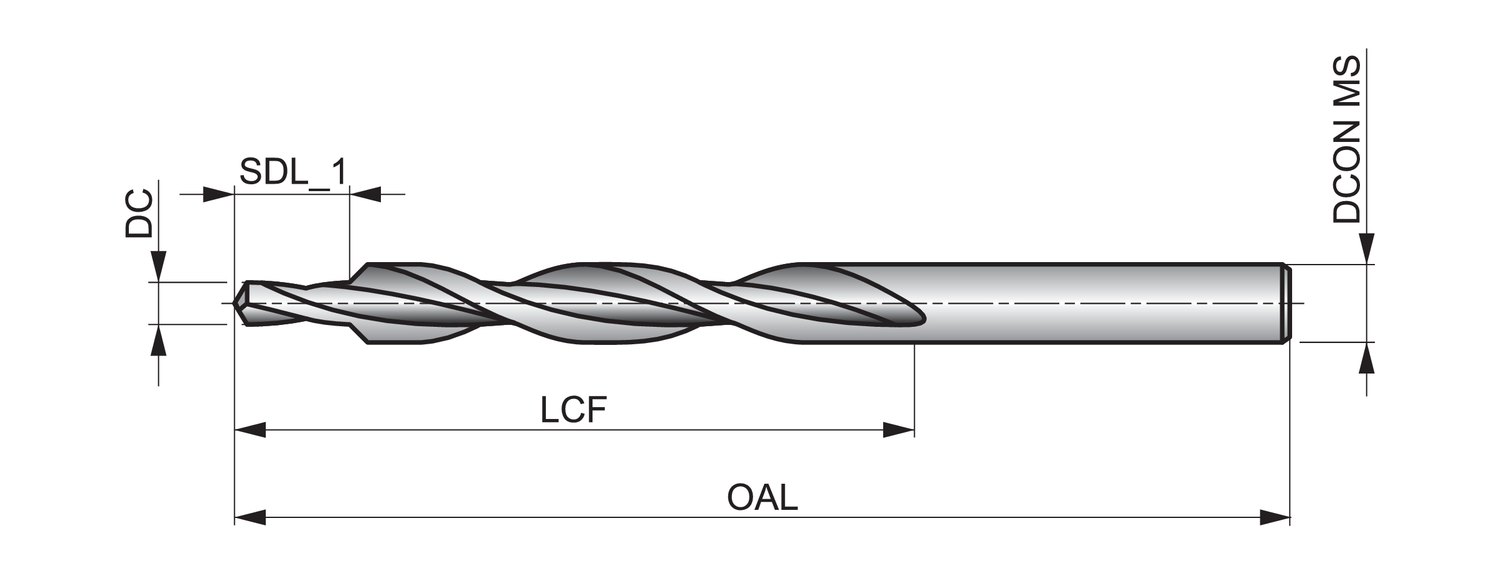

Dimensions
Cutting Diameter — in (DC)0.126"
Cutting Diameter — mm (DC)3.2 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M3
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8374
Reference Numbers
EDP Number34316
EAN7320760034316
File Type Download
A400M3 — 3D Model STP Download
A400M3 — Line Drawing PDF Download
