A400M4

A400M4

SKU DOR5970241
by Dormer Pramet
Primary Use: Possible Use:

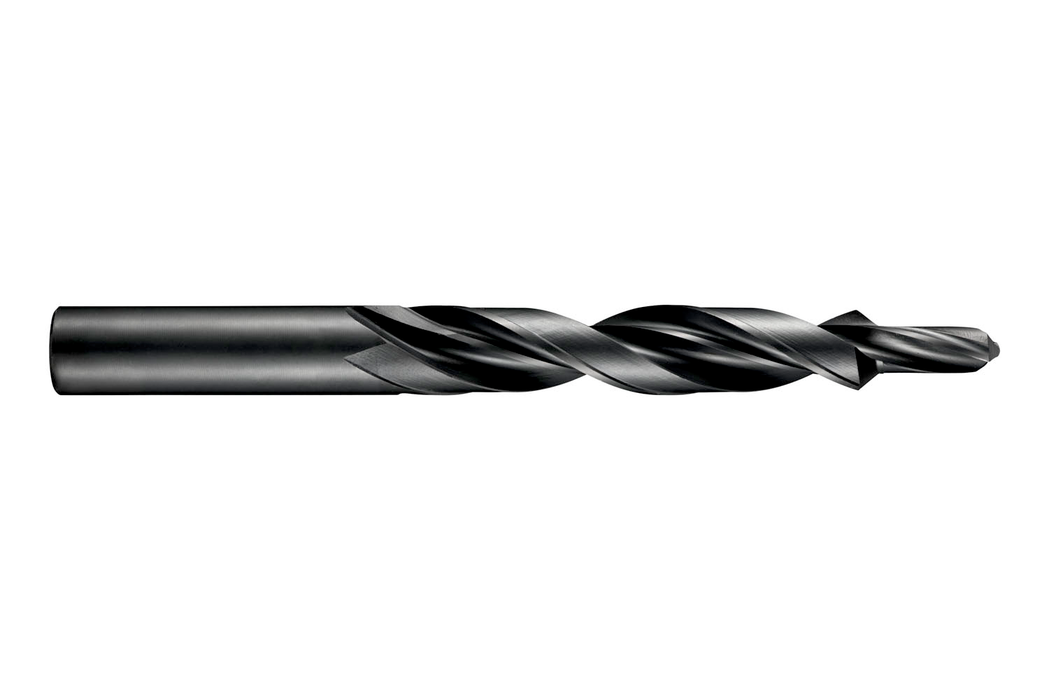

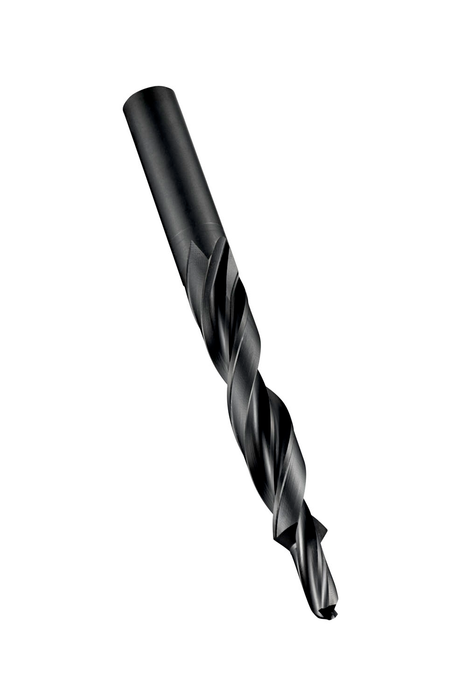

Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 4.30mm with a length of 11.00mm, a large diameter of 8.00mm and an overall length of 117mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M4 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$65.37 - $65.37
$65.37
$65.37 - $65.37
$65.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

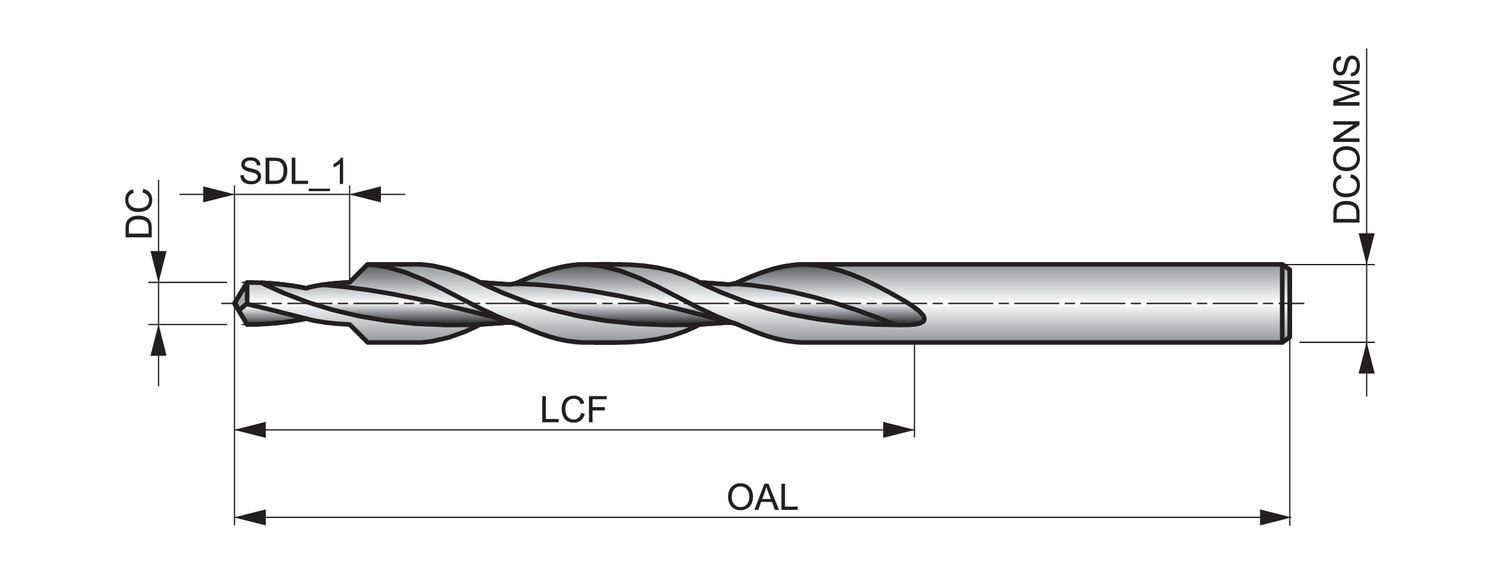

Material: HSS

Cutting Diameter - in (DC): 0.1693

Cutting Diameter - mm (DC): 4.3

Drill Point Angle - deg: 118

Flute Length: 2.9528

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.6063

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: M4

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 34323

EAN: 7320760034323

MFG Part Number: 5970241
