A400M5
Availability in Distribution Centers:
Sold in packs of: 1
Sold in packs of: 1

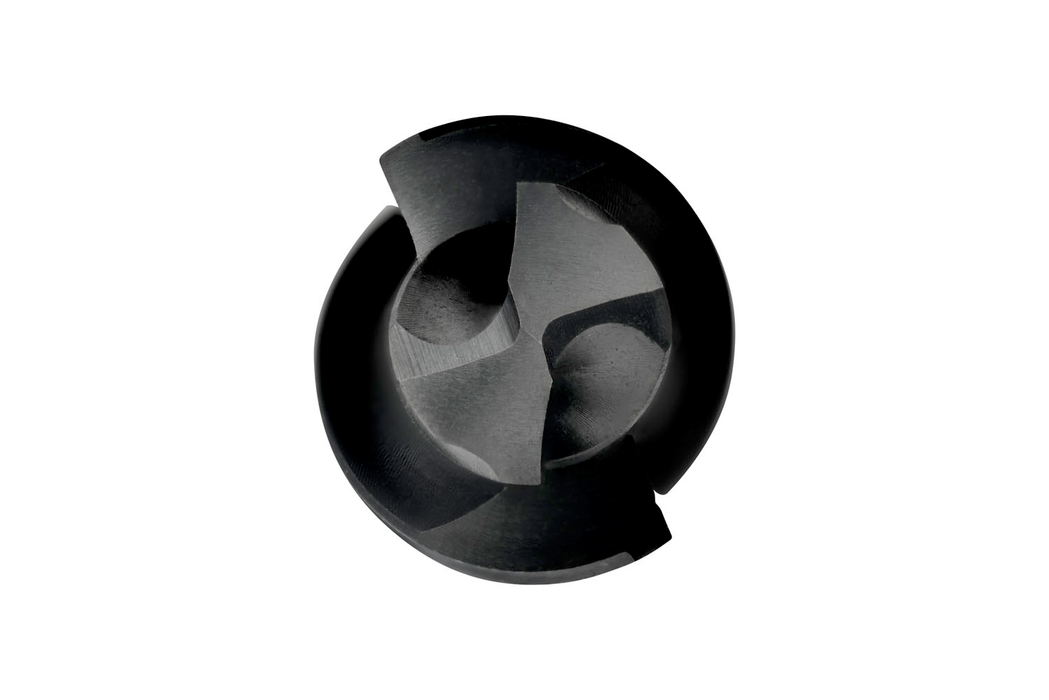

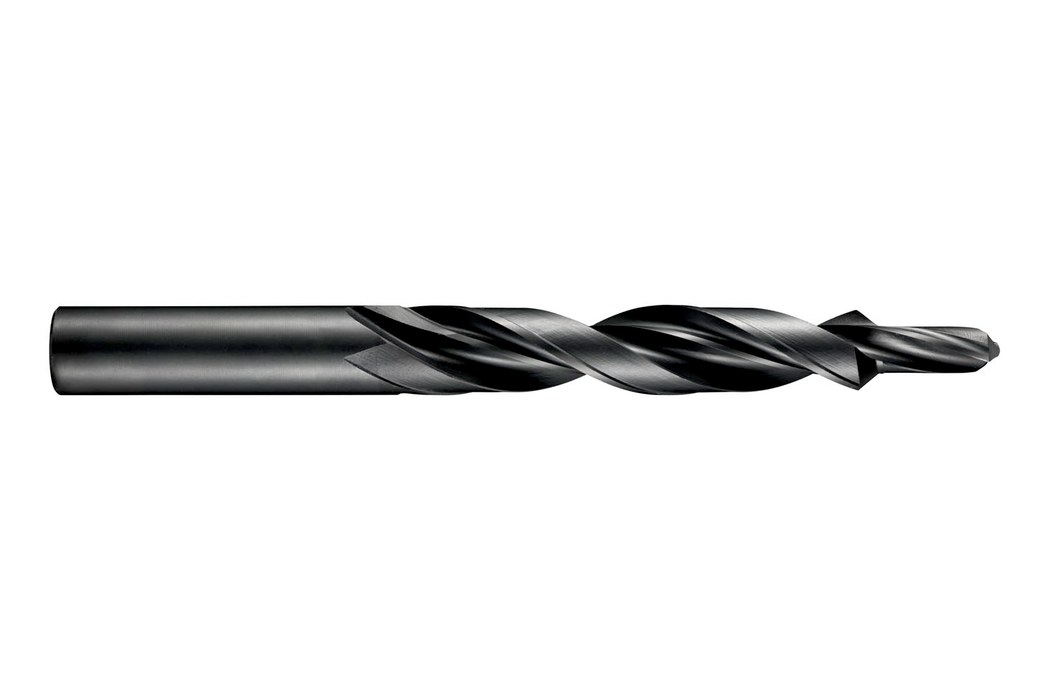

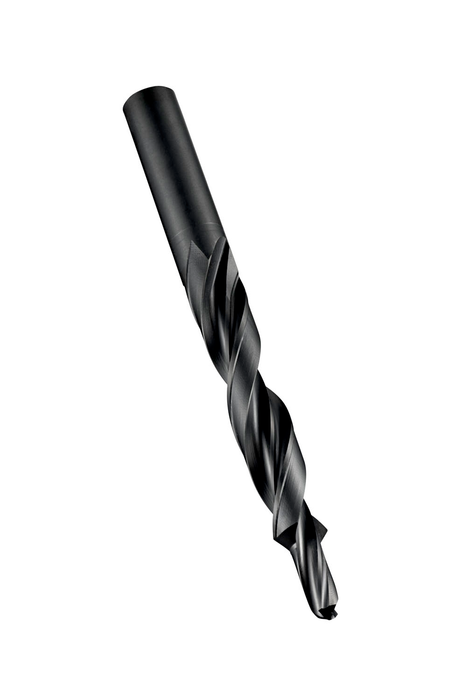

Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 5.30mm with a length of 13.00mm, a large diameter of 10.00mm and an overall length of 133mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M5 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron
For more information about this product, click here
| Identification | |
| Ordering Code (ANSI/ISO) | A400M5 |
| Grade | Steam Tempered |
| Product Number | 5970245 |
| Product Family | A400 |

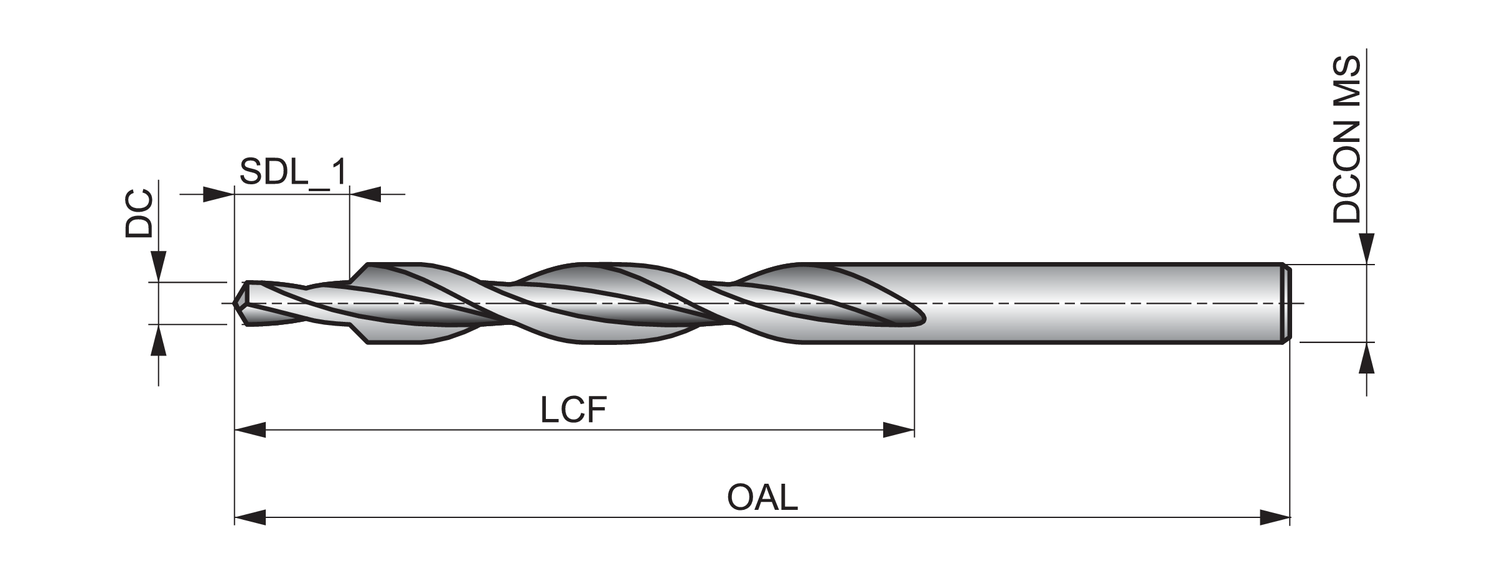

| Dimensions | |
| Cutting Diameter — in (DC) | 0.2087" |
| Cutting Diameter — mm (DC) | 5.3 mm |
| Overall Length — in (OAL) | 5.2362" |
| Overall Length — mm (OAL) | 133.0 mm |
| Flute Length — in (LCF) | 3.4252" |
| Flute Length — mm (LCF) | 87.0 mm |
| Length × Diameter Ratio | 4 |
| Connection Dia. — in (DCON) | 0.3937" |
| Connection Dia. — mm (DCON) | 10.0 mm |
| Drill Point Angle (SIG) | 118° |
| Threading | |
| Thread Diameter Size (TDZ) | M5 |
| Tool Information | |
| Shank | Cylindrical shank |
| Direction of Tool | Right |
| Standard | DIN 8374 |
| Reference Numbers | |
| EDP Number | 34330 |
| EAN | 7320760034330 |
