SKU DOR5970249
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.96 CAD - $94.96 CAD
$94.96 CAD
$94.96 CAD - $94.96 CAD
$94.96 CAD

Sold in packs of: 1

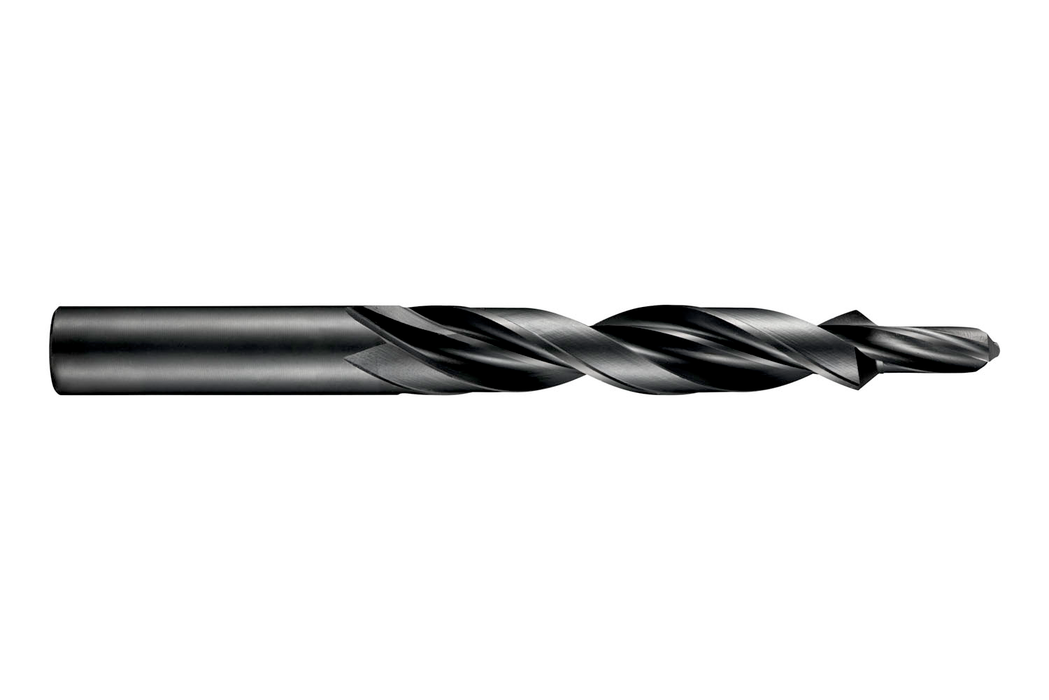

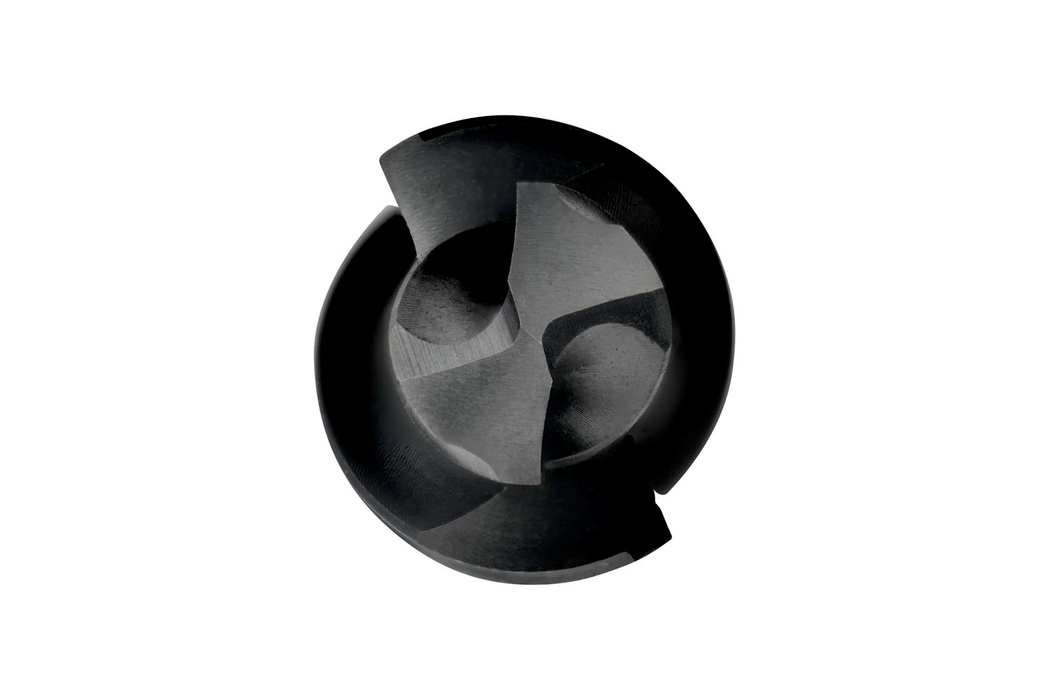

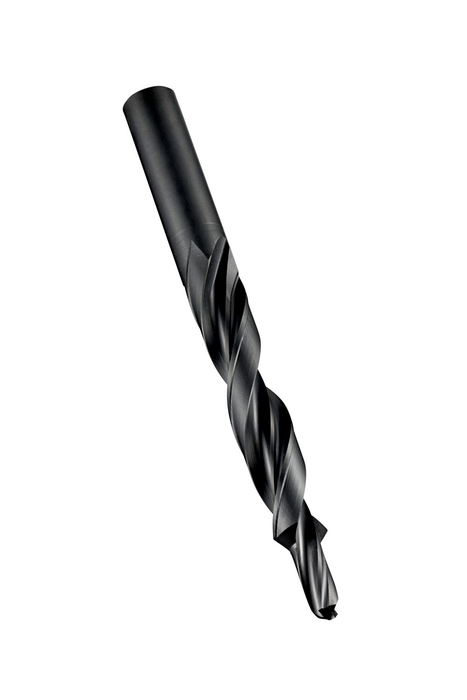

Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 6.40mm with a length of 15.00mm, a large diameter of 11.50mm and an overall length of 142mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A400M6
GradeSteam Tempered
Product Number5970249
Product FamilyA400

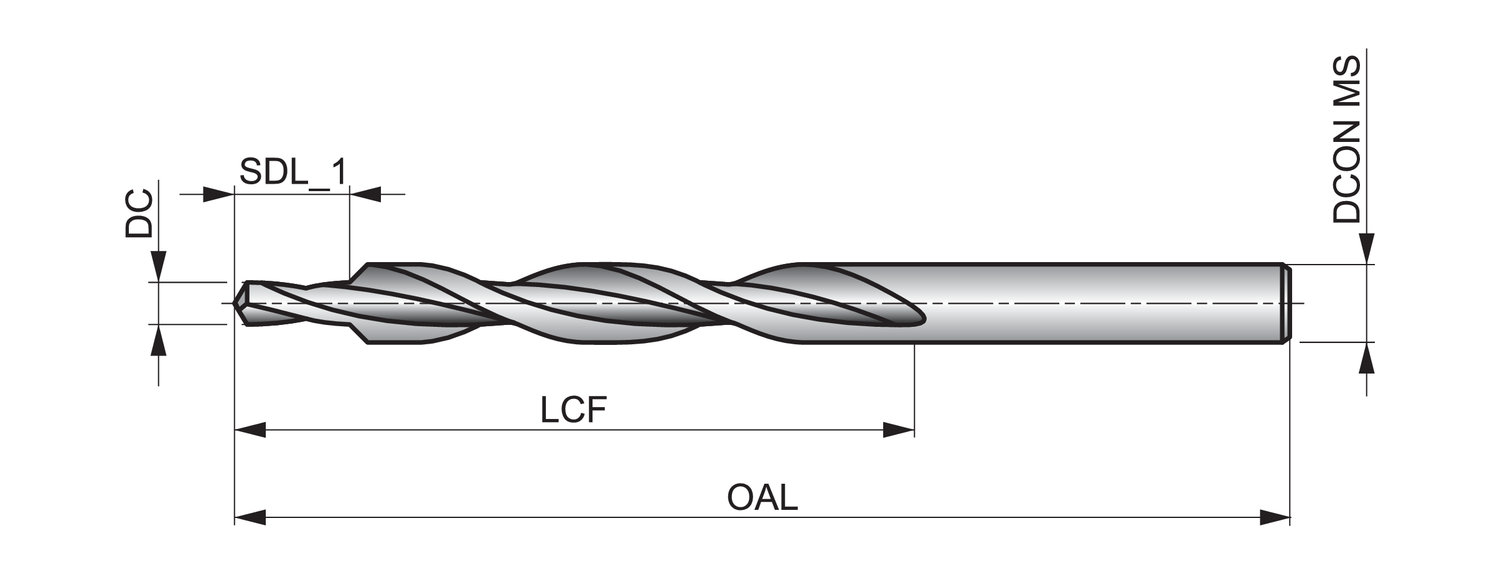

Dimensions
Cutting Diameter — in (DC)0.252"
Cutting Diameter — mm (DC)6.4 mm
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4528"
Connection Dia. — mm (DCON)11.5 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M6
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8374
Reference Numbers
EDP Number34347
EAN7320760034347
File Type Download
A400M6 — 3D Model STP Download
A400M6 — Line Drawing PDF Download
