A402M10

A402M10

SKU DOR5970272
by Dormer Pramet
Primary Use: Possible Use:

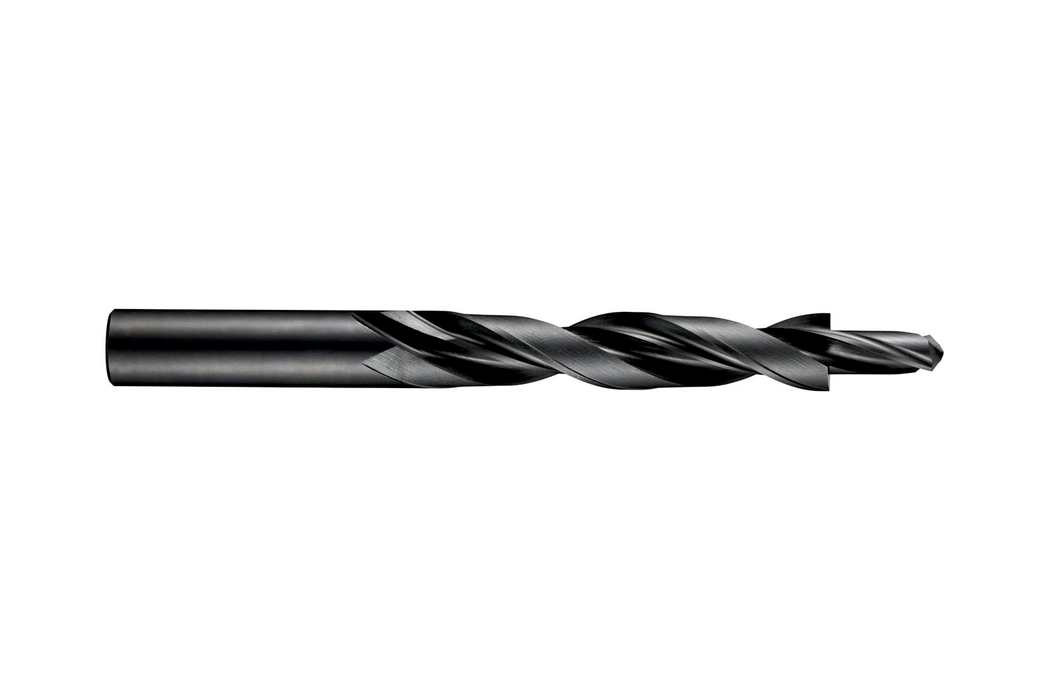

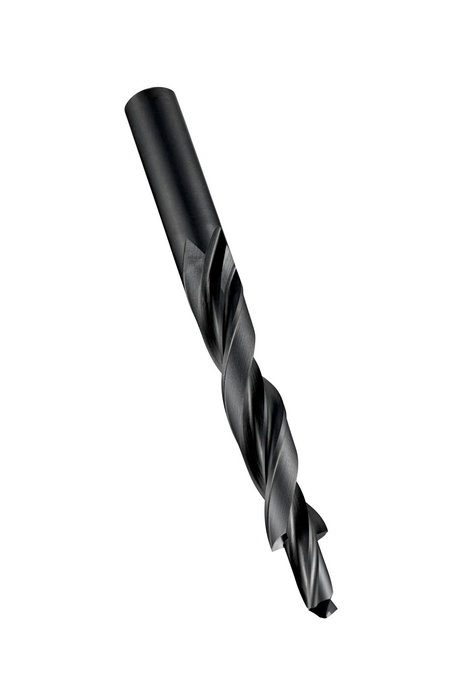

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 18.00mm and an overall length of 191mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M10 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$226.17 - $226.17
$226.17
$226.17 - $226.17
$226.17
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

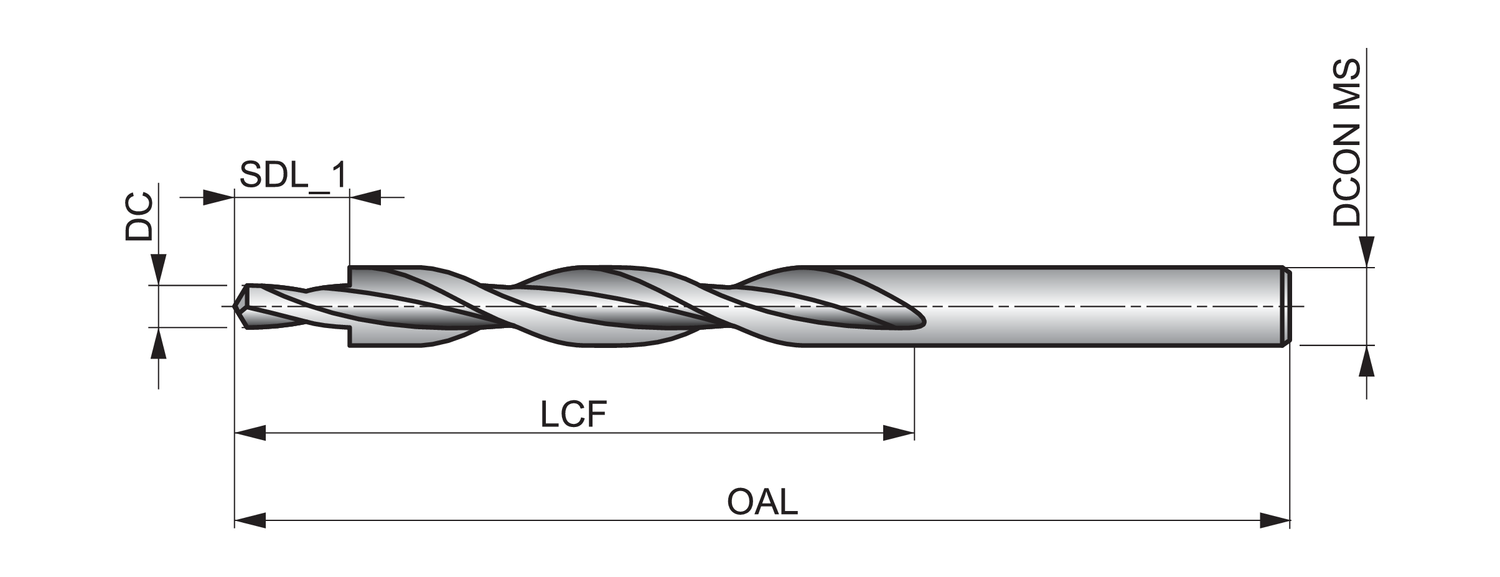

Material: HSS

Cutting Diameter - in (DC): 0.4331

Cutting Diameter - mm (DC): 11.0

Drill Point Angle - deg: 118

Flute Length: 5.1181

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 7.5197

Connetion Diameter: 0.7087

Tool Direction: Right

Diameter Size: M10

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 34439

EAN: 7320760034439

MFG Part Number: 5970272
