A52027/64

A52027/64

SKU DOR5970274
by Dormer Pramet
Primary Use:

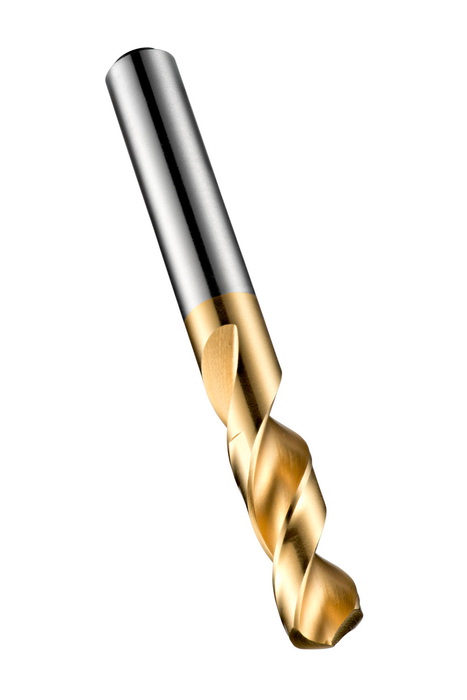

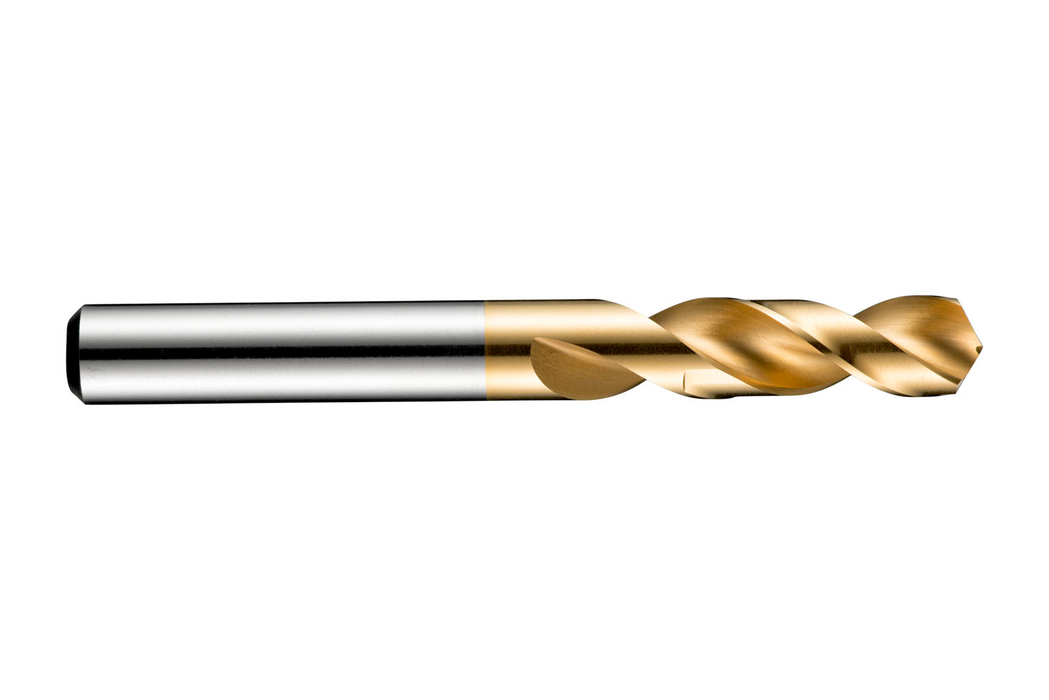

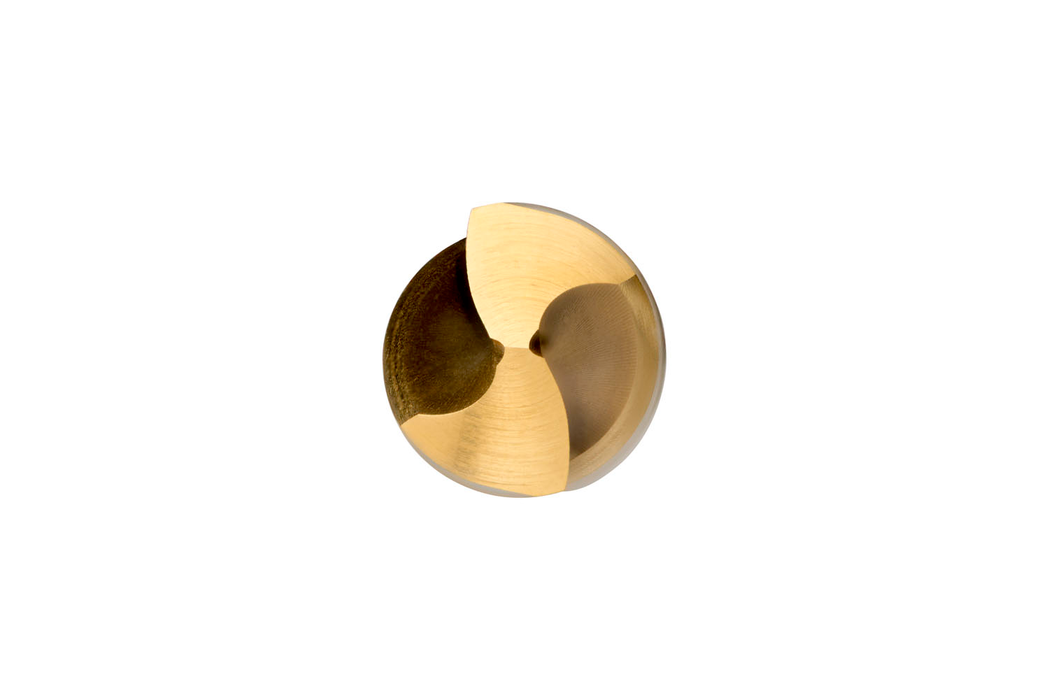

Stub length ADX drill with straight shank, diameter 0.4219" (27/64) with an overall length of 95mm and flute length of 47mm according to DIN 1897 standard with 130° volute point, HSS with TiN coating for 2.5xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$98.43 - $98.43
$98.43
$98.43 - $98.43
$98.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

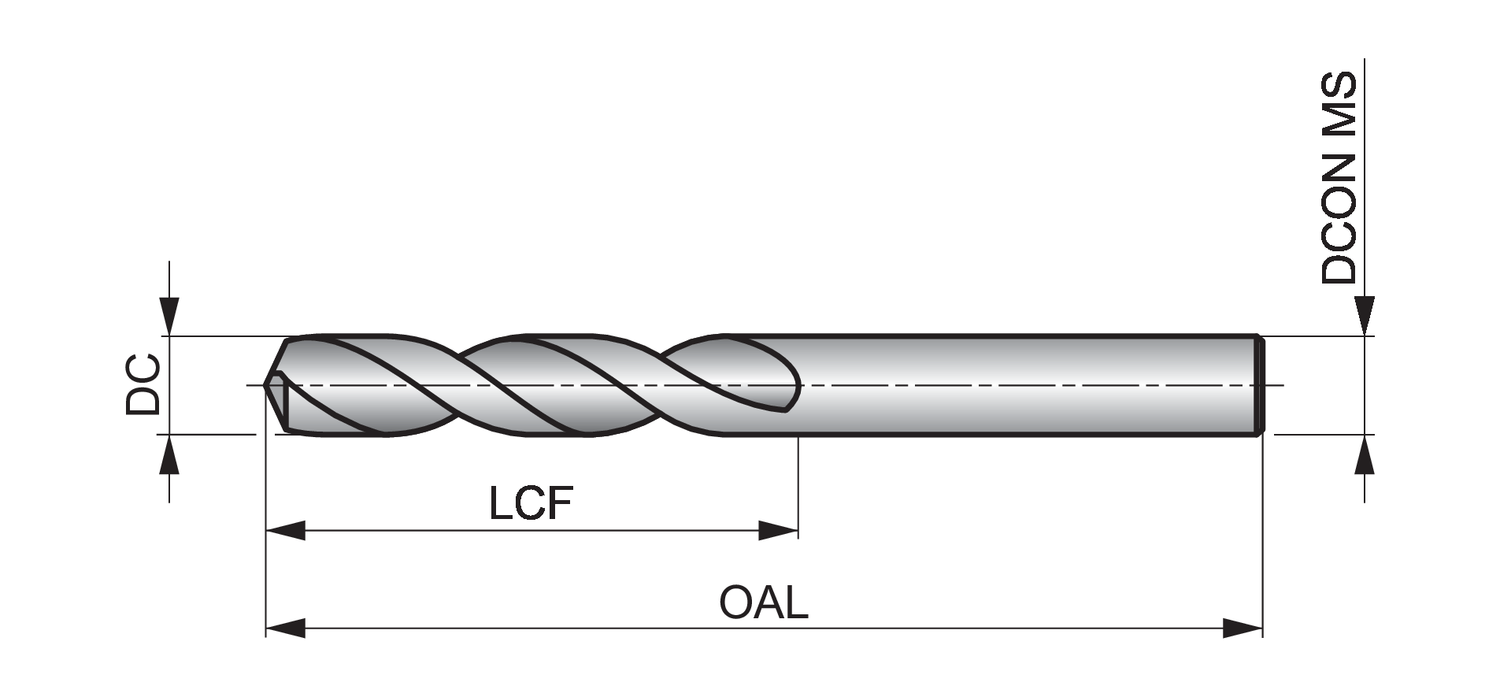

Cutting Diameter - in (DC): 0.4219

Cutting Diameter - mm (DC): 10.72

Drill Point Angle - deg: 130

Flute Length: 1.8504

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.7402

Connetion Diameter: 0.422

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 27/64

Grade: TiN

EDP: 171455

EAN: 7320760171455

MFG Part Number: 5970274
