A402M4
A402M4
A402M4

A402M4

SKU DOR5970283
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.03 CAD - $62.03 CAD
$62.03 CAD
$62.03 CAD - $62.03 CAD
$62.03 CAD

Sold in packs of: 1

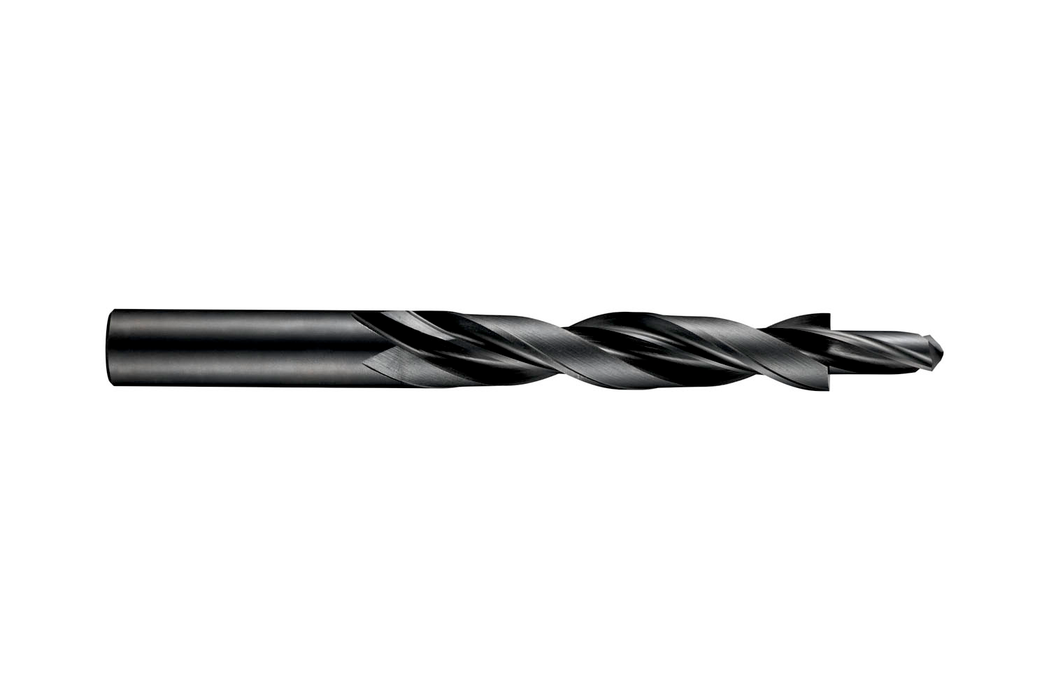

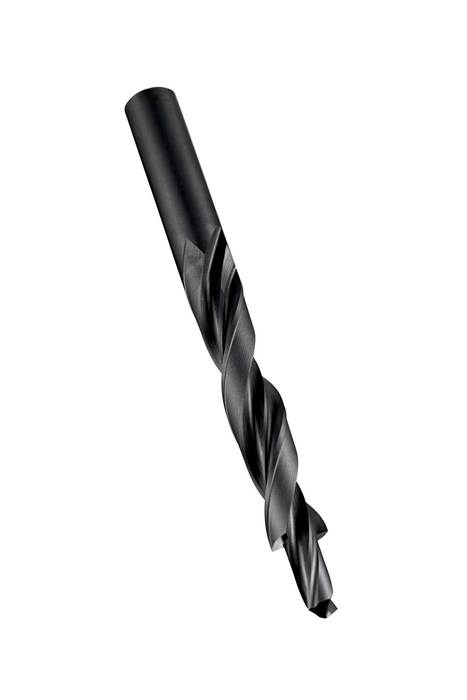

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 4.50mm with a length of 11.00mm, a large diameter of 8.00mm and an overall length of 117mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M4 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M4
GradeSteam Tempered
Product Number5970283
Product FamilyA402

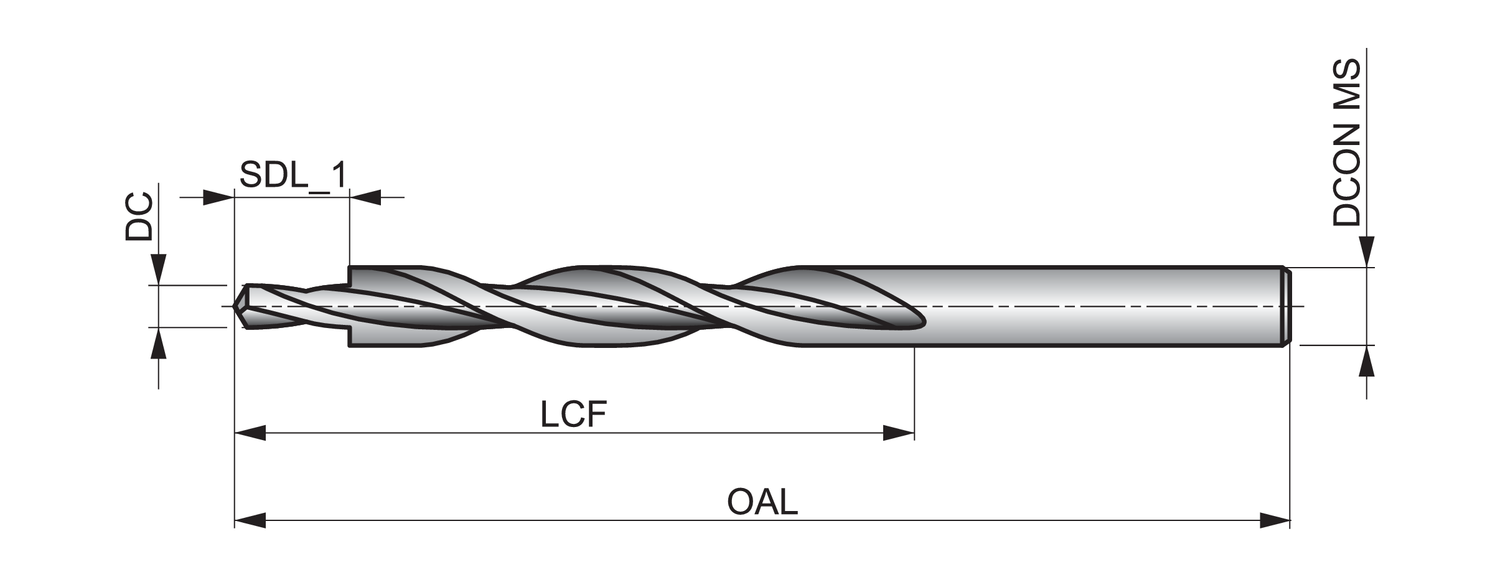

Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M4
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8376
Reference Numbers
EDP Number34453
EAN7320760034453
File Type Download
A402M4 — 3D Model STP Download
A402M4 — Line Drawing PDF Download
