A402M5

A402M5

SKU DOR5970287
by Dormer Pramet
Primary Use: Possible Use:

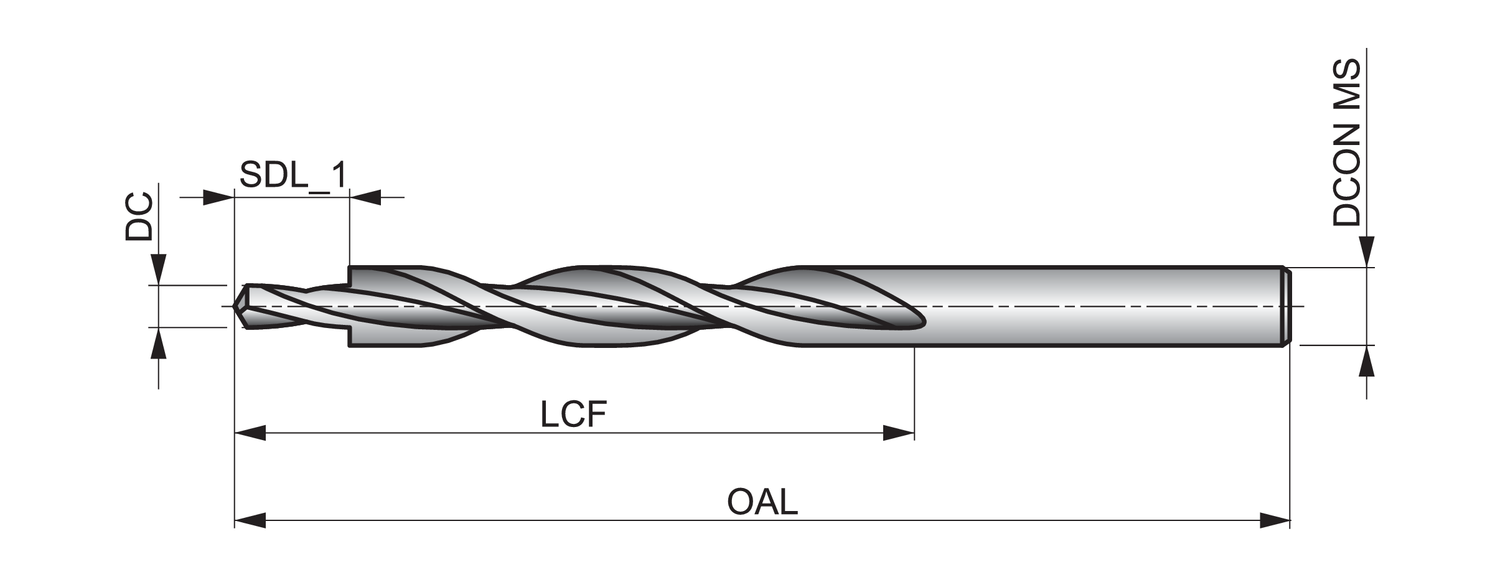

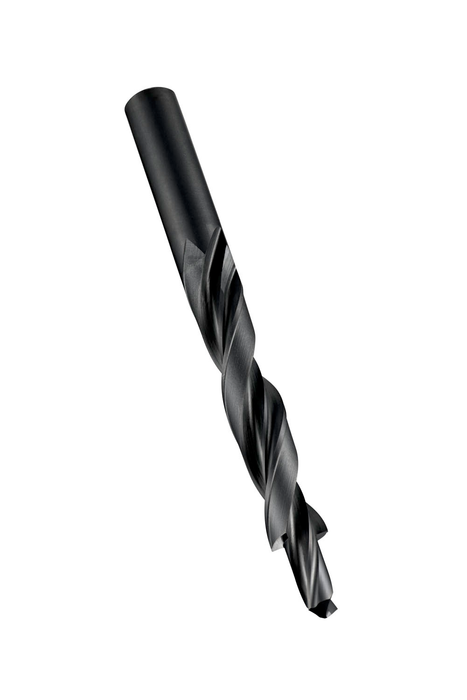

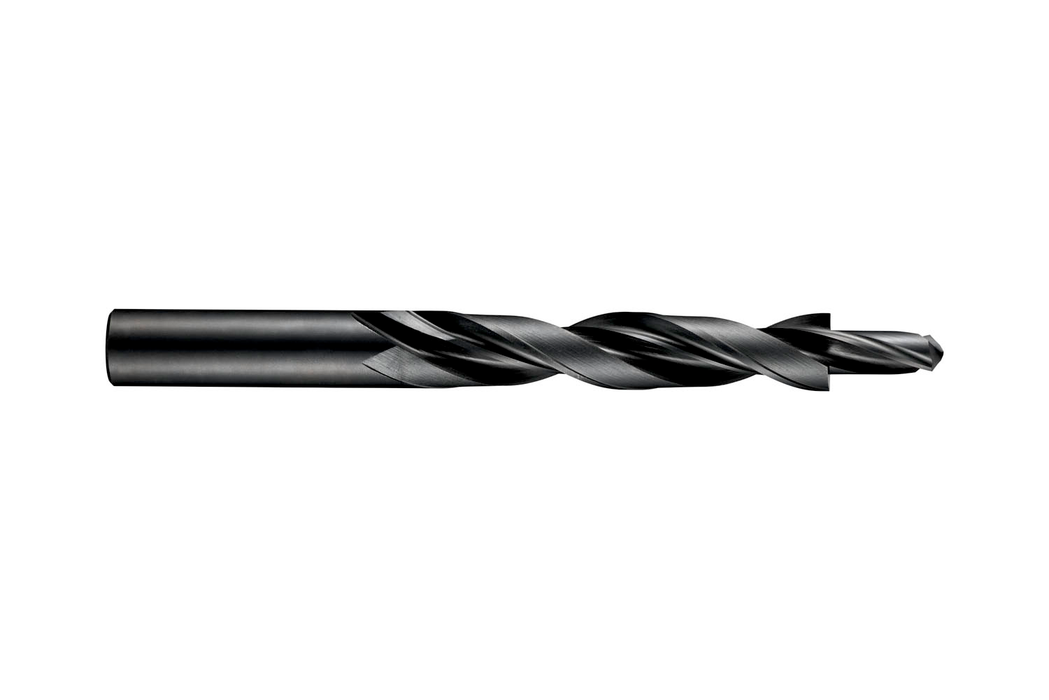

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 5.50mm with a length of 13.00mm, a large diameter of 10.00mm and an overall length of 133mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M5 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$74.91 - $74.91
$74.91
$74.91 - $74.91
$74.91
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2165

Cutting Diameter - mm (DC): 5.5

Drill Point Angle - deg: 118

Flute Length: 3.4252

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 5.2362

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: M5

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 34460

EAN: 7320760034460

MFG Part Number: 5970287
