A402M6
A402M6
A402M6

A402M6

SKU DOR5970291
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.36 CAD - $86.36 CAD
$86.36 CAD
$86.36 CAD - $86.36 CAD
$86.36 CAD

Sold in packs of: 1

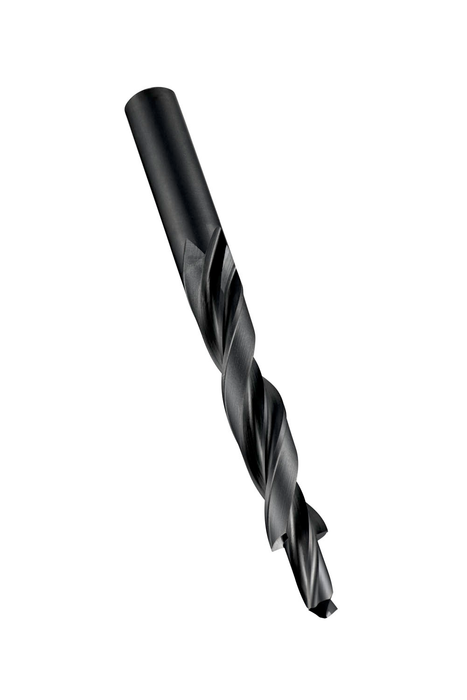

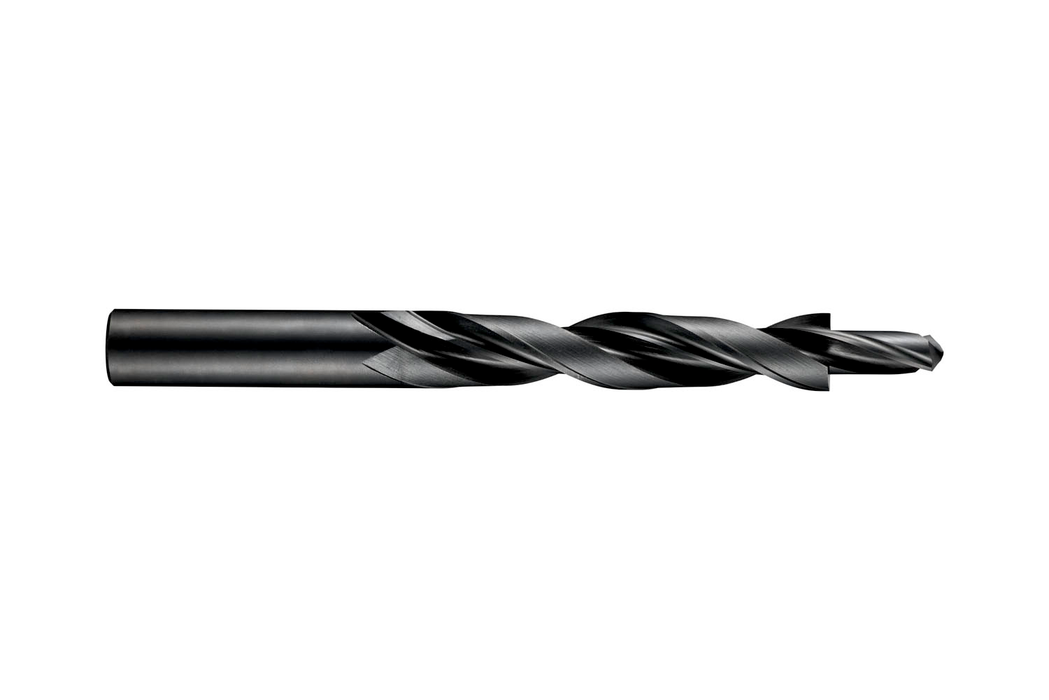

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 6.60mm with a length of 15.00mm, a large diameter of 11.00mm and an overall length of 142mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M6 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M6
GradeSteam Tempered
Product Number5970291
Product FamilyA402

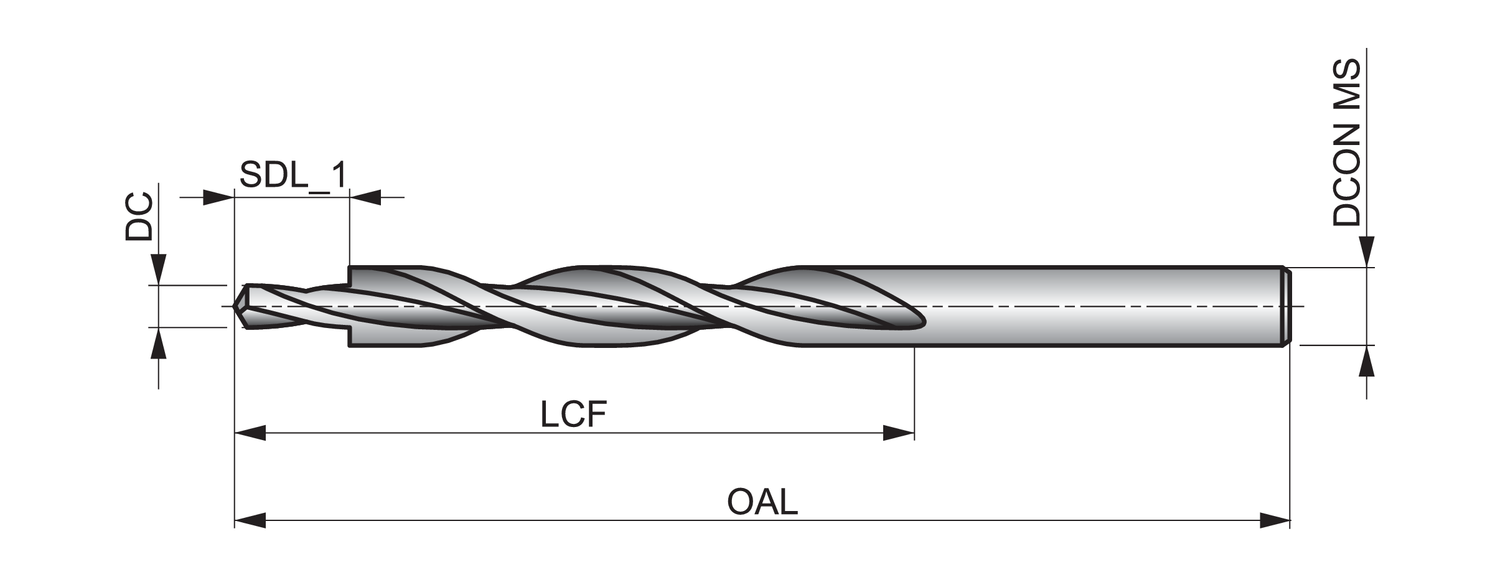

Dimensions
Cutting Diameter — in (DC)0.2598"
Cutting Diameter — mm (DC)6.6 mm
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M6
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8376
Reference Numbers
EDP Number34477
EAN7320760034477
File Type Download
A402M6 — 3D Model STP Download
A402M6 — Line Drawing PDF Download
