A402M8

SKU DOR5970296
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $125.49 CAD - Original price $125.49 CAD
Original price
$125.49 CAD
$125.49 CAD - $125.49 CAD
Current price $125.49 CAD

Sold in packs of: 1

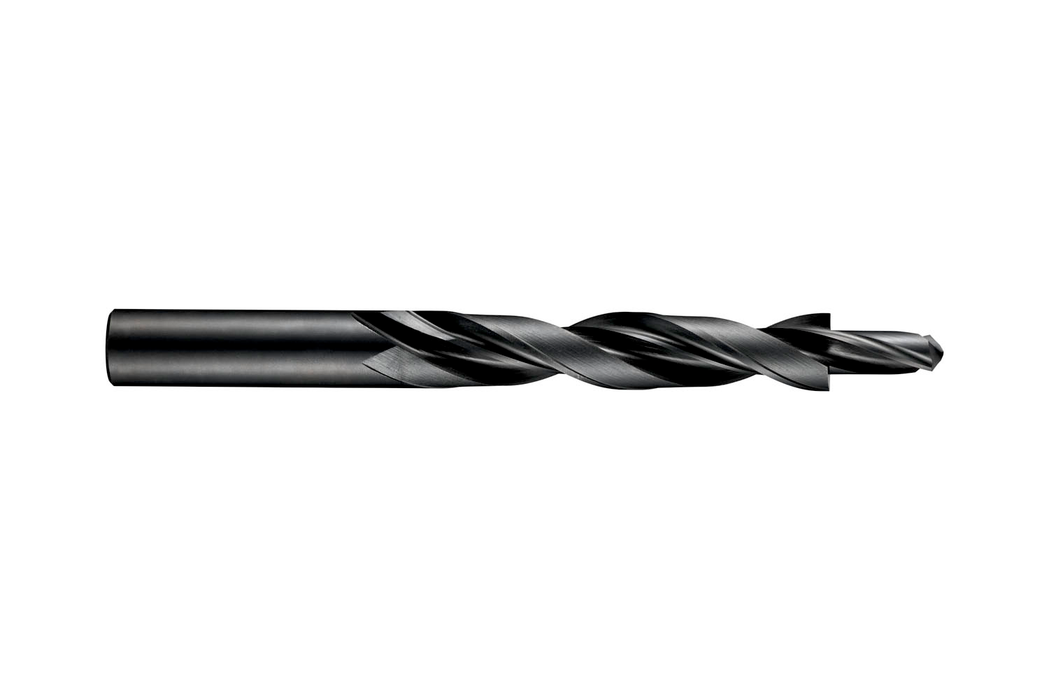

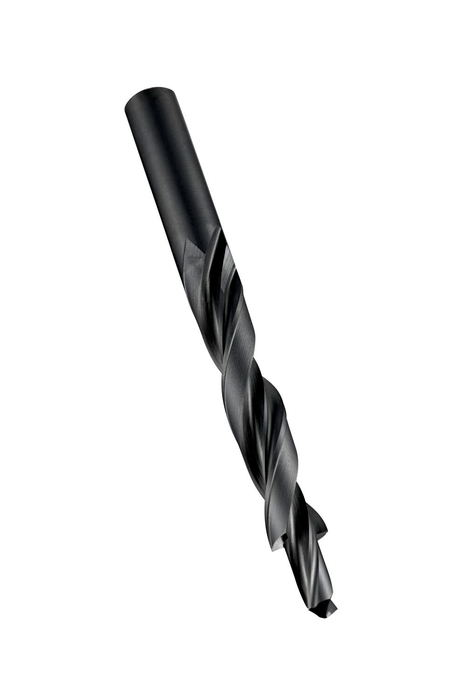

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 9.00mm with a length of 19.00mm, a large diameter of 15.00mm and an overall length of 169mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M8 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M8
GradeSteam Tempered
Product Number5970296
Product FamilyA402

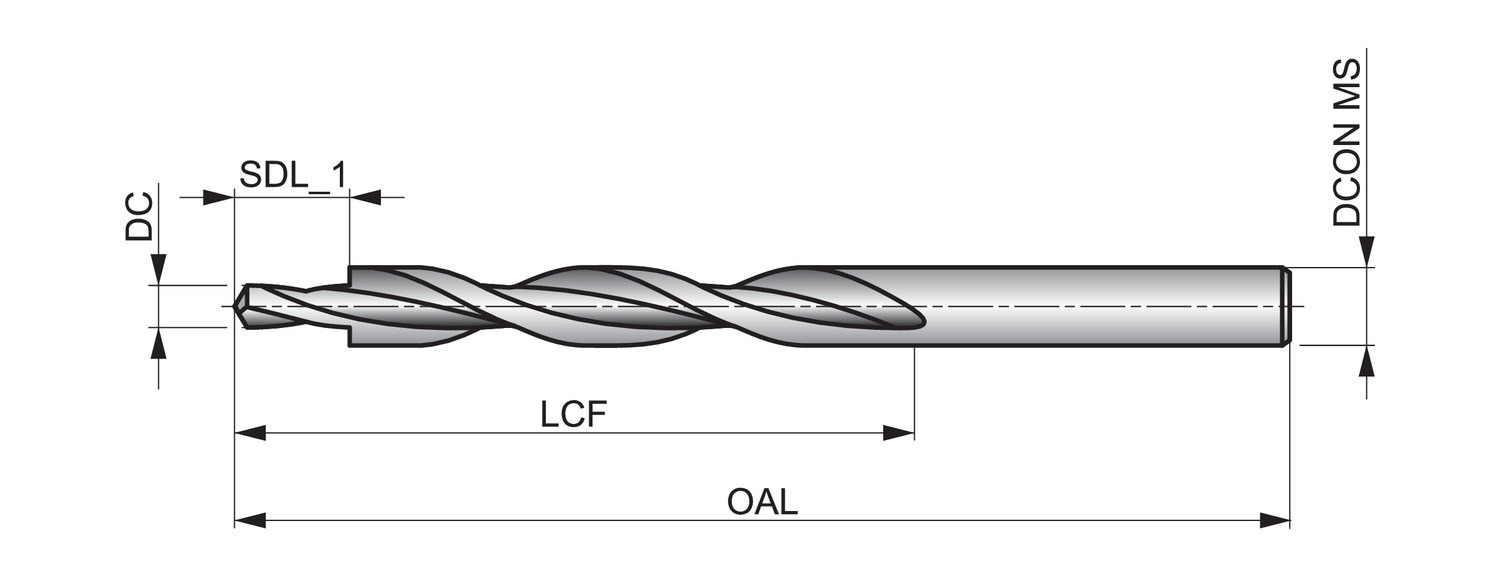

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)6.6535"
Overall Length — mm (OAL)169.0 mm
Flute Length — in (LCF)4.4882"
Flute Length — mm (LCF)114.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5906"
Connection Dia. — mm (DCON)15.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M8
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8376
Reference Numbers
EDP Number34484
EAN7320760034484
File Type Download
A402M8 — 3D Model STP Download
A402M8 — Line Drawing PDF Download
