A412M10

A412M10

SKU DOR5970338
by Dormer Pramet
Primary Use: Possible Use:

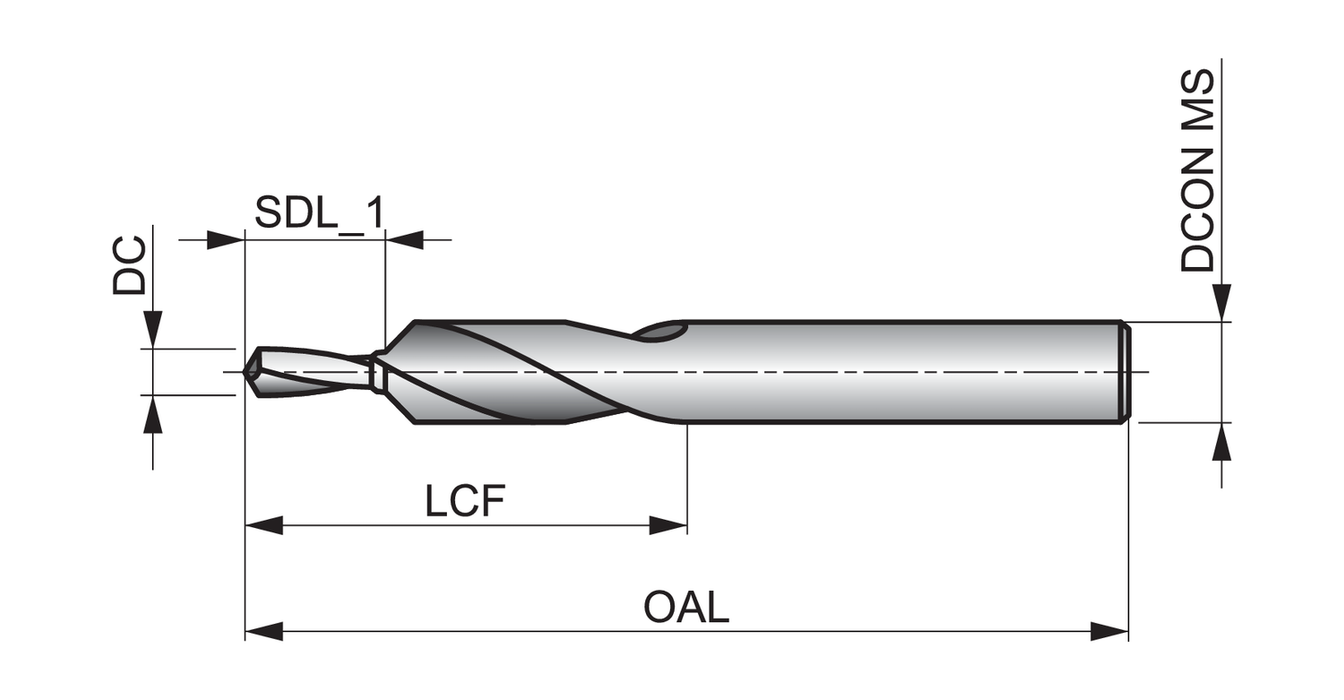

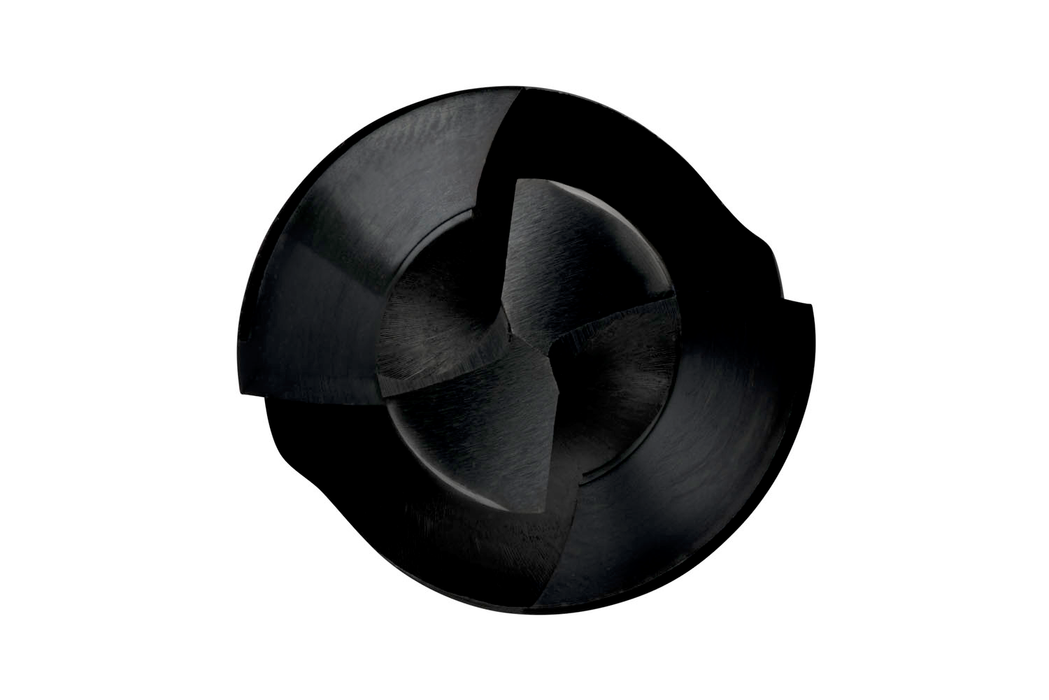

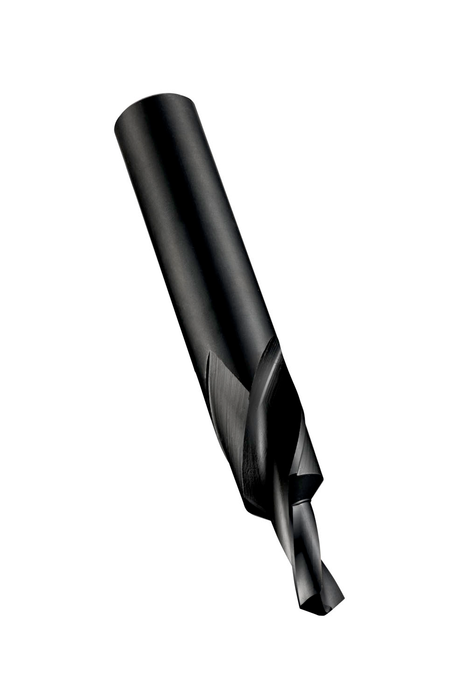

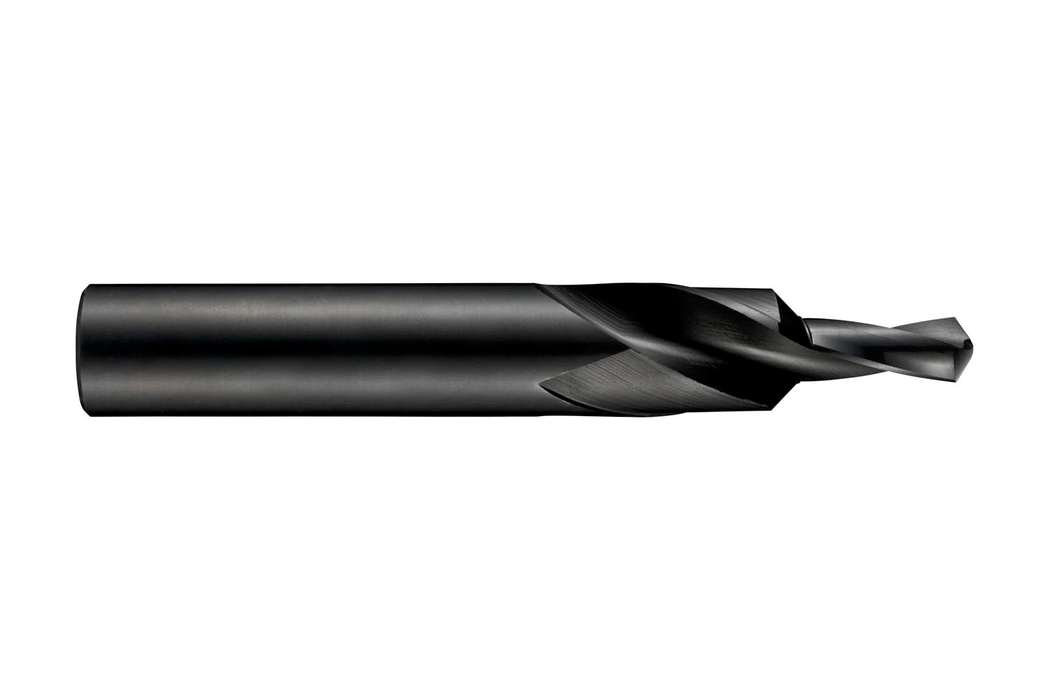

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 21.50mm and an overall length of 141mm, according to DORMER standard to produce a medium fit through hole and conical seat for M10 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$116.90 - $116.90
$116.90
$116.90 - $116.90
$116.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.4331

Cutting Diameter - mm (DC): 11.0

Drill Point Angle - deg: 118

Flute Length: 2.7559

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.5512

Connetion Diameter: 0.8465

Tool Direction: Right

Diameter Size: M10

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 213698

EAN: 7320760213698

MFG Part Number: 5970338
