A412M3

A412M3

SKU DOR5970341
by Dormer Pramet
Primary Use: Possible Use:

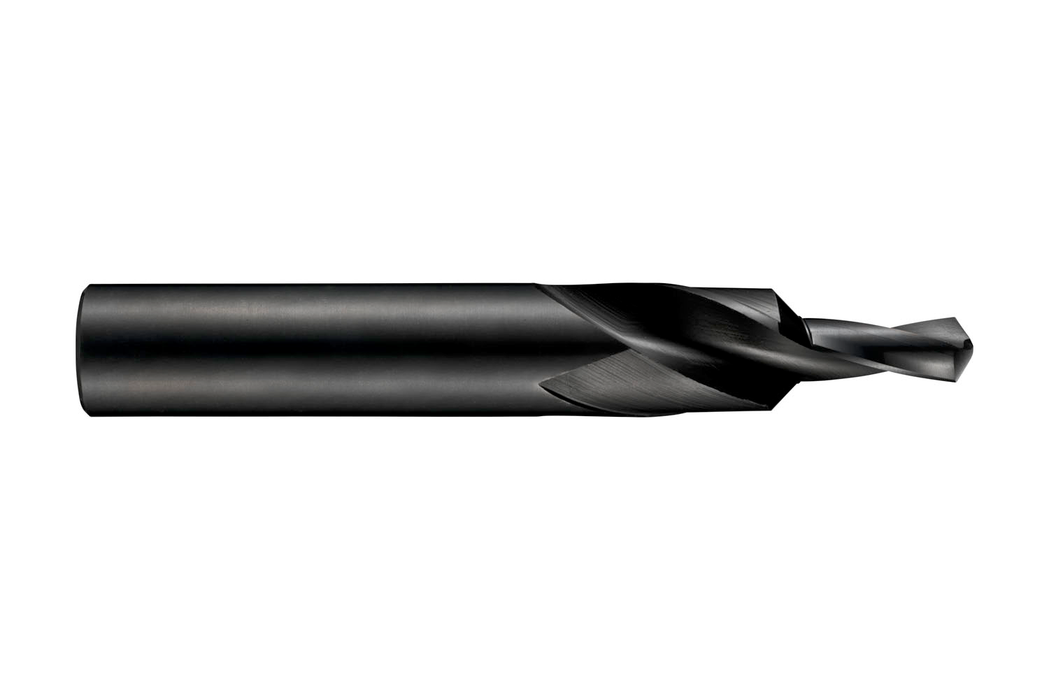

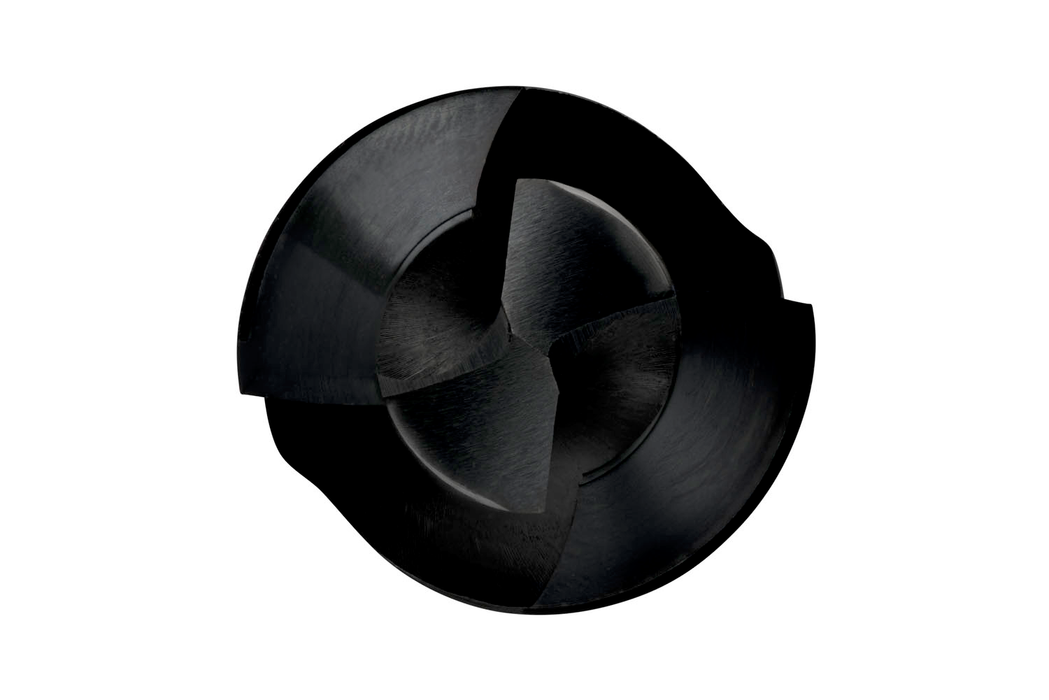

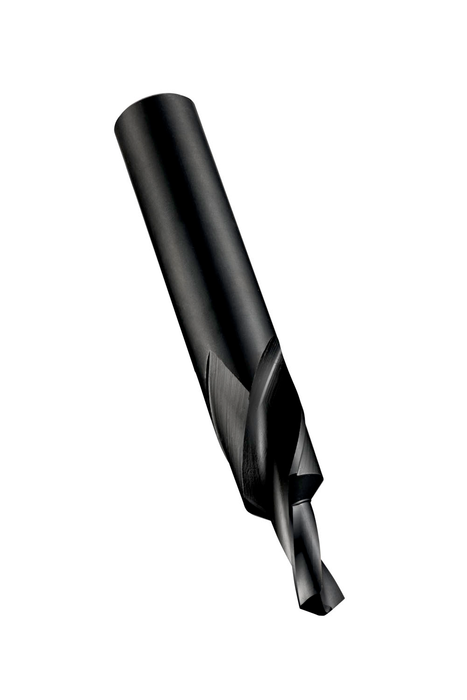

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 3.40mm with a length of 9.00mm, a large diameter of 6.60mm and an overall length of 70mm, according to DORMER standard to produce a medium fit through hole and conical seat for M3 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$39.74 - $39.74
$39.74
$39.74 - $39.74
$39.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

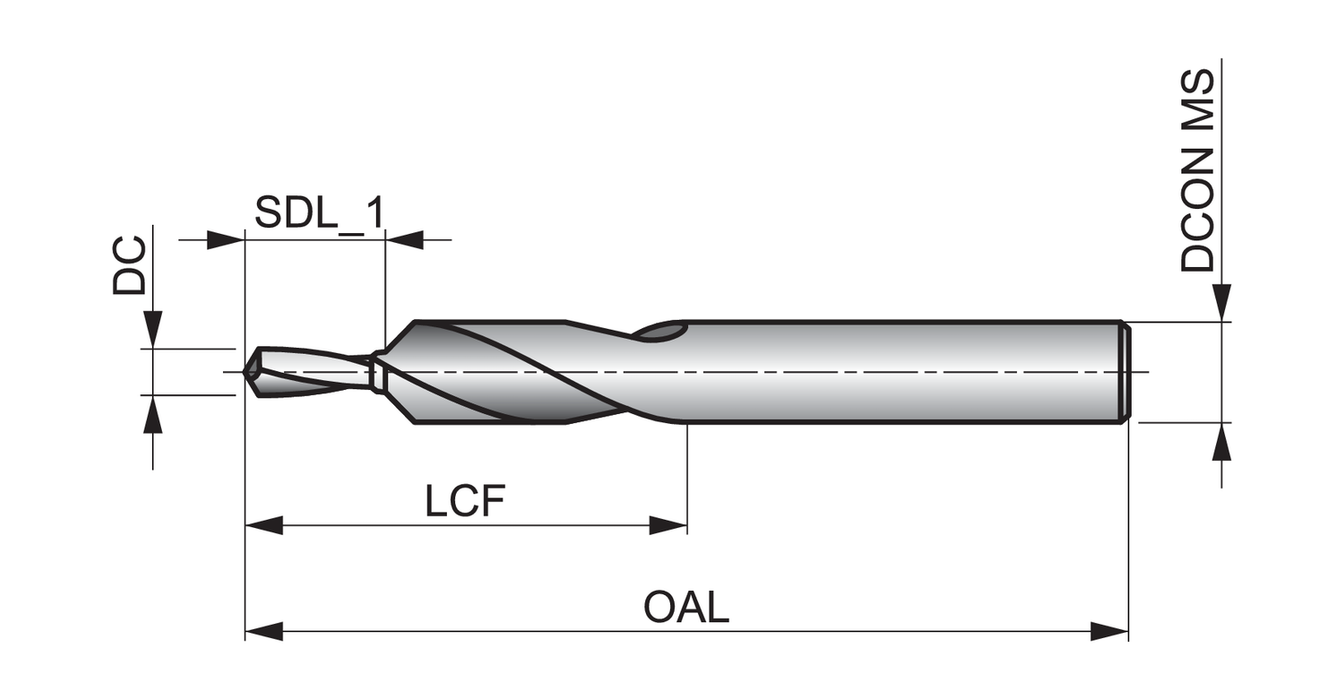

Cutting Diameter - in (DC): 0.1339

Cutting Diameter - mm (DC): 3.4

Drill Point Angle - deg: 118

Flute Length: 1.2205

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.7559

Connetion Diameter: 0.2598

Tool Direction: Right

Diameter Size: M3

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 213643

EAN: 7320760213643

MFG Part Number: 5970341
