A412M4
A412M4
A412M4
A412M4

A412M4

SKU DOR5970344
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.24 CAD - $47.24 CAD
$47.24 CAD
$47.24 CAD - $47.24 CAD
$47.24 CAD

Sold in packs of: 1

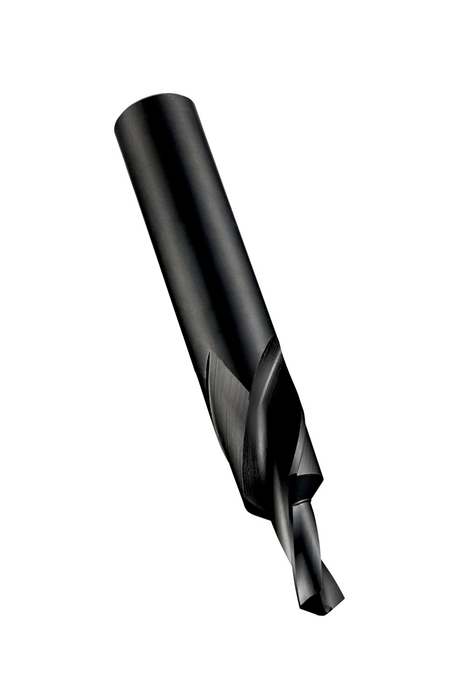

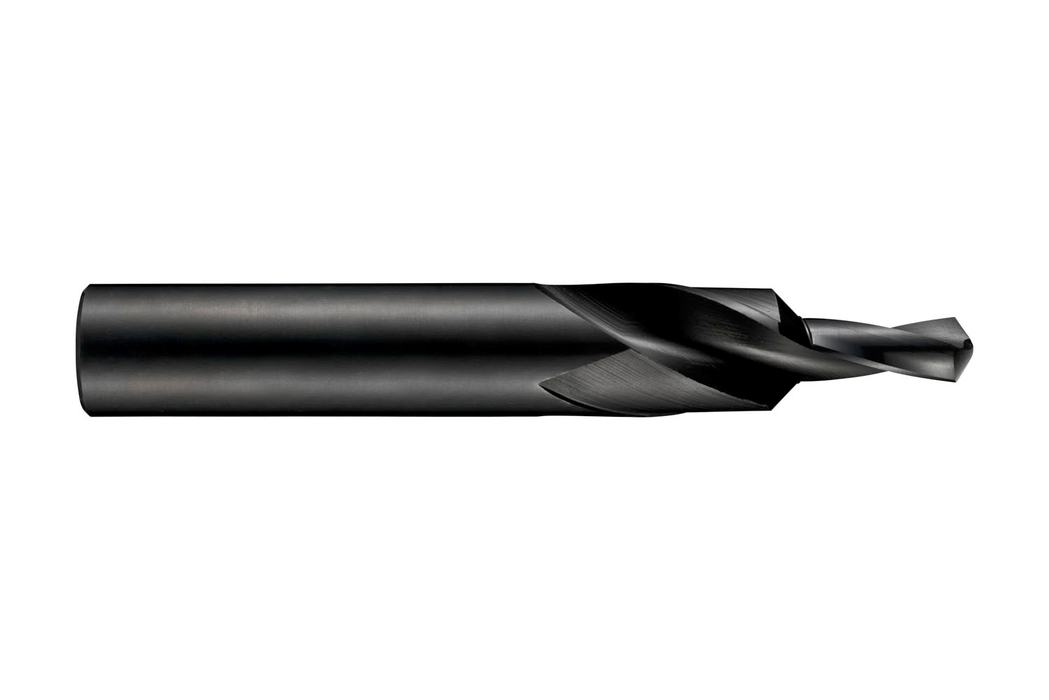

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 4.50mm with a length of 11.00mm, a large diameter of 9.00mm and an overall length of 84mm, according to DORMER standard to produce a medium fit through hole and conical seat for M4 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A412M4
GradeSteam Tempered
Product Number5970344
Product FamilyA412

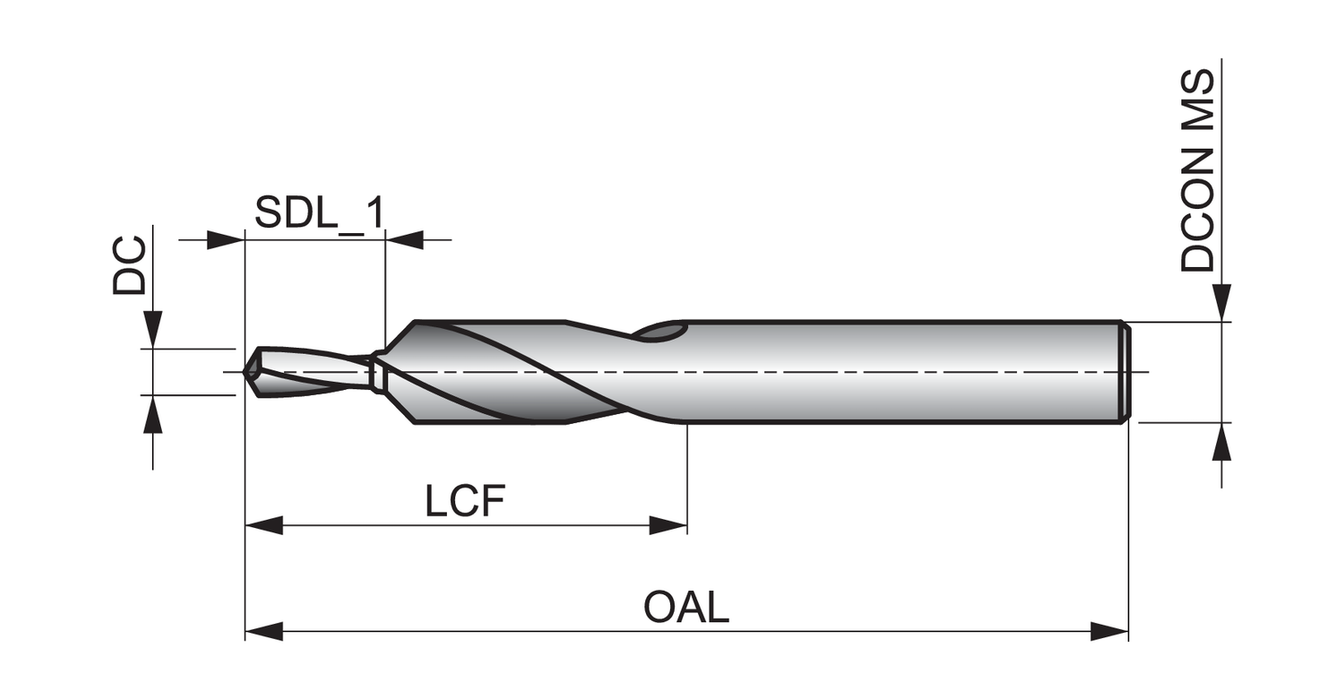

Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)3.3071"
Overall Length — mm (OAL)84.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M4
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number213650
EAN7320760213650
File Type Download
A412M4 — Line Drawing PDF Download
