A412M5
A412M5
A412M5
A412M5

A412M5

SKU DOR5970348
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.21 CAD - $58.21 CAD
$58.21 CAD
$58.21 CAD - $58.21 CAD
$58.21 CAD

Sold in packs of: 1

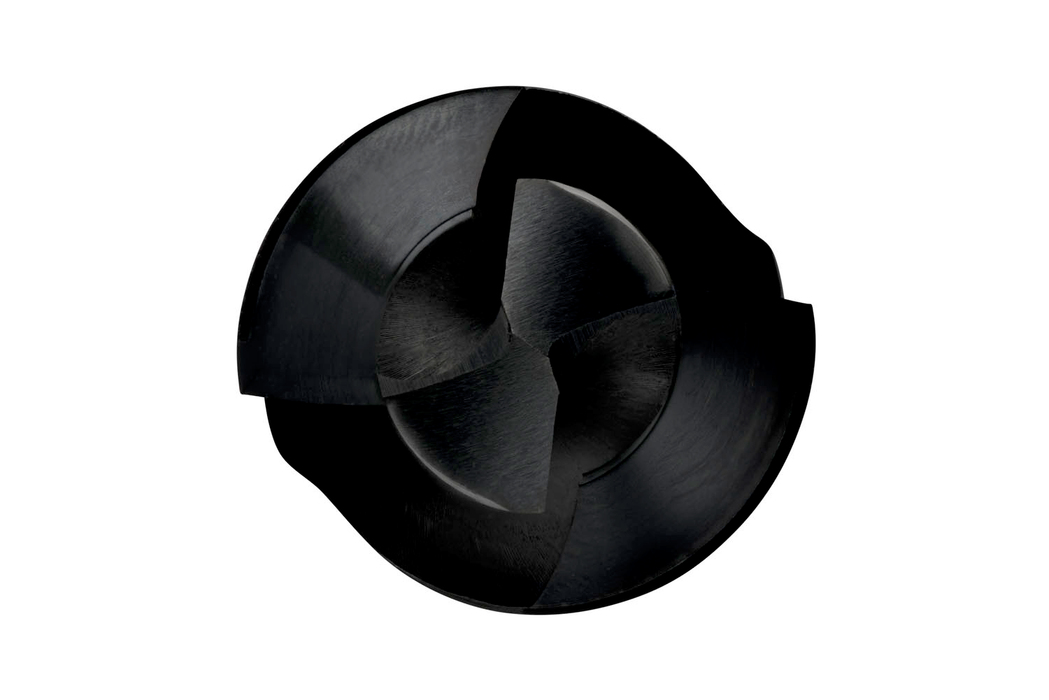

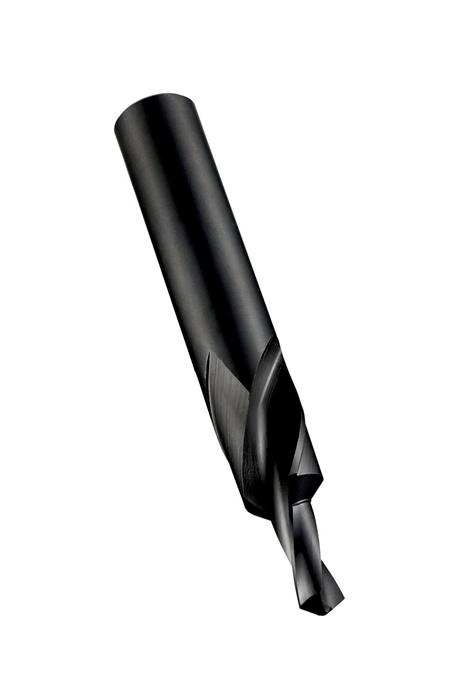

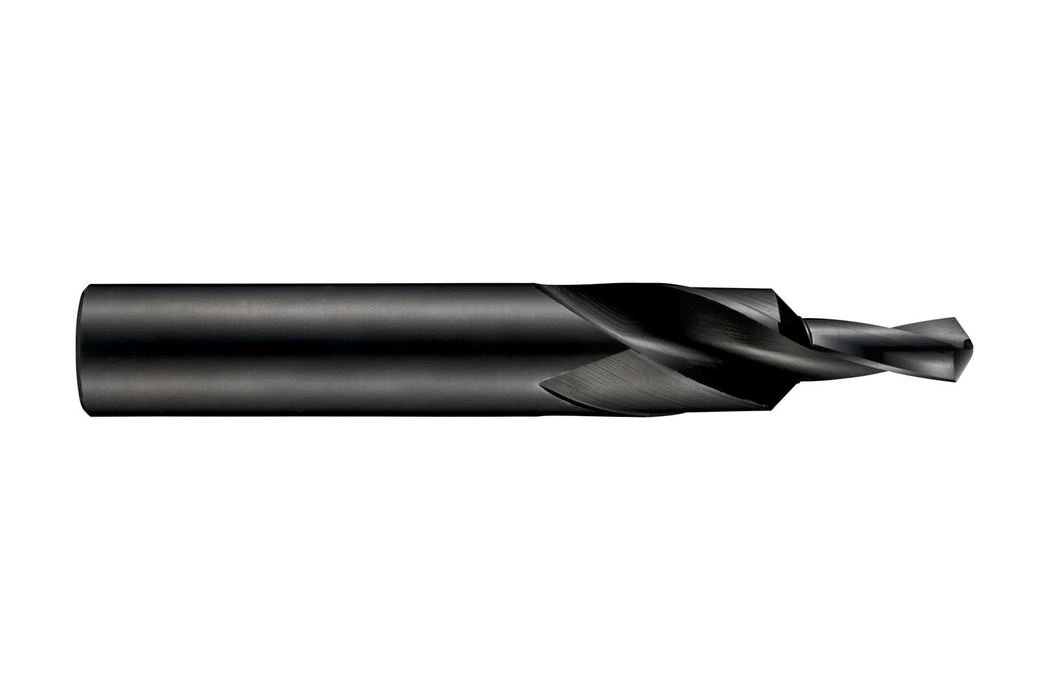

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 5.50mm with a length of 13.00mm, a large diameter of 11.00mm and an overall length of 95mm, according to DORMER standard to produce a medium fit through hole and conical seat for M5 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A412M5
GradeSteam Tempered
Product Number5970348
Product FamilyA412

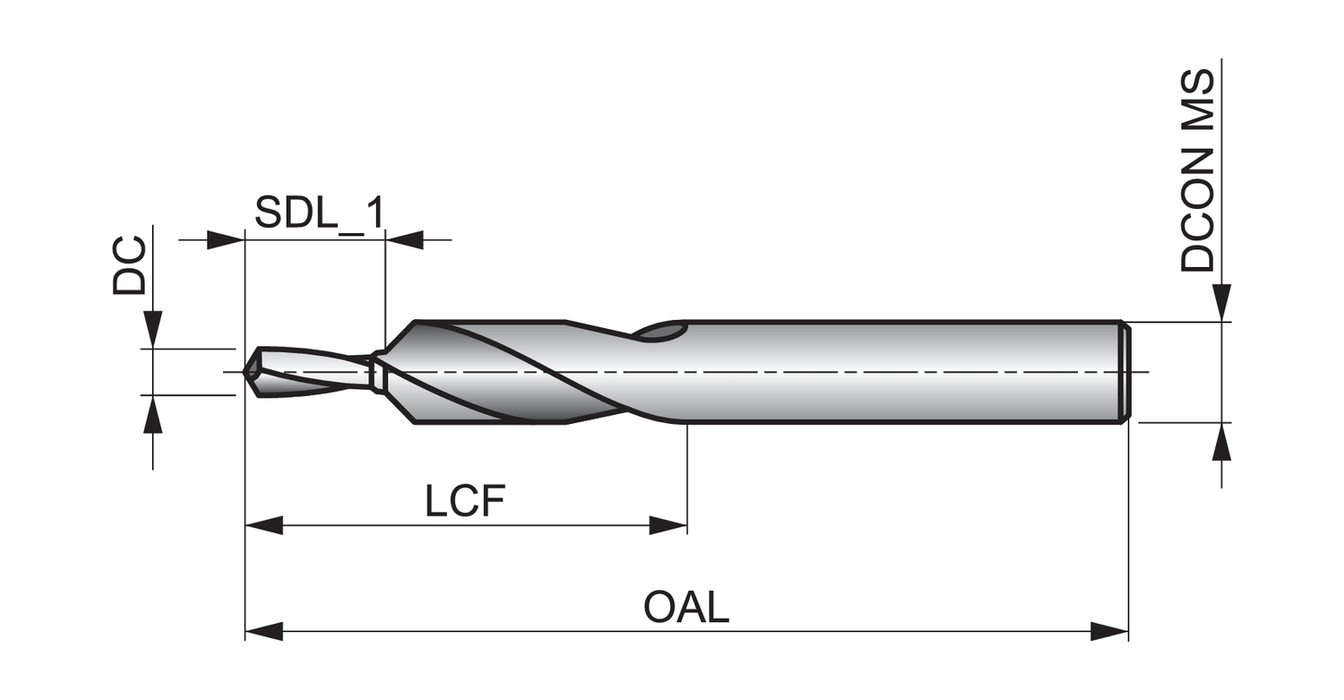

Dimensions
Cutting Diameter — in (DC)0.2165"
Cutting Diameter — mm (DC)5.5 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M5
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number213667
EAN7320760213667
File Type Download
A412M5 — Line Drawing PDF Download
