SKU DOR5970356
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.79 CAD - $108.79 CAD
$108.79 CAD
$108.79 CAD - $108.79 CAD
$108.79 CAD

Sold in packs of: 1

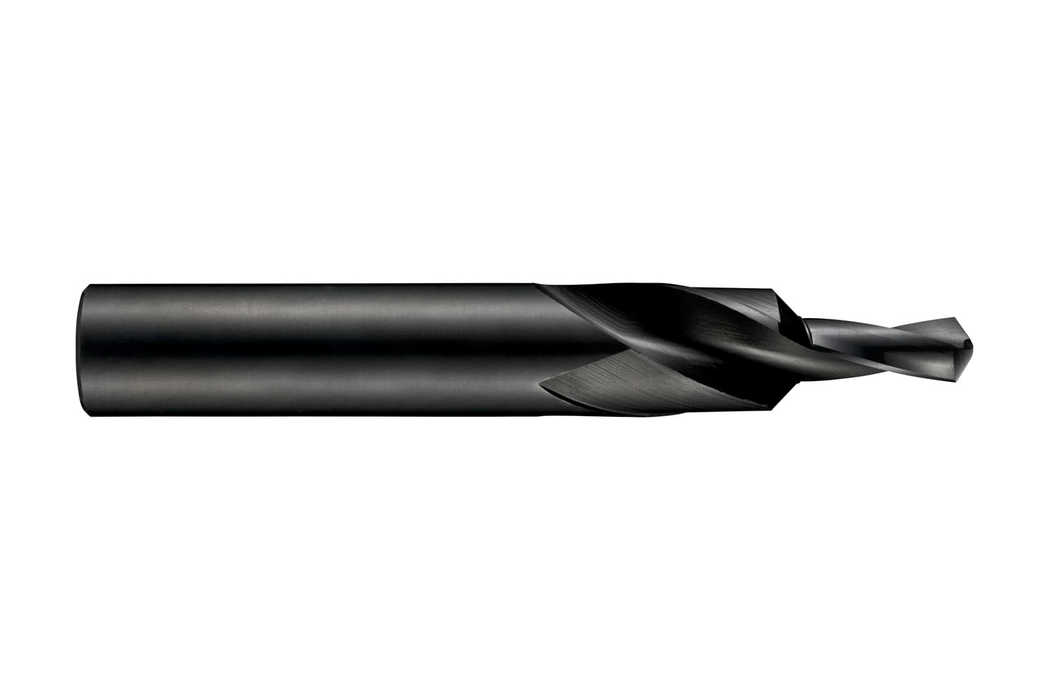

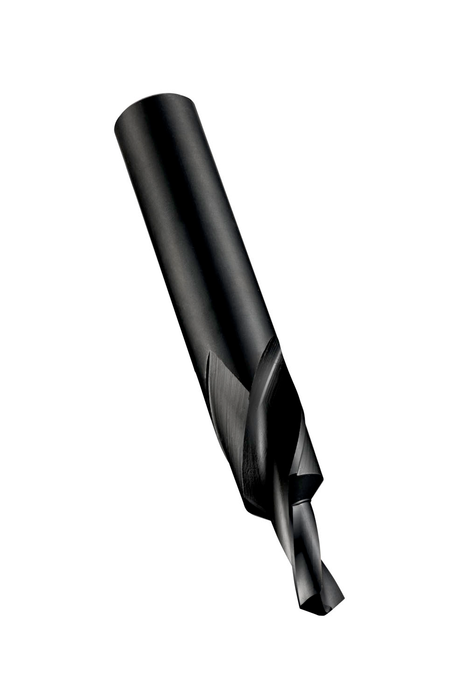

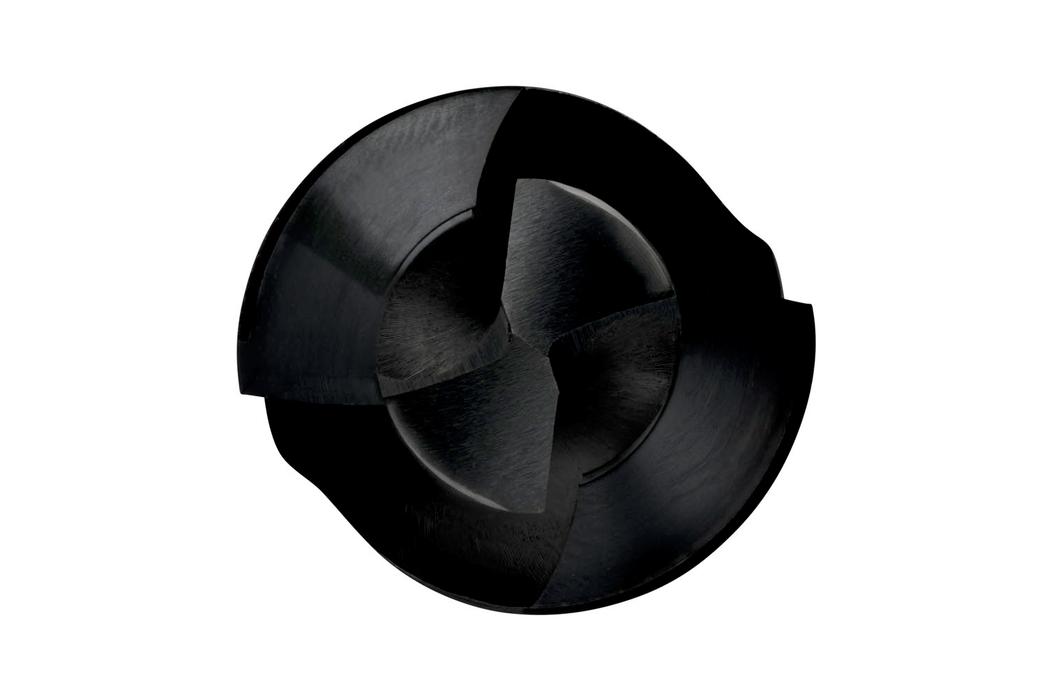

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 9.00mm with a length of 19.00mm, a large diameter of 17.20mm and an overall length of 123mm, according to DORMER standard to produce a medium fit through hole and conical seat for M8 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A412M8
GradeSteam Tempered
Product Number5970356
Product FamilyA412

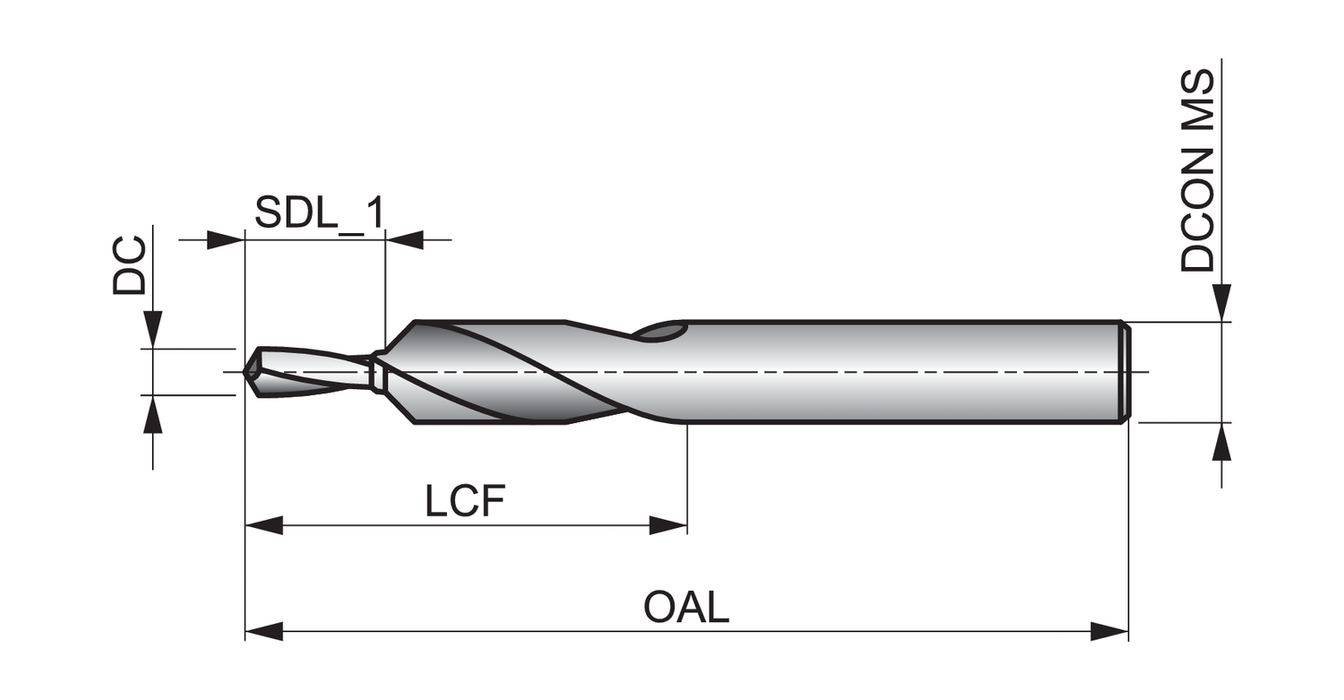

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Flute Length — in (LCF)2.4409"
Flute Length — mm (LCF)62.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.6772"
Connection Dia. — mm (DCON)17.2 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M8
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number213681
EAN7320760213681
File Type Download
A412M8 — Line Drawing PDF Download
